Summary of Contents for Aerpro AVC7
-
Page 2: Table Of Contents

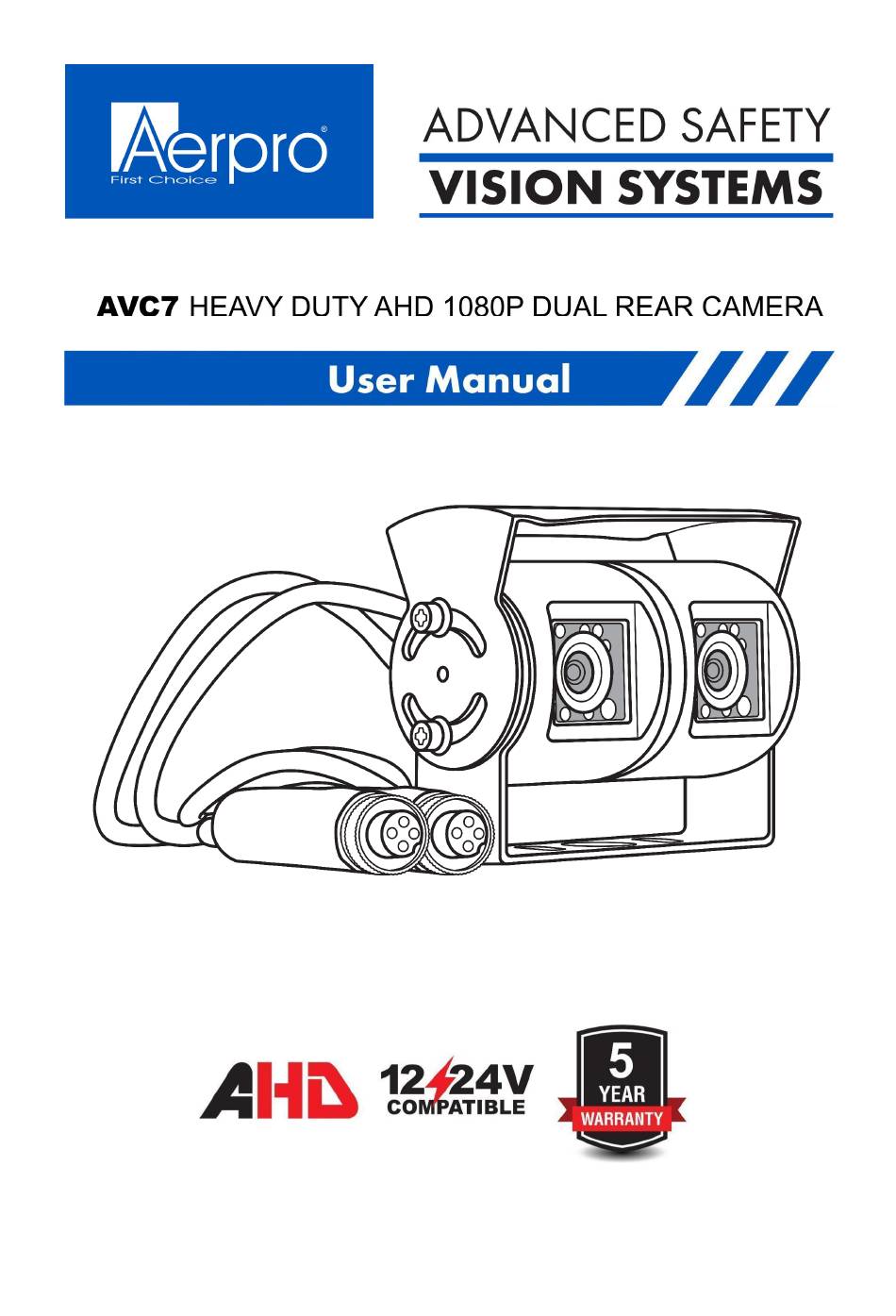

7. Technical Support …………………………………………………………. page 7 8. Warranty and Support …………………………………………….………. page 8 Thank you for choosing the Aerpro AVC7 Heavy Duty AHD 1080p Dual Rear Camera. Aerpro Advanced Safety Vision Cameras are engineered to enhance driving safety by providing clear, high-quality images of the surrounding environment. -
Page 3: Product Specifications
● Model Number: AVC7 ● Camera Type: Heavy Duty Dual Rear Camera (U-Bracket) ● Resolution: 1080p AHD (Analogue High Definition) ● Viewing Angle Degree: ○ CAM1: Horizontal 95°, Vertical 55°, Diagonal 110° ○ CAM2: Horizontal 85°, Vertical 48°, Diagonal 98°... -
Page 4: Camera Viewing Angle And Orientation
Camera Viewing Angle and Orientation ● The camera should be adjusted to provide a 95°/85° (H) viewing angle for optimal visibility. ● Avoid obstructions that may block the camera’s field of view. ● Route cables along the vehicle’s existing wire channels, where possible to, prevent damage. ●... -
Page 5: Wiring Instructions
Wiring Instructions 1. Connect the power cable to the vehicle's power system (12V or 24V DC). 2. Route the video cable to the dashboard monitor. Secure all connections and test the camera before finalizing installation. 4. Use cable clips to secure the wires and prevent loose connections. 5. -
Page 6: Troubleshooting
No night vision (Functions only at night) replacement Poor ground connection Ensure solid ground wiring If you need assistance setting up or using your Aerpro product now or in the future, call Aerpro Support Australia. TEL: 03 – 8587 8898... -
Page 7: Technical Support
Australian Consumer Law. TDJ Australia Pty Ltd (Aerpro) warrants that this product is free from defects in material and workmanship for a period of 5 years from the date of purchase. This warranty is only valid where you... -
Page 8: Warranty And Support
TDJ Australia Pty Ltd (Aerpro) will repair, replace or refurbish the product at its discretion. The retailer will contact you when the product is ready for collection. All costs involved in claiming this warranty, including the cost of the retailer sending the product to TDJ Australia Pty Ltd (Aerpro), will be borne by you.
