  • Page 1 JUMA PA1000 Linear Amplifier User Manual JUMA PA1000 User Manual Version 1.64 update 2022-02-15 Page 1 of 23...

  • Page 2: Safety Warnings

    25W. It produces full-rated output of 1000W PEP with low input power, typically around 10W. The PA1000 is engineered to provide reliable use in normal amateur radio operation as rated using SSB and CW modes. A rugged, industrial-grade LDMOS RF power MOSFET is used. These devices have inherent high SWR tolerance but must be protected from overdrive and excessive input power.

  • Page 3: Precautions And Warnings

    This results from the inherent timing of ALC and compression circuits in the transceiver. You will achieve full- rated power output with nominal input power of 10W by selecting a suitable gain setting (G1-G8) in PA1000. In all cases, do not allow exciter drive power to exceed 25 watts.

  • Page 4: Simple User Interface

    Features • Nominal output power 1000W PEP – SSB and CW JUMA PA1000 is an ultra lightweight (just 5.5kg / 12 lb) solid state 1kW linear amplifier for HF and 6 meter • All HF bands including WARC bands and 50 MHz bands.

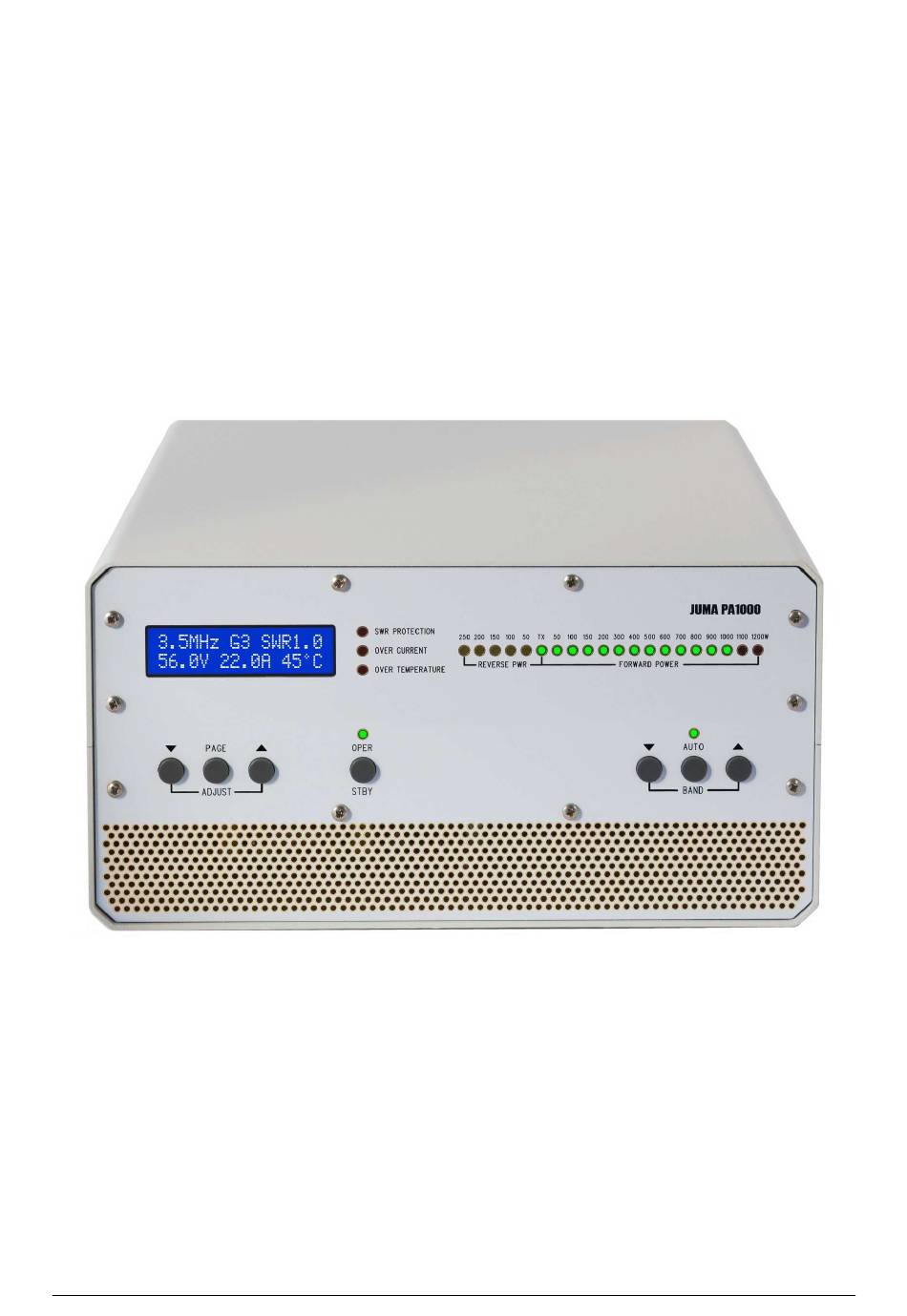

  • Page 5 JUMA PA1000 front panel Multi function Protection Reverse power Forward power display indicators LED bar LED bar TX ON LED Display page selection Operate/Standby Band selection and adjustments push button push buttons JUMA PA1000 rear panel BCD Band data in/out,...
  • Page 6 The gain can be set from G1 to G8 with a step of 1dB. Always start with G1 which is the lowest COM2 baud rate adjustment for remote control with gain by monitoring the power LED bar. PA1000 will the Windows remote application. remember the gain on each band.
  • Page 7 Service Pages so that PA1000 will remember OPER/STBY state for start-up and band change. See the details in Service Pages documentation. Note2. You can transmit 100W thru PA1000 in STBY state and when PA1000 is switched OFF but remember to reduce the drive power before switchig PA1000 to OPER state! JUMA PA1000 User Manual Version 1.64 update 2022-02-15...
  • Page 8 Check that PA1000 is tracking the transceiver band. 11. Next time use. Switch on PA1000, check the band and push OPER button. JUMA PA1000 will 10. Push OPER button. LED indicates operate state.

  • Page 9: Rear Panel Connectors

    PTT signal is internally pulled up to +5 V with a 4.7 kilo-ohm resistor. Current sinking requirement is 1 mA. The ring terminal is not connected inside PA1000 so you DB9 female socket can also use a MONO plug for PTT connector.
  • Page 10 Note1. Both ends 3.5 mm plug. A mono plug can also be used in Icom end. Note2. A standard 3.5 mm stereo audio cable can NOT be used. PA1000 end of that must be modified as shown. ICOM PTT cable...
  • Page 11 Note1. A 15 pin VGA cable can NOT be modified for a K3 cable because some pins are connected together inside the molded VGA plug. Make a new cable with a 15 pin and a 9 pin male D-connector plugs. Note2. Select BCD BAND DATA in JUMA PA1000 Yaesu FT-1000 BCD Band Data & PTT...
  • Page 12 VGA plug. Make a new cable with a 15 pin and a 9 pin male D-connector plugs. Note2. Select BCD BAND DATA in JUMA PA1000 Note3. Make the following configuration to SunSDR2 PRO in Ext Ctrl tab.
  • Page 13 FlexRadio 6000 series (two alternatives) 1. Serial Band Data FlexRadio supports Kenwood serial protocol which is compatible with JUMA PA1000. Use an USB/RS232 adapter in FlexRadio and make a Kenwood RS232 serial COM cable found down the pages. Make related settings in FlexRadio and select Kenwood Serial Band data in JUMA PA1000.
  • Page 14 Kenwood transceiver. Kenwood is not sending band data event when the band is changed, it is polled by JUMA PA1000. To speed up the band change set PA1000 Radio Poll Rate to 500ms in the Service pages.
  • Page 15 Note2. In JUMA PA1000 set BAND DATA to Elecraft Serial and set the equal baud rate for both. Note3. Kenwood is not sending band data event, it is polled by JUMA PA1000. To speed up the band change set JUMA PA1000 Radio Poll Rate to 500ms in the Service pages.
  • Page 16 Icom band voltage is not supporting 50 MHz and WARC bands but 10 MHz is defined as 0 V. Zero voltage is not a proper level to verify valid band data and thus JUMA PA1000 needs 0.1 V to 1 .0 V for 10 MHz selection.
  • Page 17 Service Pages are intended for advanced use, calibration and special settings. If you are not familiar with the service settings do not change anything and exit Service Pages by switching OFF the JUMA PA1000. To enter Service Pages keep the PAGE button pressed about 5 seconds until you see text “Service pages selected”.

  • Page 18: Firmware Programming

    Firmware programming JUMA PA1000 firmware is easy to update. The latest firmware is available on the JUMA website www.jumaradio.com. It is a HEX file with a version identification number (e.g. JUMA_PA1000_v102.hex). You can check your current firmware version in your JUMA PA1000 LCD display during start-up.
  • Page 19 JUMA PA1000 Block Diagram JUMA PA1000 User Manual Version 1.64 update 2022-02-15 Page 19 of 23...
  • Page 20 The warranty extends to the original purchaser only and is non-transferrable. It is effective as of the date the product is shipped. During the warranty period JUMA will repair or replace any defective part or parts of the product, without cost to the purchaser, and correct any malfunction caused by the defective parts or materials.
  • Page 21 Install the cables as shown in the picture and set the all the baud rates to 38400. Note. PTT cable from KX3 to PA1000 is not shown in the picture, see the previous pages for the PTT cable. JUMA PA1000 User Manual Version 1.64 update 2022-02-15...
  • Page 22 COM port of your transceiver. PC/Mac and transceiver are seamlessly connected together while JUMA PA1000 is tracking the transceiver band. JUMA COM HUB is powered by the USB cable and you don't need a USB - RS232 converter because that is built in to JUMA COM HUB. We are using FTDI USB chipset. The USB COM driver will be installed automatically when you plug in COM HUB to your PC.
  • Page 23 UHF connectors (SO-239 sockets and PL-259 plugs) are somewhat unreliable. Please use high quality PL-259 plugs with PTFE insulator, preferably crimped models and ensure proper junctions. We recommend to tighten the PL-259 plugs with tongs. JUMA PA1000 User Manual Version 1.64 update 2022-02-15 Page 23 of 23...
