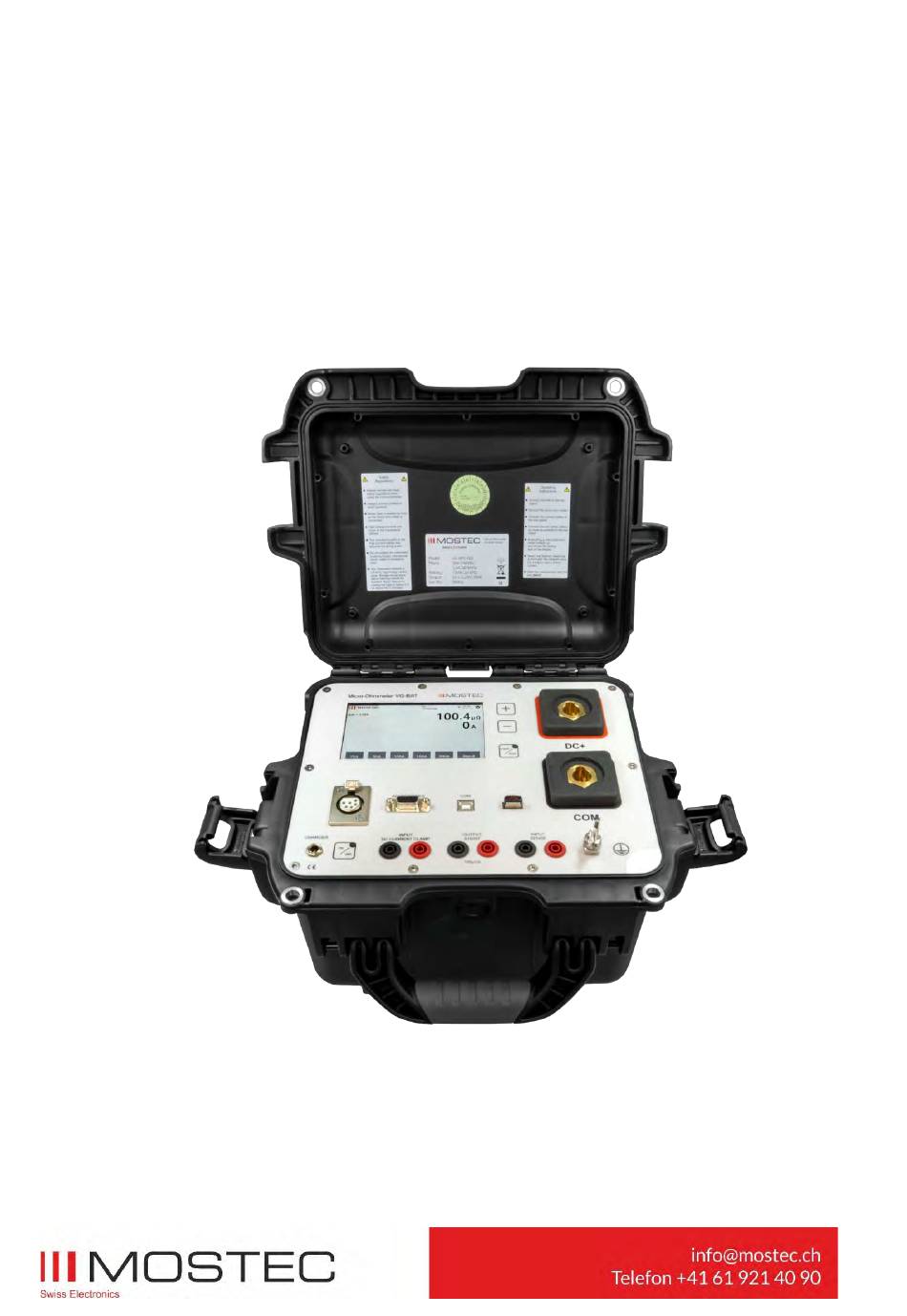

- Page 1 Operating Instructions Portable Micro-Ohmmeter VG-BAT-x00-III M4350OM V1.00e/29.07.2024...
-
Page 2: Table Of Contents
Operating instruction manual M4350 Chapter: Content Content Content ......................................2 Operating notes ....................................3 Warranty ....................................... 3 Technical description ..................................3 Technical support ..................................3 Contact details ..................................3 Safety instructions ..................................4 Battery care ....................................4 Battery disposal ..................................... 4 Operating regulations ................................... -
Page 3: Operating Notes
The warranty repair must in any case be carried out at Mostec. Postage and packaging expenses shall be paid by the customer. In the event of a warranty claim, the repaired unit will be returned at Mostec's expense. Transport damages are excluded from any warranty service and must be reported to the delivering carrier. -
Page 4: Safety Instructions
The crossed out wheeled bin symbol placed on the batteries is a reminder not to dispose of them with general waste at the end of their life. This product contains a LiFePO battery and a lithium coin cell. They are located inside the instrument. The lithium coin cell can be safely removed by Mostec AG. Page 4... -
Page 5: Operating Regulations
Operating instruction manual M4350 Chapter: Operating notes Operating regulations 1. Keep the Micro-Ohmmeter switched off while making connections. 2. Ground one side of the test object. 3. Ground the Micro-Ohmmeter. 4. Connect the current cables to the test object. 5. Connect the two sense cables as close as possible to the test object. 6. -
Page 6: Instrument Overview
Operating instruction manual M4350 Chapter: Instrument overview Instrument overview Instrument elements 1. 5" IPS TFT touch display 2. Increment/decrement keys for current and values 3. Start/Stop keys with status LED 4. Remote control connector 5. Accessories connector 6. USB PC-Interface 7. -
Page 7: Power On
Operating instruction manual M4350 Chapter: Instrument overview Power ON The device starts immediately and is ready for use. The display shows the following main menu. Main menu 1. Actual measured values: Shows the measured resistance and measurement current of the last measurement 2. -
Page 8: User Menu
Operating instruction manual M4350 Chapter: User menu User menu The user menu has the following submenus. In these submenus, device-specific settings can be made. The bar on the right side is a scroll bar The default values are shown [Bold] Settings Enter the Settings menu by pressing the icon in the Main menu. -
Page 9: Measurement Settings
Operating instruction manual M4350 Chapter: User menu Menu item Submenu items Section USB settings Device settings See on page 11 below Advanced data logging Save all results Finalize log file Communication Settings Software unlocked See on page 12 below USB interface Protocol Address Baudrate... -
Page 10: Preset Settings
Operating instruction manual M4350 Chapter: User menu Preset settings Select the preset current value from 1 – 5. For each preset button the following settings can be made. Menu item Function/Comment Possible values Preset Enable or disable the preset current on the main screen [on] Current... -
Page 11: Device Settings
Operating instruction manual M4350 Chapter: User menu Device settings Device specific settings are made in this submenu. Menu item Function/Comment Possible values Language Setting the menu language English Deutsch Français Espagñol Svenska Cesky [English] Access code Activate/deactivate the access code. Numeric access code When the access code is active, only Size: 4 digits... -
Page 12: Communication Settings
Operating instruction manual M4350 Chapter: User menu Communication settings In this submenu you can setup the protocol for “Remote” and “USB” interface. There are several protocols available. For full remote access with various protocols (Modbus-RTU, Data Output, Data Control) a software license code is needed. These protocols are designed to integrate the instrument into a custom specific calibration or test process. -
Page 13: Operation Of The Instrument
Operating instruction manual M4350 Chapter: Operation of the instrument Operation of the instrument Result Window The result window can be activated by pressing the result key in the main menu. It will also be automatically activated if a measurement has been completed. The Micro-Ohmmeter stores the last 100 data sets. Unlimited data sets can be achieved by using an external USB stick. -
Page 14: Application Example - One Side Grounded
Operating instruction manual M4350 Chapter: Application Example - one side grounded Application Example - one side grounded Comply to the safety regulations page 4 and operation instructions page 5 when using the Micro- Ohmmeter. Never use the instrument without the protective earth connections! Important: The sensing cables must be connected after the high current cables, as close to the test object as possible. -
Page 15: Application Example - Both Sides Grounded
Operating instruction manual M4350 Chapter: Application Example - both sides grounded Application Example - both sides grounded Comply to the safety regulations and operation instructions when using the Micro-Ohmmeter. See page 4 and 5. Never use the instrument without the protective earth connections! Important: The sensing cables must be connected after the high current cables, as close to the test object as possible. -
Page 16: Verify The Measuring Current
Operating instruction manual M4350 Chapter: Verify the measuring function Verify the measuring current Comply to the safety regulations and operation instructions when using the Micro-Ohmmeter. See page 4 and 5. Never use the instrument without the protective earth connections! Connect mV-Meter to the shunt output (mV DC) Start measuring and read the mV value Calculate the measuring current: ����������������... -
Page 17: Usb Logger
Operating instruction manual M4350 Chapter: USB Logger USB Logger Features of the USB Logger • The device only accepts USB sticks formatted FAT32 and empty. • Time and date must be set before inserting the USB stick. These settings are retained in the de-energized state via a backup battery. -
Page 18: Appendix
Operating instruction manual M4350 Chapter: Appendix Appendix Technical data Type: VG-BAT-150 VG-BAT-200 VG-BAT-300 Measuring ranges: 0...20.00µΩ, 0...200.0µΩ, 0...2.000mΩ, 0...20.00mΩ, 0...200.0mΩ, 0...999.9mΩ Display: Sunlight readable 5" IPS touch screen with a resolution of 800x480 dots Display resolution: 0.01µΩ ... 0.1mΩ General Accuracy: 0 ...1000µΩ... - Page 19 Operating instruction manual M4350 Chapter: Appendix Type: VG-BAT-150 VG-BAT-200 VG-BAT-300 Automatic power switch-off: Default 2 minutes Sense input: Independent polarity with banana jacks on front panel Input voltage: Max. ±5V Input impedance: >200kΩ Current Clamp input: Independent polarity with banana jacks on front panel Input voltage: Max.
