INSTRUCTION MANUAL

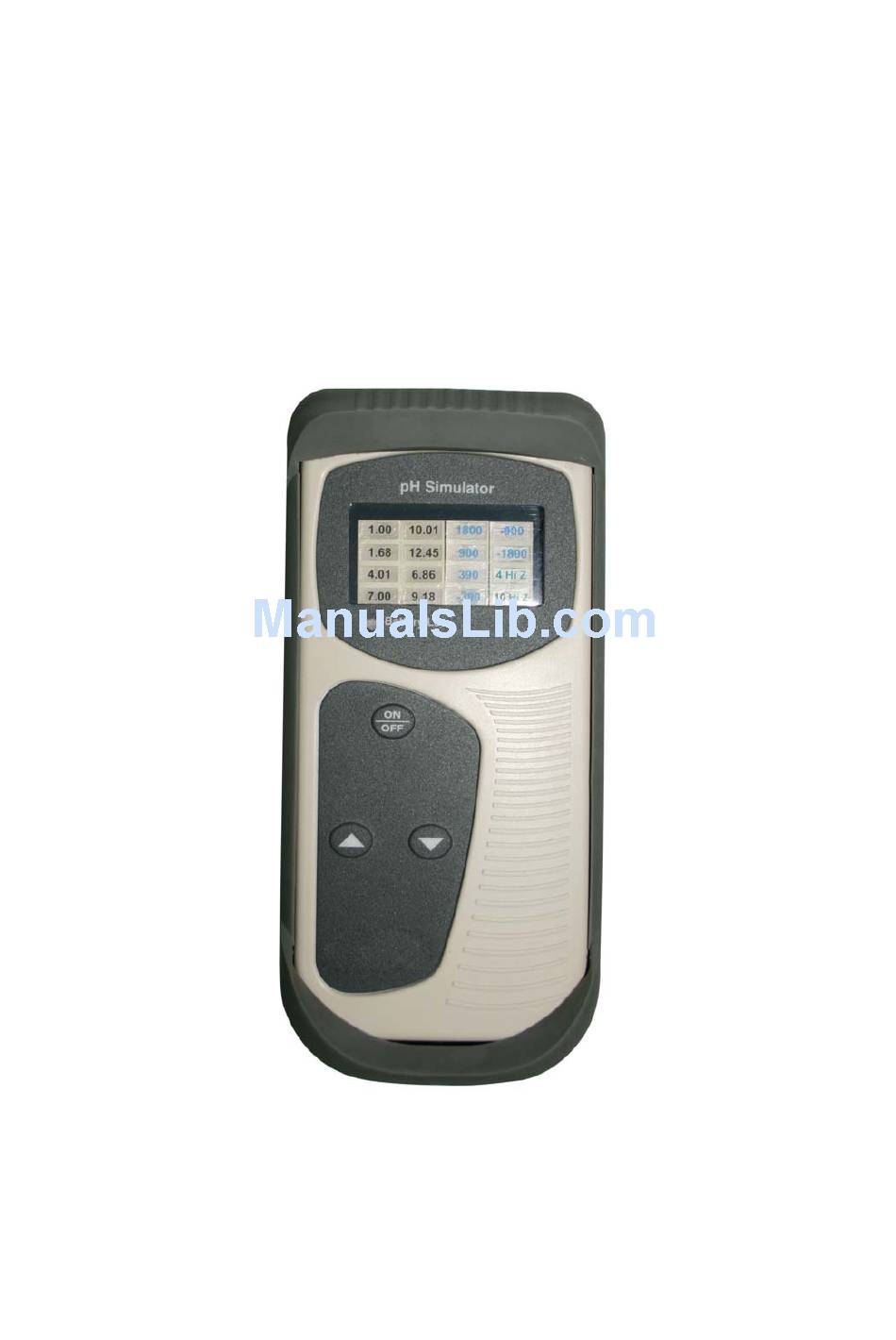

pH Simulator

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M2740 and is the answer not in the manual?

Questions and answers

Related Manuals for Mostec M2740

Summary of Contents for Mostec M2740

  • Page 1 INSTRUCTION MANUAL pH Simulator...
  • Page 2 1 Introduction Thank you for selecting our palm top pH and mV simulator. This simulator is designed to be handy, capable of allowing one hand operation. Your simulator has a user friendly feature of push button operation for selection of pH and mV values which are accessible through the splash-proof membrane keypad.

  • Page 3: Inserting & Removing Rubber Boot

    2.2 Keypad A large membrane keypad with tactile feedback makes the instruments easy to use. Powers on and shuts off the simulator. Scroll and select the pH and mV output simulation value. Scroll and select the pH and mV output simulation value. Figure 2: pH Simulator Keypad 3 Preparation 3.1 Inserting &...

  • Page 4: Inserting The Batteries

    3.2 Inserting the Batteries The battery compartment is found at the back of instrument as shown in Figure 4. To open the battery compartment: 1. Push in the direction of arrow and lift up the cover. 2. Note the polarity of battery before inserting into position. 3.
  • Page 5 3.4 Connecting the BNC cable to simulator 1. Insert the BNC connector of the cable over the BNC connector socket on the simulator. 2. Make sure the slots of the connector are in line with the posts of the socket. 3.

  • Page 6: Operating Procedure

    4 Operating Procedure The simulator is designed to test the accuracy of your pH/ORP meters. It includes the simulation values for the USA and NIST buffer set standards and the simulation performance of an electrode in pH 4.01 and pH 10.01 buffers (4 Hi Z & 10 Hi Z). This High Impedance pH simulation is useful for testing suspected leakage problems of your pH/ORP meters.

  • Page 7: Specification

    80% up to 31°C decreasing linearly to 50% at 40°C Dimensions 14 X 17 X 3.5 cm Weight 200g (Boxed) 6 Accessories Item Instruments Order Code pH Simulator with 1m BNC to BNC Cable M2740 1m BNC to 13mm pH-plug Cable M2740 13mm ph-plug cable...

  • Page 8: Warranty

    If repair or adjustment is necessary and has not been the result of abuse or misuse within the designated period, please return – freight pre-paid – and correction will be made without charge. Mostec will determine if the product problem is due to deviations or customer misuse.
