Summary of Contents for Mostec M4036
- Page 1 Operating manual Conductivity meter Type M4036 M4036OM V1.11e/20.09.2023...
-
Page 2: Revision
Operating instruction manual M4036 Chapter: Revision Revision Version Date Changes V1.10 05.09.2023 Valid for M4036 as of firmware version 1.00.18 Page 2... -
Page 3: Table Of Contents
Operating instruction manual M4036 Chapter: Content Content Revision ....................................2 Content ..................................... 3 Operating notes ..................................4 Warranty ...................................... 4 Technical description ................................... 4 Technical support ..................................4 Contact details ..................................4 Safety instructions ..................................5 Operating regulations .................................. 5 Wiring diagram .................................... -
Page 4: Operating Notes
The warranty repair must in any case be carried out at Mostec. Postage and packaging expenses shall be paid by the customer. In the event of a warranty claim, the repaired unit will be returned at Mostec's expense. Transport damages are excluded from any warranty service and must be reported to the delivering carrier. -
Page 5: Safety Instructions
Operating instruction manual M4036 Chapter: Operating notes Safety instructions Observe the customary national regulations and safety requirements for electrical, light and heavy current installations. Read and observe the safety regulations of these operating instructions before using the device. The device must be mounted in such a way that it is protected from moisture, vibrations and heavy soiling. -
Page 6: Wiring Diagram
Operating instruction manual M4036 Chapter: Operating notes Wiring diagram Page 6... -
Page 7: Connections
Operating instruction manual M4036 Chapter: Operating notes Connections Probe + input Probe - input Hold input Pt-100 probe (-) Pt-100 probe sense(-) Pt-100 probe (+) Protective earth PE Supply power (-) Supply power (+) Limit value 1: normally Limit value 1:... -

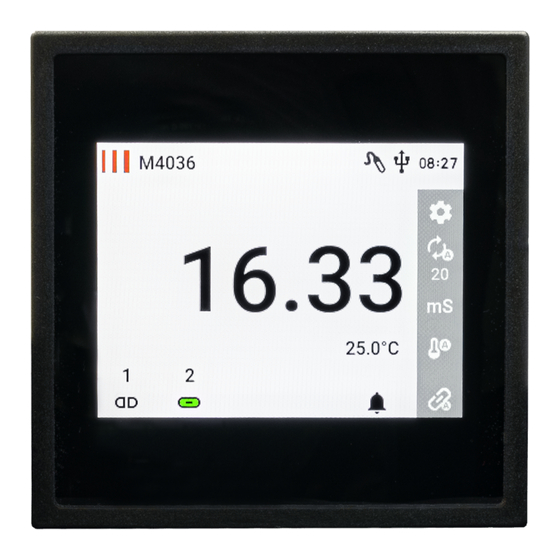

Page 8: Instrument Overview
Operating instruction manual M4036 Chapter: Instrument overview Instrument overview Instrument elements Measurement screen 1. Current measured values 2. Logo and "Device info" entry 3. Device label 4. Status bar with current time 5. Settings 6. Measuring range 7. Measurement unit 8. -
Page 9: User Menu
Operating instruction manual M4036 Chapter: User menu User menu The user menu has the following submenus. In these submenus, device-specific settings can be made. The bar on the right side is a scroll bar The default values are shown [Bold]... -
Page 10: Measurement Settings
Operating instruction manual M4036 Chapter: User menu Measurement settings In this submenu, measurement-specific settings as well as settings for the current output can be made. Menu item Function/Comment Possible values Current output 1 Settings for signal output 1 Signal output 1 & 2 settings... -
Page 11: Signal Output 1 & 2 Settings
Operating instruction manual M4036 Chapter: User menu Signal output 1 & 2 settings Menu item Function/Comment Possible values Input min Minimum conductivity / minimum Adjustable from: temperature value for the lower value 0 to 2000 digits of the conductivity of the current output range, or -30.0°C to +100.0°C if... -
Page 12: Device Settings
Operating instruction manual M4036 Chapter: User menu Device settings Device specific settings are made in this submenu. Menu item Function/Comment Possible values Language Setting the menu language English German Français Access code Activate/deactivate the access code. Numeric access code When the access code is active, only Size: 4 digits the menu items "Sensor calibration"... -
Page 13: Limit Contact 1 & 2 Settings
Operating instruction manual M4036 Chapter: User menu Limit contact 1 & 2 settings Menu item Function/Comment Possible values Set point Set the setpoint of the limit contact Adjustable from: range 0 to 2000 digits from conductivity range -30.0°C to +130.0°C when temperature selected GW1: [1600 / 45.0°C]... -
Page 14: Alarm Settings
Operating instruction manual M4036 Chapter: User menu Alarm settings Menu item Function/Comment Possible values Alarm SP1 Opens the Alarm SP1 settings See Alarm SP1 & SP2 settings Alarm SP2 Opens the Alarm SP2 settings See Alarm SP1 & SP2 settings... -
Page 15: Usb Settings
Operating instruction manual M4036 Chapter: User menu USB settings Menu item Function/Comment Possible values Log interval Time interval after a measurement is Adjustable from: stored on the USB stick 1s to 7200s [5s] Time Set the current time Adjustable from: 00:00 to 23:59 Shows the status. -
Page 16: Operation Of The Device
Operating instruction manual M4036 Chapter: Operation of the device Operation of the device Alarm Log 1. Alarm Log Symbols 2. Current alarm state 3. Alarm state history 4. Alarm acknowledgement Explanation of the Alarm Log Symbols Alarm contact active Switching points have triggered alarm... -
Page 17: Usb Logger
Operating instruction manual M4036 Chapter: Operation of the device USB Logger Features of the USB Logger The device only accepts USB sticks which are FAT32 formatted and empty. Time and date must be set before inserting the USB stick. A backup battery keeps the settings also during the de-ener- gized state. -
Page 18: Appendix
Operating instruction manual M4036 Chapter: Appendix Appendix Dimensions Front panel mounting requires a cutout of 91x91mm. Side view: Rear view: Page 18... -
Page 19: Technical Data
Operating instruction manual M4036 Chapter: Appendix Technical data Measuring ranges: 0...2.000µS K = 0.1, K = 0.01 0...20.00µS K = 10.0, K = 1.00, K = 0.1 K = 0.01 0...200.0µS K = 10.0, K = 1.00, K = 0.1 0...2.000mS... - Page 20 Operating instruction manual M4036 Chapter: Appendix Further features -16 characters available for labeling on the main screen -hold function of the current outputs/relays controlled by external normally open contact -settings can be copied from device to device via USB stick -firmware updates via USB stick -device settings can be blocked with a 4-digit access code.
