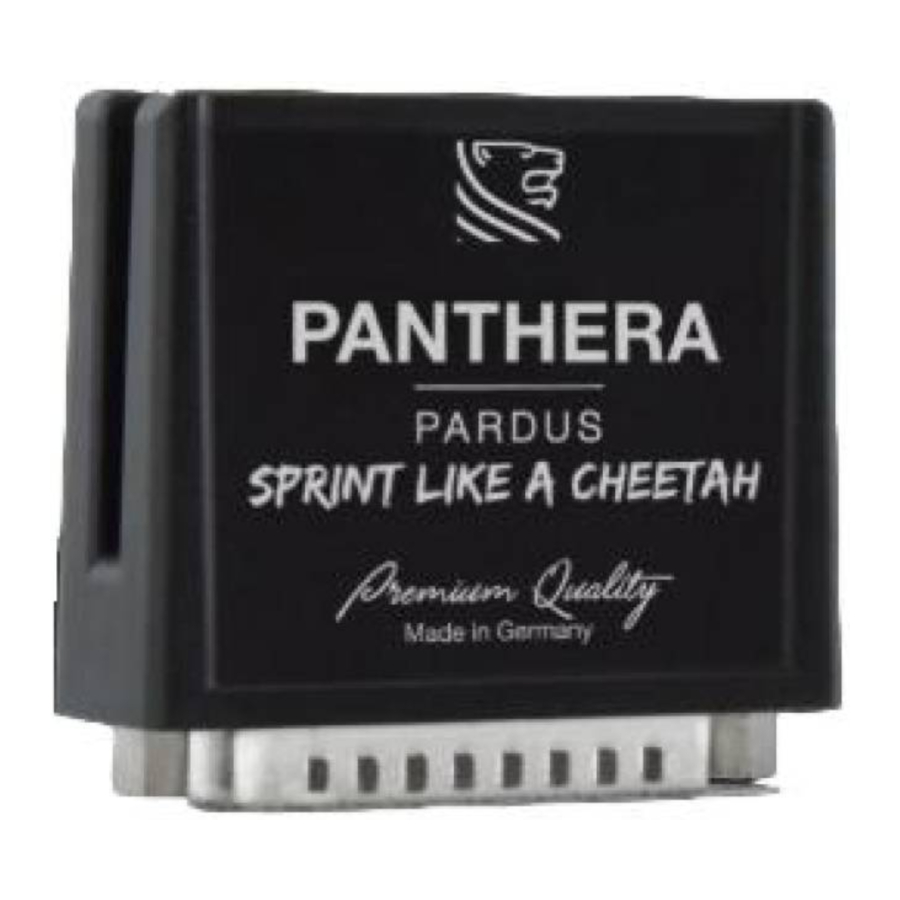

panthera Pardus Installation Manual

Prepared

Installation time: about 10-25 min

danger Pull the ignition key off the vehicle and wait at least 2 minutes until the motor control unit's timer function is switched off. (On some vehicles, it is necessary to close the doors and lock the vehicle).

Installation

Disconnect the original plug from the accelerator pedal.
Connect the two plugs of the power pedal.
Lay the cable and fix the module DONE!

Service

information The Pardus Power Pedal is preset in "Dynamic" mode and can be used directly.
To change the settings of the Pardus Power Pedal, you need the PANTHERA CONNECT APP. This is available free of charge in the Google Playstore (Android) and the App Store (iOS).

Download the app and start it. Please note the relevant road traffic regulations (STVO) and confirm with "OK".
In the next step, start the configuration by pressing "CONNECT SETUP" (if you have deactivated Bluetooth on your smartphone, you will be prompted to activate this). Please scan the QR code (this is attached to your order in the form of a registration card and is additionally on the product itself) to connect the power pedal to the app.
See Figure 1:

Please scan the QR code (You will find it on a registration card and is also on the product itself) to connect the power pedal with the app. See illustration 2:

Alternatively, you can enter the code manually. You can also find this on the registration card or on the product. Turn ignition on, enter the code and press "SEARCH". Once the power pedal is found, confirm "SAVE".

Now you are in the main menu. See Illustration 3:
The "Cruise", "Dynamic" and "Race" buttons allow you to select the individual modes. The corresponding change in the accelerator pedal line is displayed on the screen. Use the "On / Off" button to turn off and on the power pedal.

Instructions for modifying the programs:

Do not press any of the buttons during the acceleration process!
The power pedal is programmed for the vehicle. All possible settings can be used without any problems.
If a program is changed by means of the respective key, it can nevertheless occur sporadically to a fault message in the display or possibly cause an emergency run, due to serial tolerances.

A fault message usually goes out after restarting the motor. For some manufacturers, the fault message will not be switched on and off until 10 to 20 times.

Safety Tips

Before using this device, read carefully the installation instructions and follow our instructions and recommendations.
This manual is designed using the example of a vehicle model. Deviations on the individual models are possible.
It is the German law of warranty. For persons and property which does arise from failure to observe this manual, the company Swiss Chiptech no liability.

	Important information about the risk to persons and / or the device.
	Regarding the important information

For your safety, you must follow our instructions.
All components of the PTR kits must be protected from dampness and moisture.

information Technical Hotline
If you have questions or suggestions regarding the installation of performance, we are happy to be reached Monday through Saturday from 09:00 clock to 20:00 clock.
Hotline Number: +49 163 33 66 55 6

information TÜV certificate
From Country to Country different, after installation of a performance enhancement, you must make a certificate.
