ring RSC804, RESC804, RSC806, RESC806, RSC808, RESC808 Manual



Before charging

Wear protective eye wear and gloves

Read the instructions

Use only by a competent person

Apply handbrake

Turn ignition off

Position away from battery

Suitable battery types

Unsuitable battery types

Charge only one battery at a time

Product overview

Product overview

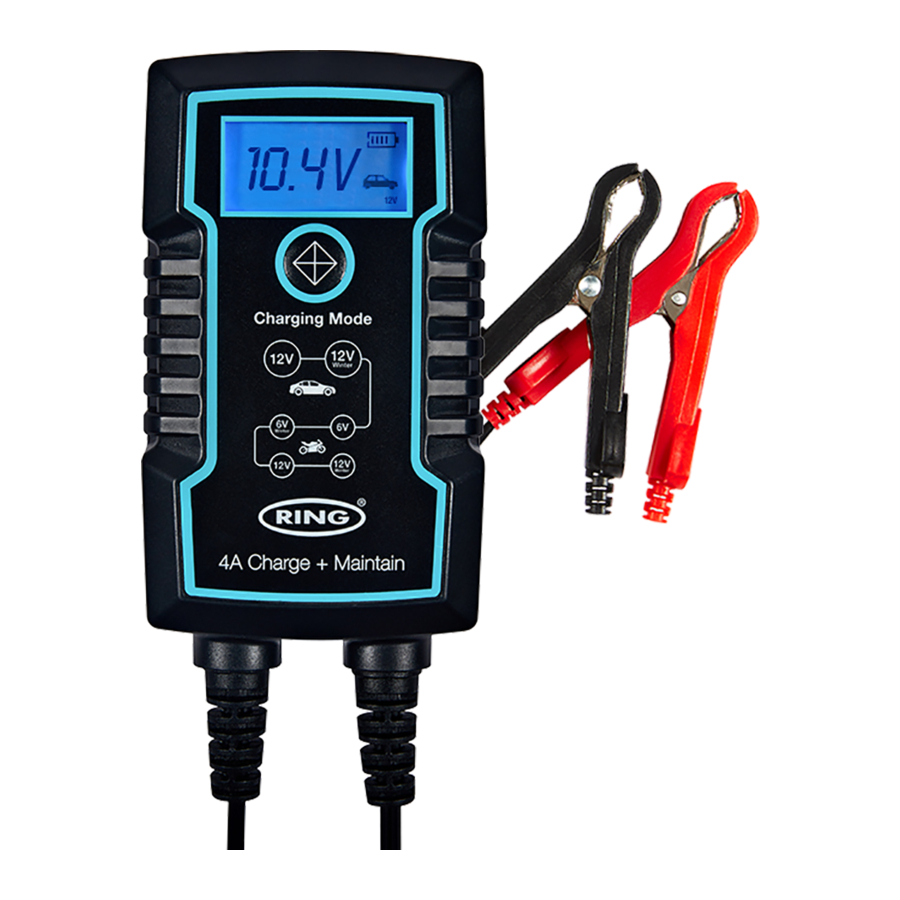

  1. LCD Display
  2. Mode button
  3. Connection plug
  4. Battery clamps
  5. Battery ring terminals
  6. Mains plug
  7. Hanging hook

How to charge your battery

How to charge your battery

Charging

Charging

Battery maintenance

Battery maintenance

After charging

After charging

Specifications

RSC804/RESC804 RSC806/RESC806 RSC808/RESC808
230V AC 50Hz
0.7A Max
230V AC 50Hz
1.1A Max
230V AC 50Hz
1,5A Max
6V: 7.4V
12V: 14.8V
6V: 7.4V
12V: 14.8V
12V: 14.8V
24V: 29.0V
6V: 2A
12V: 4A
6V: 3A
12V: 6A
12V: 8A
24V: 4A
6V: up to 40Ah
12V: up to 90Ah
6V: up to 50Ah
12V: up to 110Ah
12V: up to 150Ah
24V: up to 70Ah
-20ºC to +40ºC
IP65

Error Codes

Error Codes

ER1 (Error Code 1) appears when:

  1. Battery clamps are connected incorrectly. The correct connection is Red Clamp to Positive, Black Clamp to Negative.
  2. The charger is powered on before being connected to the battery (connect first, then power on).
  3. The battery is completely flat. The charger requires at least 2V to add charge; below 2V, it will not charge.

ER2 (Error Code 2) appears when:

  1. A defective battery is connected. Cannot be charged.
  2. The battery voltage does not match the selected charge mode (e.g., a 6V battery with a 12V setting).

Ring Automotive Limited
Gelderd Road, Leeds, LS12 6NA, United Kingdom
Telephone +44 (0)113 213 2000
Fax +44 (0)113 231 0266
Email autosales@ringautomotive.com
www.ringautomotive.com
