Murdock A172.8-UG Series Installation & Maintenance Instructions Manual

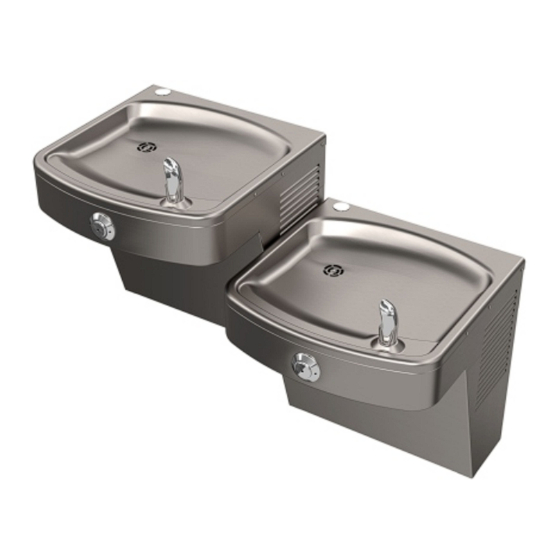

Universal bi-level, barrier free, wall mounted water cooler
Hide thumbs
Also See for A172.8-UG Series:
Advertisement
Quick Links
A172.8-UG Series / A172.8-UG-VR Series & A172.8-UG-SO Series
Universal Bi-Level, Barrier Free, Wall Mounted Water Cooler
A172108F-UG / A178408F-UG / A172108S-UG / A172408S-UG
172108F-UG-VR / A172408F-UG-VR / A172108S-UG-VR / A172408S-UG-VR
A172108F-UG-SO / A172408F-UG-SO / A172108S-UG-SO / A172408S-UG-SO
A172108F-UG
NOTES TO INSTALLER:
1. Please leave this documentation with the owner of the fixture when finished.
2. Please read this entire booklet before beginning the installation.
3. Check your installation for compliance with plumbing, electrical and other applicable codes.
4. IMPORTANT: Water supply to unit from RO Reverse Osmosis filtration systems will damage
fixture components and void product Warranty.
OPTIONAL BOTTLE FILLER INSTALLATION DETAILS (MODEL # BF11, BF12, BF11S, BF12S):
This series is offered with optional Bottle Filler unit (packaged / shipped separately) which requires Wall mounting.
Rough-In and Installation details for Bottle Fillers are shipped with the Bottle Filler specified.
For Installation details refer to the specified Bottle Filler Product Page Downloads using the following link:
TECHNICAL ASSISTANCE TOLL FREE TELEPHONE NUMBER:
For current Warranty click hyperlink
Murdock assumes no responsibility for use of void or
suspended data. © Copyright Murdock, City of
Industry, CA Member of Morris Group International.
Please visit www.murdockmfg.com for most
current specifications.
MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone 800-453-7465 or 626-333-2543 • www.murdockmfg.com
7020-982-001
7020-982-001
Revised: 10/16/2025 D
Page
1
of 20

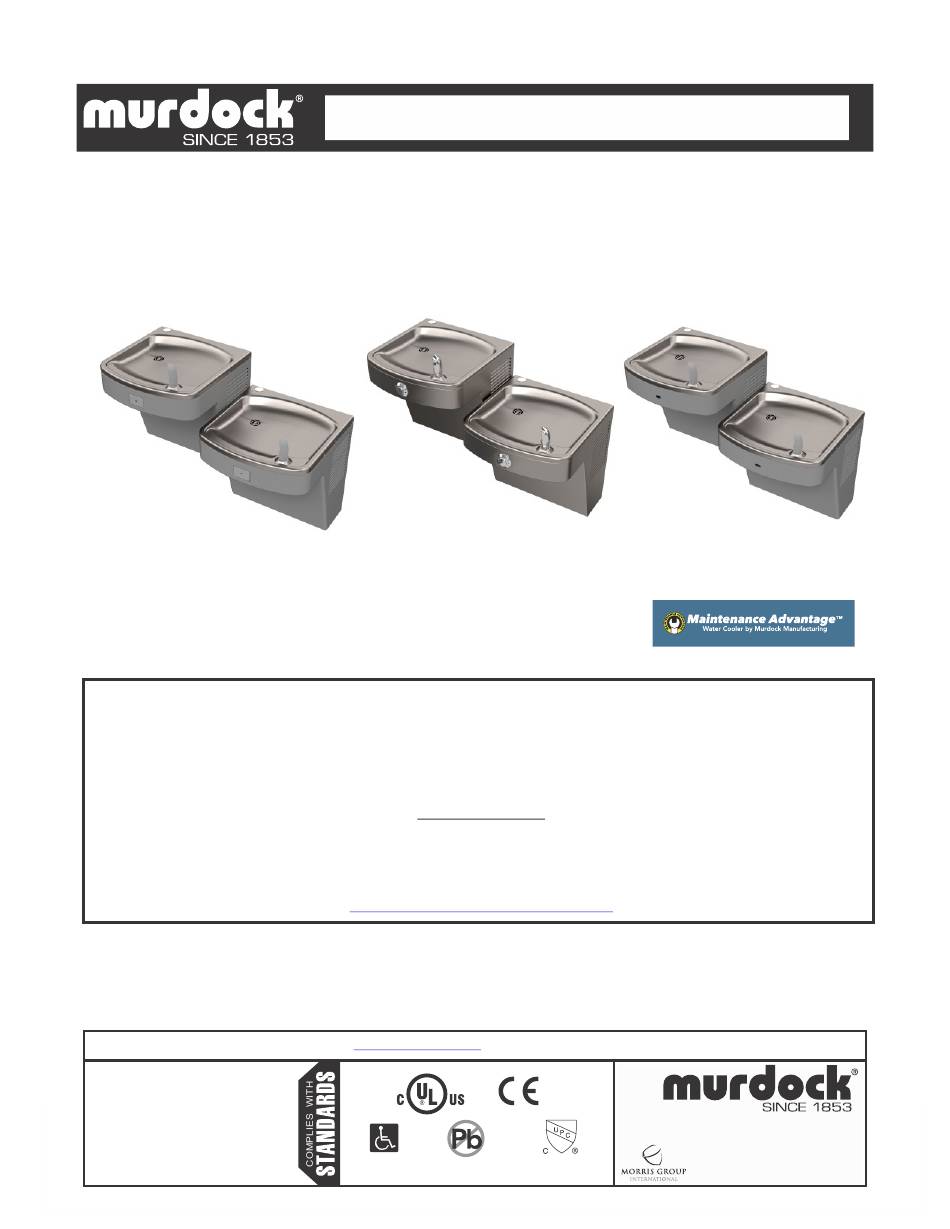

CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
MODEL SERIES:
A172408F-UG-VR
IMPORTANT
www.murdockmfg.com/bottle-fillers
1.800.743.8259
Technical Assistance E-Mail: Fieldservice@acorneng.com
Product Warranty
NSF/ANSI/CAN 61
A172.8-UG
WATER COOLERS
or visit: www.murdockmfg.com/terms-and-warranty
(220V Compressor Only)
Federal
Public Law
Member of
111-380
(No Lead)
ANSI/ASHRAE 18
A172108S-UG-SO
15125 Proctor Ave, City of Industry,
CA, 91746 U.S.A.
Member of
Phone 800-453-7465
Revised: 10/16/2025 D
www.murdockmfg.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Murdock A172.8-UG Series
Summary of Contents for Murdock A172.8-UG Series
- Page 1 Industry, CA Member of Morris Group International. Please visit www.murdockmfg.com for most current specifications. (220V Compressor Only) 15125 Proctor Ave, City of Industry, MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Federal Public Law Member of CA, 91746 U.S.A.
- Page 2 Provide clear floor space as required. Compliance is subject to the interpretation and requirements of the Local Code Authority. MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 • www.murdockmfg.com...
- Page 3 20 PSIG (138 kPa) to 105 PSIG (724 kPa). Consult with UPC and local codes for maximum allowable water pressures. 11. Due to cold waste water, Murdock Manufacturing recommends that p-trap supplied by installer be insulated to prevent excessive condensation.
- Page 4 7. Use supplied flexible hose and clamps to connect waste tailpiece from the upper unit to the waste tailpiece of lower unit and then make up 1-1/4” O.D. p-trap waste connection. Waste p-trap by others. MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 •...
- Page 5 LOWER ACCESS COVER. CAULKING WEATHER STRIP (BETWEEN UPPER AND LOWER UNITS) WEATHER STRIP STANDARD CONFIGURATION MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 • www.murdockmfg.com 7020-982-001 Revised: 10/16/2025 D A172.8-UG Page...
- Page 6 Water Supply Assembly Tubing Cartridge Valve Remove For Assembly Bottle Filler Use MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 • www.murdockmfg.com 7020-982-001 Revised: 10/16/2025 D A172.8-UG Page of 20...
-
Page 7: Push-In Fitting Installation
While holding the collet in, pull on the PE tubing to remove from the push-in fitting. COLLET MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 • www.murdockmfg.com... - Page 8 WAY TO MAKE A GOOD CONNECTION. CARTRIDGE between “Y” Strainer and Evaporator (chiller) or Pushbutton REPLACEMENT. (no chiller). MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 • www.murdockmfg.com 7020-982-001 Revised: 10/16/2025 D A172.8-UG...
-
Page 9: Troubleshooting
Check the compressor mounting to make sure the pins and clips are not rattling. If the compressor appears to be noisy internally, it must be replaced. MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 •... - Page 10 2. Excess dirt or poor ventilation will cause the compress` more frequently. 3. Periodically remove access panels and clean out in-line strainer. 4. Do NOT use harsh chemicals, abrasive or petroleum based cleaners. Use of these will void the Murdock warranty.
- Page 11 Reconnect sensor to power supply. Within 5 seconds, place hand in front of sensor. Move hand to desired range. MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 • www.murdockmfg.com 7020-982-001 Revised: 10/16/2025 D A172.8-UG...
- Page 12 STRAINER FILTER SCREEN 7003-097-001 O-RING &STRAINER PLUG 7000-060-000 FLOW REGULATOR CARTRIDGE(05 GPMG) 7003-095-001 VALVE ASSEMBLY MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 • www.murdockmfg.com 7020-982-001 Revised: 10/16/2025 D A172.8-UG Page...
- Page 13 WATER TO FLOW. 7000-052-000 RETAINING NUT 7003-099-001 (-VR) PUSHBUTTON ASSY - ITEMS #5 THRU #9 MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 • www.murdockmfg.com 7020-982-001 Revised: 10/16/2025 D A172.8-UG...
- Page 14 WHITE QUICK DISCONNECTS SOLENOID VALVE PLUG PLUG LOWER FOUNTAIN SOLENOID VALVE MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 • www.murdockmfg.com 7020-982-001 Revised: 10/16/2025 D A172.8-UG Page of 20...
- Page 15 Standard A172-UG series refrigerated ADA cooler shown. All 1/4" O.D. Plastic tubing 15 must be insulated with 16 foam insulation. MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 • www.murdockmfg.com...
- Page 16 0124-031-000 #8 x 3/8" LNG SLOTTED HEX WASHER HD SCREW 1895-710-000 1/4" O.D. TUBE, TEE 1895-715-000 1/4" PLUG Repairs must be made with Murdock Manufacturing parts only. Please order through your local representative or distributor. MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 •...
- Page 17 -Strainer Plug -Removal of P.E. Tubing from Push-in Fittings Repairs must be made with Murdock Manufacturing parts only. Please order through your local representative or distributor. MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 •...
- Page 18 7003-196-199 (-VR) PUSHBUTTON, CHROME 7003-197-199 (-VR) PUSHBUTTON ESCUTCHEON, CHROME 7003-048-199 COVER PLATE, -VR EMPTY UNIT 1895-710-000 1/4" O.D. TUBE, TEE MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 • www.murdockmfg.com 7020-982-001 Revised: 10/16/2025 D A172.8-UG...
- Page 19 27" 15" 15" 15" Repairs must be made with Murdock Manufacturing parts only. Please order through your local representative or distributor. MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 • www.murdockmfg.com...
- Page 20 1895-710-000 1/4" O.D. PUSH-IN TEE 0711-451-001 3 STATION 9VAC WIRING HARNESS Repairs must be made with Murdock Manufacturing parts only. Please order through your local representative or distributor. MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 •...
