TECHNICAL ASSISTANCE TOLL FREE TELEPHONE NUMBER:
NOTES TO INSTALLER:
1. Please leave this documentation with the owner of the fixture when finished.
2. Please read this entire booklet before beginning the installation.
3. Check your installation for compliance with plumbing, electrical and other applicable codes.
Murdock warrants that its products are free from defects in material or workmanship under normal use and
service for a period of one year from date of original shipment or for 18 months after the date of shipment from the
factory, whichever comes first. Murdock's liability under this warranty shall be discharged solely by replacement
or repair of defective material, provided Murdock is notified in writing within one year from date of shipment,
F.O.B. Industry, California.
This warranty does not cover installation or labor charges and does not apply to materials, which have been
damaged by other causes such as mishandling or improper care or abnormal use. The repair or replacement of the
defective materials shall constitute the sole remedy of the Buyer and the sole remedy of Murdock under this
warranty. Murdock shall not be liable under any circumstances for incidental, consequential or direct charges
caused by defects in the materials, or any delay in the repair or replacement thereof. This warranty is in lieu of all
other warranties expressed or implied. Product maintenance instructions are issued with each unit and disregard
or non-compliance with these instructions will constitute an abnormal use condition and void the warranty.
Stainless steel must be protected on job site during construction and must be properly maintained after the water
has been introduced into the water cooler or drinking fountain, or Mudock's limited warranty is void.
LIMITED EXPORT WARRANTY - One year on parts only.
Murdock assumes no responsibility for use of void or
suspended data. © Copyright Murdock, City of
Industry, CA Member of Morris Group International.
Please visit www.murdockmfg.com for most
current specifications.
7020-904-001
Date: 12/26/17
CONTEMPORARY WATER COOLERS
WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
A171.8 Series

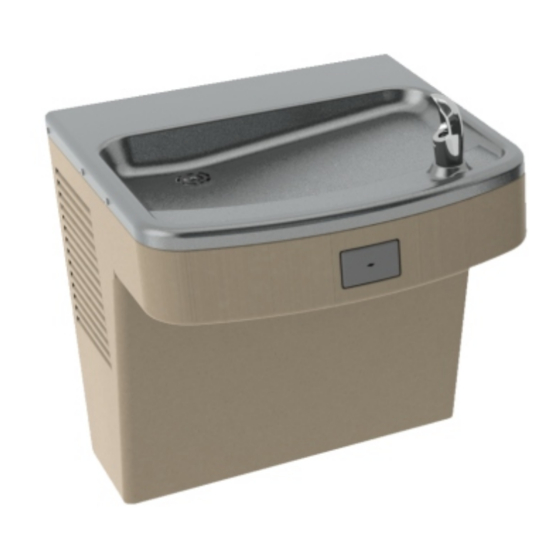

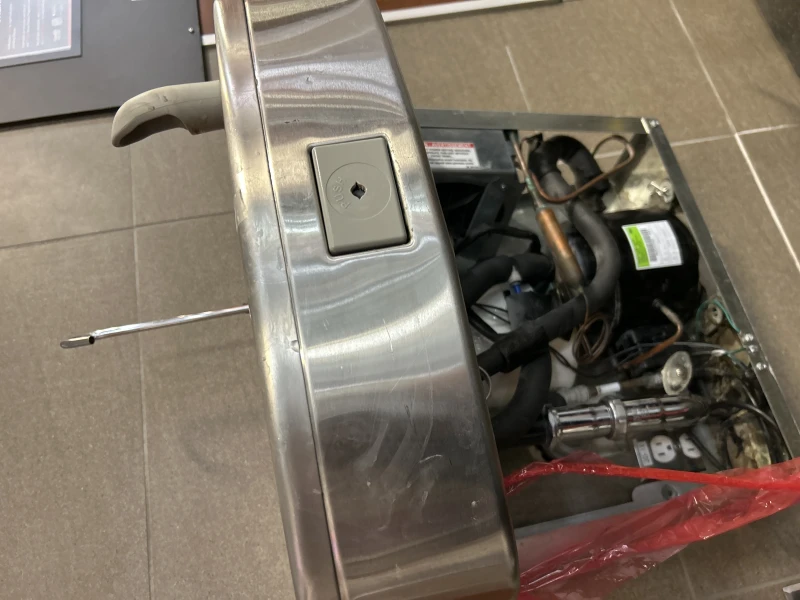

Barrier Free, Wall Mounted Water Cooler
"INDOOR USE ONLY
A171108F / A171408F / A171108S / A17408S
1.800.591.9360
Technical Assistance Fax: 1.626.855.4894
LIMITED WARRANTY - UNITED STATES & CANADA
Federal
Test rating conditions are
Public Law
111-380
compliant with ARI 1010.
(No Lead)
MURDOCK
15125 Proctor Ave.
City of Industry, CA
Phone 800-591-9360
626-336-4561
Fax 626-855-4894
Member of
www.murdockmfg.com
91746 U.S.A.
Advertisement
Related Manuals for Murdock A171.8 Series
Summary of Contents for Murdock A171.8 Series
- Page 1 18 months after the date of shipment from the factory, whichever comes first. Murdock’s liability under this warranty shall be discharged solely by replacement or repair of defective material, provided Murdock is notified in writing within one year from date of shipment, F.O.B. Industry, California.
- Page 2 For Child ADA compliant parallel approach, decrease spout height to 30” maximum above finished floor. Provide clear floor space as required. MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 •...
-
Page 3: Prior To Installation
12. All building water supply systems in which quick acting valves are installed shall be provided with devices to absorb the hammer caused by high pressure resulting from the quick closing of the MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 •... -
Page 4: Installation
6. Plug water cooler in to electrical outlet and make sure unit begins to function. 7. Assemble bottom cover to water cooler with screws furnished. MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 •... - Page 5 FOAM INSULATION, PIPE, 3/8" ID x 1/4" THICK 5.5' 2169-000-000 TUBING, LLDPE, BLUE 1/4" OD 7012-311-000 WF1 FILTER 1500 GALLON MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 • Fax 626-855-4860 • www.murdockmfg.com 7020-904-001 Revised: 12/26/17 A171.8...
- Page 6 TUBING, LLDPE, BLUE 1/4" OD To Bottle Filler or Glass Filler 13" Water Supply Tubing 17" Water Supply Tubing MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 • Fax 626-855-4860 • www.murdockmfg.com 7020-904-001...
- Page 7 From the outlet of the cartridge assembly, connect to the bubbler. Bubbler Connection 13" Water Supply Tubing Cartridge Assembly Outlet Connection MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 • Fax 626-855-4860 • www.murdockmfg.com 7020-904-001 Revised: 12/26/17 A171.8...
-
Page 8: Troubleshooting
A restriction or moisture in the system will also cause intermittent cycling. A certified refrigeration mechanic should be contacted in this situation. MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 • Fax 626-855-4860 • www.murdockmfg.com... - Page 9 5. For cleaning, Do NOT use water jet, harsh chemicals, abrasive or petroleum based cleaners. Use of these will void the Acorn warranty. MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 • Fax 626-855-4860 • www.murdockmfg.com...
- Page 10 7003-097-001 O-RING &STRAINER PLUG 7000-060-000 FLOW REGULATOR CARTRIDGE(05 GPMG) 7003-095-001 VALVE ASSEMBLY MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 • Fax 626-855-4860 • www.murdockmfg.com 7020-904-001 Revised: 12/26/17 A171.8...
-
Page 11: Push-In Fitting Installation
While holding the collet in, pull on the PE tubing to remove from the push-in fitting. COLLET MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 • Fax 626-855-4860 • www.murdockmfg.com... - Page 12 ** Flow Restrictor Only Available With Low Flow Bubbler. ** 26 Standard A171.8 series refrigerated ADA cooler shown. All 1/4" O.D. Plastic tubing 24 must be insulated with 25 foam insulation. NOTE: See next page for table of part numbers corresponding to drawing above.
- Page 13 7003-093-001 FLOW RESTRICTOR - LOW-FLOW BUBBLER ONLY 7003-830-000 UNIVERSAL MAINTENANCE TOOL Repairs must be made with Murdock Manufacturing parts only. Please order through your local representative or distributor. The phone number to locate your local representative is 1.800.591.9360. MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 •...
