TECHNICAL ASSISTANCE TOLL FREE TELEPHONE NUMBER:
Technical Assistance E-Mail: fieldservice@acorneng.com
NOTES TO INSTALLER:
1. Please leave this documentation with the owner of the fixture when finished.
2. Please read this entire booklet before beginning the installation.
3. Check your installation for compliance with plumbing, electrical and other applicable codes.
4. IMPORTANT: Water supply to unit from RO Reverse Osmosis filtration systems will damage
fixture components and void product Warranty.
Murdock™ assumes no responsibility for use
of void or superseded data. © Copyright
Murdock Mfg., City of Industry, CA Member of
Morris Group International. Please visit
www.murdockmfg.com
for most current
specifications.
MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone 800-453-7465 or 626-333-2543 • Fax 626-855-4860 • www.murdockmfg.com
7020-898-001
7020-898-001
Date: 06/01/2023 A
CONTEMPORARY DRINKING FOUNTAINS
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
A171.8-SOC Series
Concealed Sensor Operated, Barrier-Free, Wall
Mounted Water Cooler

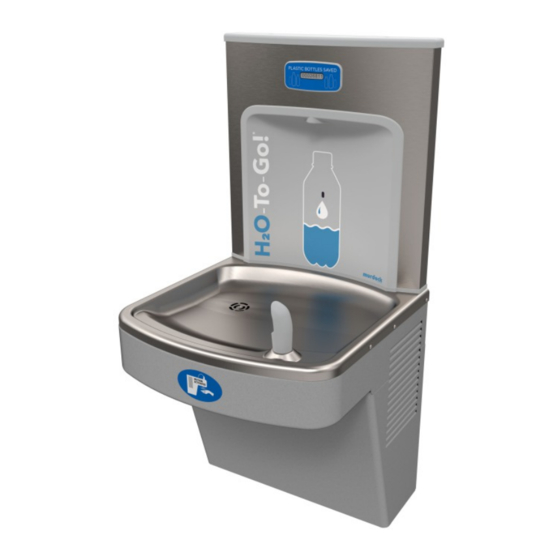

A171.8-UG-SOC-BF12-BCD SHOWN
1.800.591.9360
NSF/ANSI/CAN 61
(220V Compressor Only)
Federal
Public Law
111-380
(No Lead)
ANSI/ASHRAE 18
1 of 11
15125 Proctor Ave, City of Industry,
Member of
CA, 91746 U.S.A.
Phone 800-453-7465
Revised:
06/01/2023 A
www.murdockmfg.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Murdock A171.8-SOC Series
Summary of Contents for Murdock A171.8-SOC Series
- Page 1 15125 Proctor Ave, City of Industry, Federal MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Public Law Member of CA, 91746 U.S.A. 111-380 Phone 800-453-7465 or 626-333-2543 • Fax 626-855-4860 • www.murdockmfg.com...
- Page 2 STOP VALVE, P-TRAP, & ELECTRICAL OUTLET NOT SUPPLIED IMPORTANT: COOLERS MUST BE ATTACHED TO WALL WITH APPROPRIATE ANCHOR SCREWS MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Phone 800-453-7465 or 626-333-2543 • Fax 626-855-4860 • www.murdockmfg.com 7020-898-001...
- Page 3 2. Provide clear floor space as required. Adjust vertical dimensions as required to comply with federal, state, and local codes. Compliance is subject to the interpretation and requirements of the Local Code Authority. MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Phone 800-453-7465 or 626-333-2543 • Fax 626-855-4860 • www.murdockmfg.com...
-
Page 4: Installation
9. Warranty is voided if installation is not made following current Murdock Manufacturing installation instructions and if components are assembled to the fixture that is not approved by Murdock Manufacturing. 10. Fixture is to operate within a water pressure range of 20 PSIG (138 kPa) to 105 PSIG (724 kPa). Warranty is void if the unit is allowed to operate outside the range of 20 PSIG (138 kPa) to 105 PSIG (724 kPa). -
Page 5: Troubleshooting
Make sure the condenser fan motor is operative. The fan blade must turn freely to help remove the heat of compression. MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Phone 800-453-7465 or 626-333-2543 • Fax 626-855-4860 • www.murdockmfg.com... - Page 6 2. Excess dirt or poor ventilation will cause the compress` more frequently. 3. Periodically remove access panels and clean out in-line strainer. 4. Do NOT use harsh chemicals, abrasive or petroleum based cleaners. Use of these will void the Murdock Manufacturing warranty.
- Page 7 PLUG MALE & FEMALE WHITE QUICK DISCONNECTS PLUG FOUNTAIN SOLENOID VALVE MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Phone 800-453-7465 or 626-333-2543 • Fax 626-855-4860 • www.murdockmfg.com 7020-898-001 7 of 11 Revised: 06/01/2023 A...
-
Page 8: Push-In Fitting Installation
While holding the collet in, pull on the PE tubing to remove from the push-in fitting. COLLET MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Phone 800-453-7465 or 626-333-2543 • Fax 626-855-4860 • www.murdockmfg.com 7020-898-001... -
Page 9: Water Filter Installation
WAY TO MAKE A GOOD CONNECTION. CARTRIDGE EVAPORATOR PUSH-IN INLET, WHERE TUBE WAS REPLACEMENT. REMOVED. MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Phone 800-453-7465 or 626-333-2543 • Fax 626-855-4860 • www.murdockmfg.com 7020-898-001 9 of 11... - Page 10 [NOT TO SCALE] 15" [NOT TO SCALE] Repairs must be made with Murdock Manufacturing parts only. Please order through your local representative or distributor. MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Phone 800-453-7465 or 626-333-2543 • Fax 626-855-4860 • www.murdockmfg.com...
- Page 11 1895-121-000 1/4" O.D. TUBE UNION PUSH-IN 0711-450-001 2 STATION 9VAC WIRING HARNESS Repairs must be made with Murdock Manufacturing parts only. Please order through your local representative or distributor. MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Phone 800-453-7465 or 626-333-2543 •...
