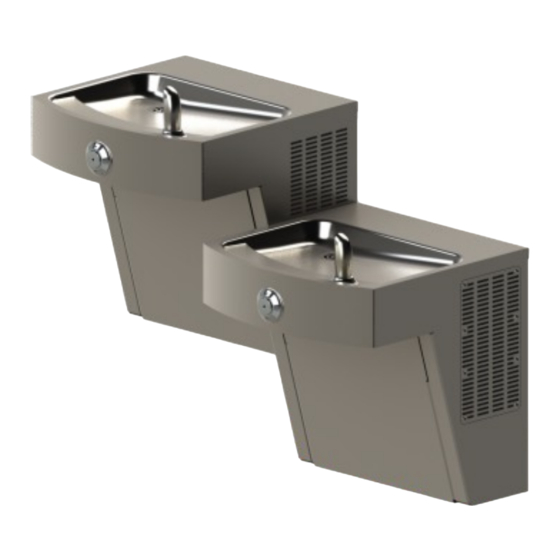

Vandal Resistance, Bi-Level, Wall Mounted Water Cooler
TECHNICAL ASSISTANCE TOLL FREE TELEPHONE NUMBER:
Technical Assistance E-Mail: fieldservice@acorneng.com
NOTES TO INSTALLER:
1. Please leave this documentation with the owner of the fixture when finished.
2. Please read this entire booklet before beginning the installation.
3. Check your installation for compliance with plumbing, electrical and other applicable codes.
4. IMPORTANT: Water supply to unit from RO Reverse Osmosis filtration systems will damage
fixture components and void product Warranty.
Murdock assumes no responsibility for use of void or
suspended data. © Copyright Murdock, City of
Industry, CA Member of Morris Group International.
Please visit www.murdockmfg.com for most
current specifications.
7020-928-001
Date: 06/01/2023 A
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
A172.8
Barrier Free, 14 Gage Stainless Steel, Enhanced
1.800.591.9360
NSF/ANSI/CAN 61
WATER COOLERS
FGVR
Series
(220V Compressor Only)
Federal
Public Law
111-380
(No Lead)
ANSI/ASHRAE 18
15125 Proctor Ave, City of Industry,
Member of
CA, 91746 U.S.A.
Phone 800-453-7465
www.murdockmfg.com
Advertisement
Table of Contents
Related Manuals for Murdock A172.8FGVR Series
Summary of Contents for Murdock A172.8FGVR Series
- Page 1 4. IMPORTANT: Water supply to unit from RO Reverse Osmosis filtration systems will damage fixture components and void product Warranty. Murdock assumes no responsibility for use of void or suspended data. © Copyright Murdock, City of Industry, CA Member of Morris Group International.
- Page 2 Provide clear floor space as required. Compliance is subject to the interpretation and requirements of the Local Code Authority. MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 • Fax 626-855-4860 • www.murdockmfg.com...
-
Page 3: Prior To Installation
Electrical outlet and furnished power cord with plug must be used to supply power to fixture. Do NOT wire compressor directly to the power supply. MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 •... -
Page 4: Installation
IMPORTANT! Thoroughly, inspect all unit connections for water leaks. 7. Assemble bottom cover to water cooler with screws furnished. MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 • Fax 626-855-4860 • www.murdockmfg.com... -
Page 5: Troubleshooting
Change the overload or relay if defective. MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 • Fax 626-855-4860 • www.murdockmfg.com... - Page 6 MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 • Fax 626-855-4860 • www.murdockmfg.com...
- Page 7 7003-193-000 (-VR) PUSHBUTTON RETURN SPRING WATER TO FLOW. 7000-052-000 RETAINING NUT MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 • Fax 626-855-4860 • www.murdockmfg.com 7020-928-001 A172.8FGVR Page 7 of 12...
- Page 8 FILTER DETAIL DETAIL 3.) CUT INSULATION AS REQUIRED TO COVER WATER TUBING MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 • Fax 626-855-4860 • www.murdockmfg.com 7020-928-001 Revised: 06/01/2023 A A172.8FGVR...
-
Page 9: Filter Cartridge Replacement
WATER INLET VALVE OPEN REPLACEMENT CARTRIDGE WATER INLET VALVE CLOSED MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 • Fax 626-855-4860 • www.murdockmfg.com 7020-928-001 A172.8FGVR Page 9 of 12... -
Page 10: Push-In Fitting Installation
While holding the collet in, pull on the PE tubing to remove from the push-in fitting. COLLET MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 • Fax 626-855-4860 • www.murdockmfg.com... - Page 11 31 foam insulation. NOTE: See next page for table of part numbers corresponding to drawing above. MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 • Fax 626-855-4860 • www.murdockmfg.com...
- Page 12 Repairs must be made with Acorn Engineering parts only. Please order through your local representative or distributor. The phone number to locate your local representative is 1.800.591.9360. MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 •...
