Summary of Contents for Kingfisher DELUXE APTKF3PH

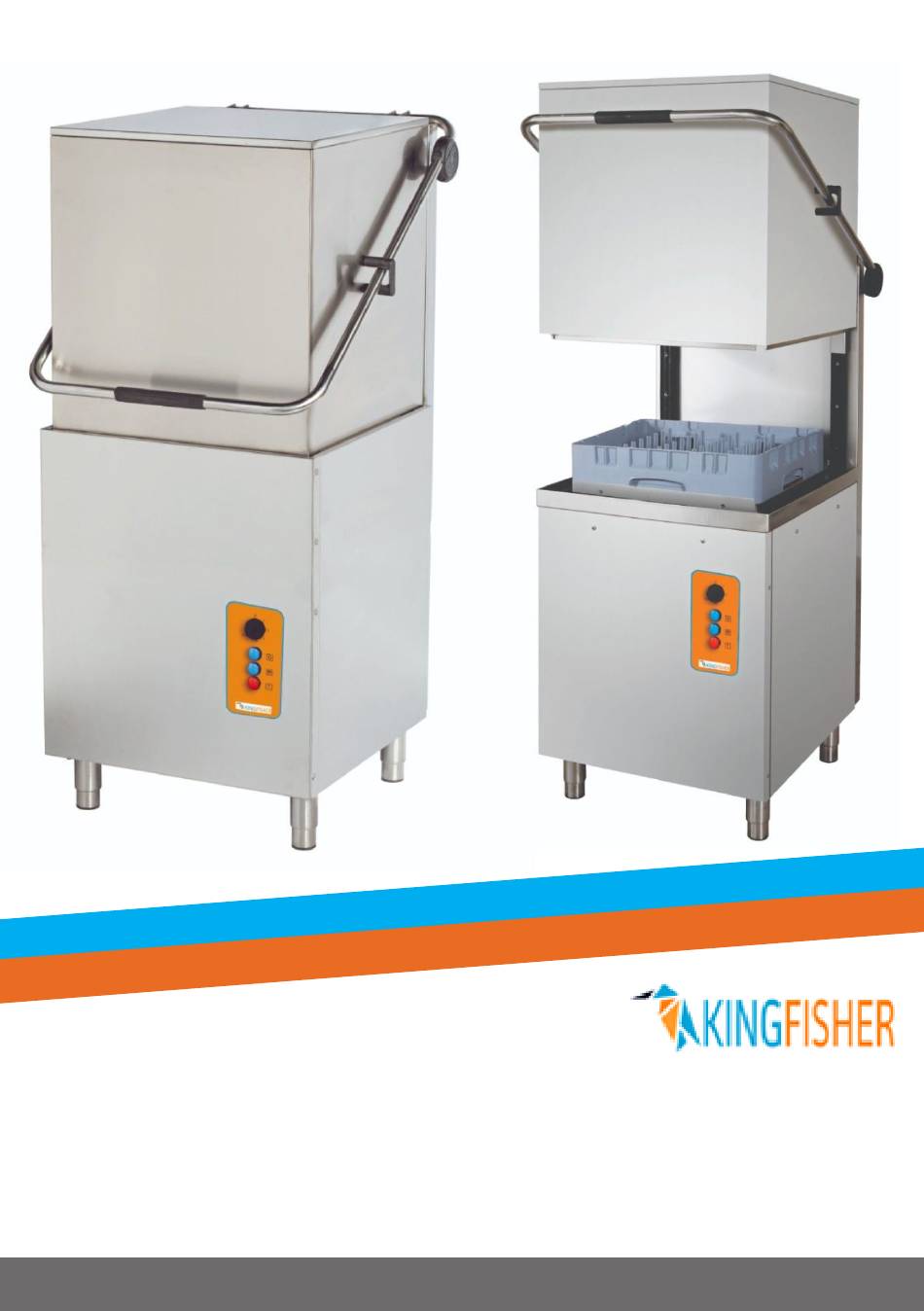

- Page 1 USER MANUAL FOR KINGFISHER DELUXE PASSTHROUGH DISHWASHER...
-
Page 2: Safety Instructions
INTRODUCTION Unpacking & Positioning This appliance is not designed to be moved by hand from area to area. It must be moved into position on a pallet with a forklift or other suitable lifting equipment before unboxing. Upon unwrapping, inspect the machine for damage immediately. If any issues are noticed, please contact the retailer directly. -
Page 3: Product Specifications
PRODUCT SPECIFICATIONS Model Dimensions (mm) Weight (kg) APTKF3PH 690W)x800(D)x1485(H) Technical Information Product Code APTKF3PH Capacity 2880 glasses or 1080 plates/hour Basket Dimensions 500x500mm Total Power 10.12kw Motor Power 1.10kw Boiler Heating Tank Heating Operating Voltage 400V 3 Phase or 240V 1 Phase Fuse Rating 25A (3 Phase) or 44A (1 Phase) Water Pressure... -
Page 4: General Information
GENERAL INFORMATION Before installing or using the appliance, read this quick start user manual carefully. Incorrect installation of the machine may damage the product, cause injury to people and invalidate your warranty. The company is not responsible for damage to the appliance because of incorrect use, negligence, wrong connections etc. - Page 5 The pipes will be labeled RINSE and DETERGENT. Ensure on the quality of chemicals used. that they are routed to the correct type of chemicals and Kingfisher has been tested with insert the tube to the liquid. Use a weight to make sure and always recommends the use of EntirePro.
-
Page 6: Operation
OPERATION Control Panel Overview 1. Bring the program selector switch from position "0" to position "1". a. This will turn the machine onto program 1. b. The machine will take the water into the tank and heat it up. c. When the water is ready, the ready light will come on 2. - Page 7 EXPLODED SPARE PARTS DIAGRAM Kingfisher Deluxe Passthrough Dishwasher DESCRIPTION DESCRIPTION DESCRIPTION SOCKET RAIL HEATING ELEMENT HANDLE PULLEY THERMOSTATS HOLDER SIGNAL LAMP FILTER HANDLE THERMIC SHELF TIMER CONTACTOR FOOT FASCIA SWITCH CONTACTOR SPRING PRESSURE SWITCH TIMER KNOB TENSION ROD SWITCH WITH PULLEY FITTING BEARING LIMITER...
- Page 8 EXPLODED SPARE PARTS DIAGRAM Kingfisher Deluxe Passthrough Dishwasher DESCRIPTION DESCRIPTION DESCRIPTION HOSE RINSE LINE CLIP SHAFT SUCTION FILTER FLANGE CLIP BOILER SUCTION FILTER CLIP WASH PUMP BOTTOM CLIP BODY CLIP HOSE FAUCET HEATING ELEMENT HOSE WASH ARM SOLENOID VALVE LIMITER RINSE ARM DRAIN HOSE TERMINAL...
