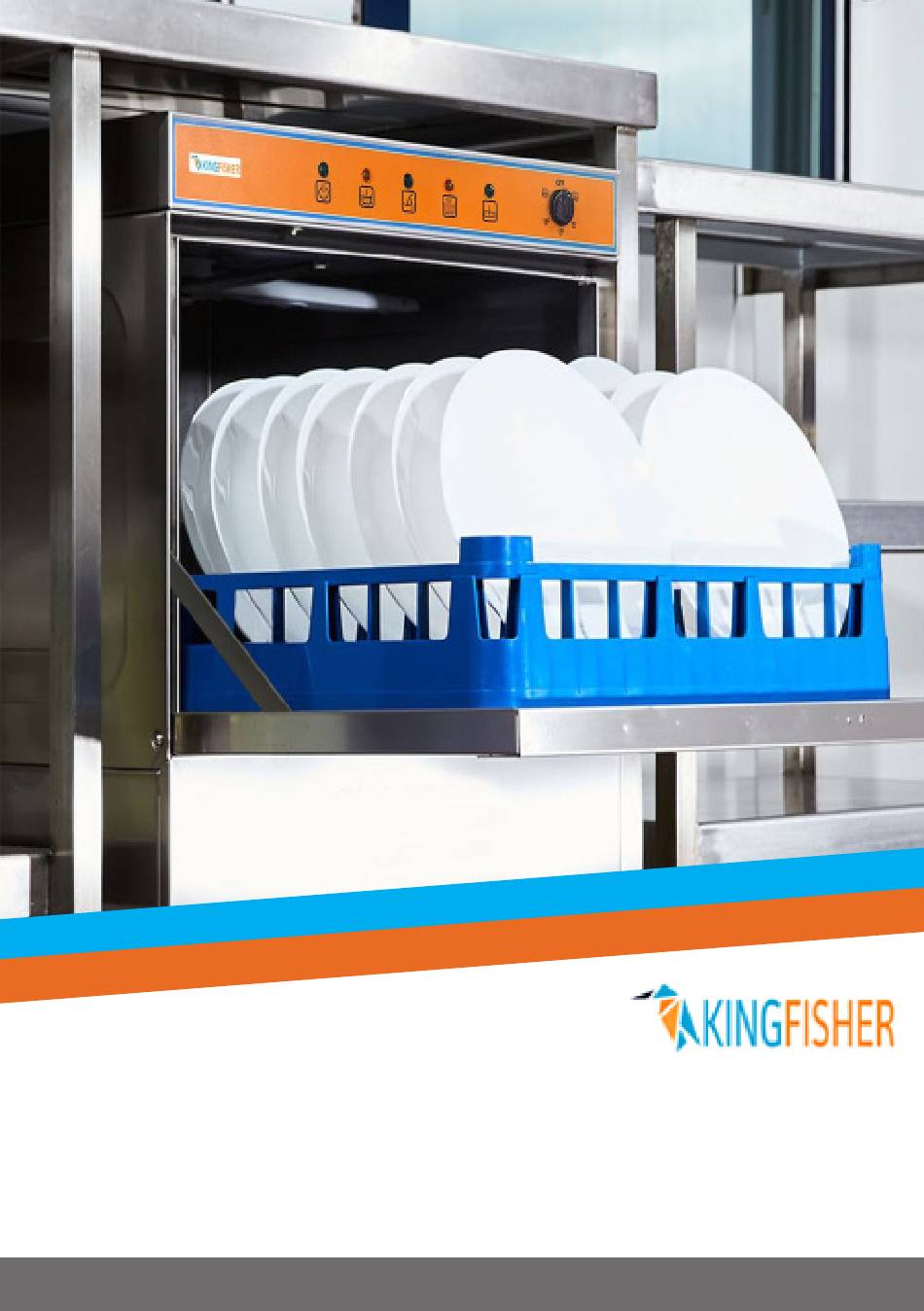

- Page 1 USER MANUAL QUICK START USER MANUAL KINGFISHER DELUXE UNDERCOUNTER GLASS & DISHWASHERS...
-
Page 2: Safety Instructions
INTRODUCTION Welcome to your new Kingfisher Deluxe Warewasher. This model refers to more than one type of unit in the range. For reference, refer to the product specifications overleaf to identify your appliance. Unpacking & Positioning This appliance is not designed to be moved by hand from area to area. It must be moved into position on a pallet with a forklift or other suitable lifting equipment before unboxing. -
Page 3: Technical Information
PRODUCT SPECIFICATIONS Model Dimensions (mm) Weight (kg) Packaging Dimensions KF500 590x700x820 725x650x970 Technical Information Product Code KF500 Basket Dimensions 500x500mm Total Power Motor Power 0.55kw Boiler Heating 2.5kw Tank Heating 2.5kw Operating Voltage 230v Fuse Rating Water Pressure 2-4 bar... -
Page 4: Installation
6. The appliance should only be repaired by authorised service personnel. For further assistance, please call our UK service partner on 01279 876 500 or write an email to service@buzzsupplies.co.uk INSTALLATION All Kingfisher Deluxe glass washers & dishwashers are supplied with the following: IMPORTANT Please take care when unpacking the unit as the feet do not come pre- 1. -
Page 5: Connecting To Electrical Supply
The grey ribbed waste hose will need to be connected to your waste outlet. All Kingfisher deluxe machines are fitted as standard with a drain pump. However, you must ensure the waste outlet is not higher than three quarters of the hight of the unit as this will prevent the pump from operating correctly. -
Page 6: Control Panel Overview
OPERATION Control Panel Overview Filling the machine 1. Using the Black Dial on the right hand side. Turn to position 1. 2. The unit will then fill with water, after a short while this will stop at the required level and automatically start to heat the boiler and tank. -
Page 7: Starting A Wash Cycle
Starting a wash cycle 1. Ensure that all items receive a pre rinse before going through the wash cycle. This is to ensure no grease/grime or excess food stuff goes into the wash tank. 2. Place the items in the basket ensuring there is nothing poking through the holes in the basket that may interfere with the bottom wash/rinse arm rotation. -
Page 8: General Tips
Maintenance General Tips Drain & replenish the water in the water tank at least once a day. You may need to do this more regularly if it becomes dirty during operation. Before putting dishes into the appliance, we advise that you prewash them by rinsing with cold or warm water over a sink. -
Page 9: Temperature Control Settings
Front Service Panel Commonly configurations can easily be changed by the user underneath the front service panel. This can be removed by unscrewing the two screws located at the bottom front of the machine. Scan the QR code to watch the video of each below: Temperature Control Settings: https://youtu.be/ogs8bIjPP6A Detergent/Rinse Aid Dosing Settings:... - Page 10 Spare Parts List...
-
Page 12: Electrical Circuit Diagram
Electrical Circuit Diagram... -
Page 13: Warranty And Repair
Warranty & Repair Warranty repairs must only be conducted by authorised service personnel. For more information please contact the UK distributor of your machine: Buzz Supplies Ltd Unit F, Woodside Ind. Estate Bishop’s Stortford Hertfordshire CM23 5RG T: 01279 876 500 E: Service@buzzsupplies.co.uk...
