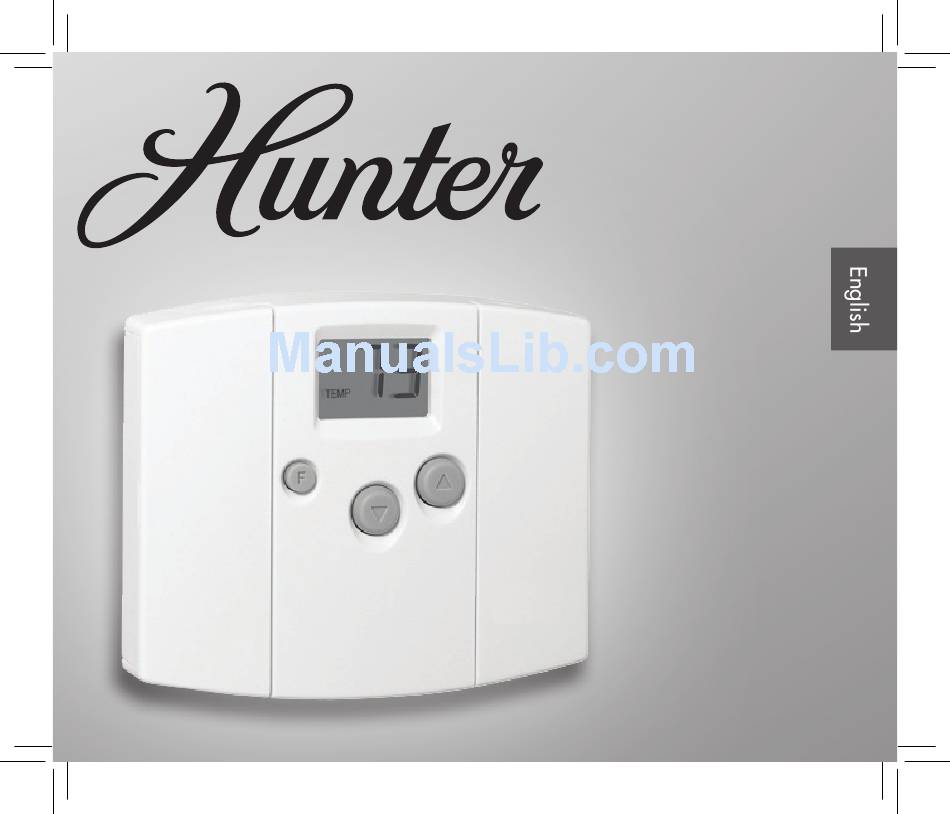

Owner's Manual

Model

42177W

Form# 44043-01

20100219

Table of Contents

Summary of Contents for Hunter 42177

Page 2: Table Of Contents
Table Of Contents At A Glance Know Your Thermostat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Installation Remove Old Thermostat .
Page 3 Your new Hunter thermostat will provide years of reliable service. Using this digital thermostat will provide more uniform comfort in your home through the seasons. Thank you for buying a Hunter product! Please read this manual for complete instructions on installing and operating your thermostat.
Page 4: At A Glance
At A Glance Know Your Thermostat 1. Reset: Press with a paper clip to reset the thermostat and return to power-up settings. 2. System Switch: Selector switch for Heat, Cool, and Off. 3. Fan Switch: Fan switch for Automatic or Continuous fan operation.. 4.
Page 6 At A Glance Know Your Thermostat 1. Displays the thermostat is showing the temperature in Celsius of Farenheit. 2. When displayed, this warning indicates your furnace filter may need to be checked or replaced. 3. Displays the thermostat is set to run HEAT or COOL. 4.
Page 8: Installation
Installation Remove Old Thermostat CAUTION: Do not remove any wiring from existing thermostat before reading the instructions carefully. Wires must be labeled prior to removal. IMPORTANT! Turn off the power to the furnace at the main power panel or at the furnace. Remove existing thermostat cover and thermostat.
Page 9 Installation Remove Old Thermostat Wallplate Thermostat Cover Wallplate Thermostat Cover Figure 1. ©2010 Hunter Fan Company...
Page 10: Wiring Documentation
Installation Wiring Documentation Use table A. to write down your wire colors and the letter designations on the old thermostat. This will allow you to keep a record of your old thermostat’s wiring configuration should you need to refer to it at a later time. This will also help our Technical Support Department determine your system type and proper wiring, should you need to contact them.
Page 12: Wiring Labeling
Installation Wiring Labeling Table B. on this page will help you label your wires one at a time from your old thermostat. Use the included terminal stickers to label the wires and remove each wire from the thermostat once it is labeled. To ensure wires do not fall back into the wall hole, you may tape them to the wall, or wrap them around a pencil.
Page 13 RH, R, VR or 4 24 Volt RC, VC 24 Volt Cool G or F Y, C or M Air Conditioning Compressor W or H Heating Table B. ©2010 Hunter Fan Company...
Page 14: Mount Wallplate And Thermostat
Installation Mount Wallplate and Thermostat Remove the wallplate from your thermostat by pressing the release tab on the bottom of the thermostat. 44043-01 • 02/19/2010...
Page 16 Installation Mount Wallplate and Thermostat 1. Position wallplate on wall and pull existing wires through large opening. Then level for appearance. Mark holes for plastic anchors provided, if your existing holes do not line up with those on the wallplate. 2.
Page 18 Installation Mount Wallplate and Thermostat Match and connect the labeled wires to the appropriate coded terminal screws on the wallplate. Ignore any wires which may be present, but which were not connected to the old thermostat. * Refer to the Wiring Diagrams below to be sure your system is wired correctly. * Be sure to tighten the terminal screws securely, otherwise a loose wire could cause operational problems with your system or thermostat.
Page 20: Wiring Diagrams
Installation Wiring Diagrams 4-wire Heat/Cool System Wallplate Jumper Terminals Heat Relay Cool Heat/Cool Relay or Valve Contactor 24V Supply 5-wire Heat/Cool System Wallplate Terminals No Jumper Heat Relay Cool Heat 24V Cool 24V Relay or Valve contactor Supply Supply 44043-01 • 02/19/2010...
Page 21 Installation Wiring Diagrams 3-wire Heat Only System Wallplate Jumper Terminals Heat Relay Heat 24V or Valve Relay Supply 2-wire Heat Only System Wallplate Jumper Terminals Heat 24V or Heat Relay Millivolt Supply or Valve ©2010 Hunter Fan Company...
Page 22: Selector Switches
Installation Selector Switches 1. F°/C° selector (Fahrenheit / Celsius): Your thermostat is set for F° mode from the factory. In order to change to C° mode, slide the switch to C° and press the reset button on front of the thermostat with a paper clip.
Page 24: Operation
Operation Selector Switches The System Selector switch on the front of the thermostat determines the operating mode of the thermostat. You may select COOL, OFF, HEAT. NOTE: Anytime you install or remove the thermostat from the wallplate, slide the System Selector to the OFF position to prevent the possibility of a rapid system On-Off.
Page 25: Set Temperature
Press either the up or down key for less than 1 second to see the Set Temperature. The factory default is 68°F (20°C) when started with the System Switch Off or Heat, and 78° (26°C) when started with the System Switch on Cool. ©2010 Hunter Fan Company...
Page 26: Filter Monitor
Operation Filter Monitor The thermostat counts the number of hours your system’s filter has been in use. To maximize your system’s performance and energy efficiency, change or clean your filter regularly. When the total system run time for heat and cool reaches 400 hours, the Filter Change Indicator will flash as a reminder to check your system’s filter.
Page 27: Span Setting
The Span settings remain the same for both HEAT and COOL, and can be changed in any System Switch position. When batteries are installed in the thermostat, or the Reset key is pressed, the Span is reset back to setting 2. ©2010 Hunter Fan Company...
Page 28: Low Battery Warning
Operation Low Battery Warning Your thermostat has a two-stage low battery warning system. When the batteries are first detected to be weak, the first stage low battery warning is indicated by battery symbol flashing on the LCD display. At your earliest convenience, you need to replace the batteries with 2 new AA alkaline batteries.
Page 29: Error Mode
Next, use a paper clip to press the RESET button next to the keypad. You will need to reprogram your thermostat and confirm normal operation. If Error Mode returns, please call Technical Support at 1-888-830-1326 for further information. ©2010 Hunter Fan Company...
Page 30: Features
Features Additional Features Auto Cut Off Your thermostat will automatically cutoff in Heat mode if the room temperature rises above 95°F (35°C). It will cutoff in Cool mode if the room temperature drops below 45°F (7°C). Note that if your system has malfunctioned and no longer responds to thermostat controls, the Auto Cut-Off will have no effect.
Page 31: Troubleshooting
2. Press RESET button with a small pin and hold in for two seconds. Problem: Entire Display Dims. Solution: 1. Replace Batteries. Problem: Auto / Fan does not turn on. Solution: 1. Move HG/HE switch to opposite position. ©2010 Hunter Fan Company...
Page 32 Thermostat Assistance Troubleshooting Problem: Heating or Cooling Does Not Go On or Off. Solution: 1. Check that the function switch is in the correct position (“HEAT” or “COOL”). 2. There may be as much as 4-minute delay before the system turns On - wait and check.
Page 33: Thermostat Assistance
Thermostat Assistance Technical Support If you need any assistance with installion or setup of your new Hunter Thermostat, please call us, our technical support staff are ready to help! USA: 1-888-830-1326 Canada: 1-866-268-1936 Hours of operation are from 7:00 am to 7:00 pm Monday - Friday and 8:00 am to 5:00 pm on Saturday, Central Time.
Page 34: Warranty
PARTICULAR PURPOSE, IN RESPECT TO YOUR HUNTER THERMOSTAT IS LIMITED TO THE PERIOD OF THE EXPRESS WARRANTY SET FORTH ABOVE. This warranty is voided if your Hunter Thermostat is not purchased and used in the USA. This warranty excludes and does not cover defects, malfunctions or...
Page 35 Goodlett Farms Pkwy Suite 400, Memphis, TN 38016. You will be responsible for all insurance and freight or other transportation charges to our factory. We will return your Hunter Thermostat freight prepaid. Your Hunter Thermostat should be properly packed to avoid damage in transit since we will not be responsible for any such damage.
