- Page 1 Owner’s Manual 5 MINUTE I N S T A L L A T I O N Non Programmable Models 42122 42177 Form# 44047-01 20100413 ©2010 Hunter Fan Co.
-
Page 2: Table Of Contents
Additional Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 0 Thermostat Assistance Troubleshooting and Support . - Page 3 • The thermostat temperature can be set in increments of 1°F (1°C). • After 15 minutes without a key press, the thermostat will return to the home display screen and save any changes you have made. If you need any assistance with installion or setup of your new...

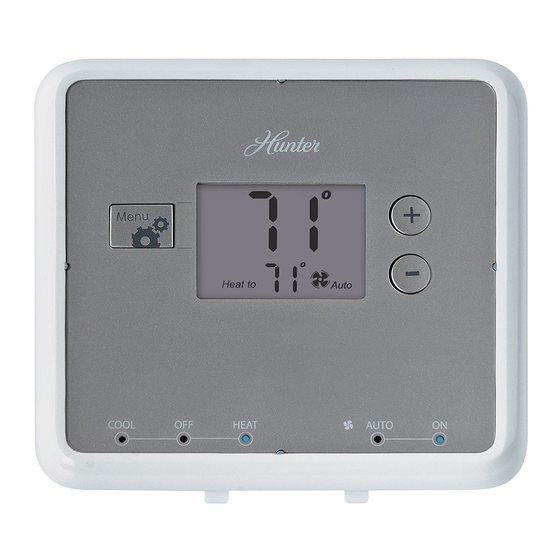

- Page 4 At A Glance Know Your Thermostat 1. Allows access to the advanced features of the thermostat and saves changes to the menu options. 2. Adjusts time and temperature settings as well as moving up or down menu lists. 3. Indicates whether the system is set to Heat, Cool, or Off.
- Page 5 At A Glance Know Your Thermostat ©2010 Hunter Fan Company...
- Page 6 2. HE/HG Switch - allows you to set your furnace to Gas/Oil or Electric, based on the type of system you have. 3. Allows your thermostat to operate your HVAC system* properly by indicating the system type that you have.
- Page 7 At A Glance Know Your Thermostat ©2010 Hunter Fan Company...
- Page 8 2. C will display when in Celsius mode. Nothing will display when set to Fahrenheit. 3. Low battery warning, replace the batteries in the thermostat. 4. Will show when your heat pump or system is reporting a problem to the thermostat.
-
Page 9: At A Glance
At A Glance Know Your Thermostat Filter Sys. Heat Cool to Auto ©2010 Hunter Fan Company... -
Page 10: Setup
Setup Setting Temperature Once you install the batteries, the thermostat will display the home screen. 1. Set the system switch to Heat or Cool depending on your season. 2. Use the button to activate the thermostat. 3. Press the buttons again to adjust your set temperature. - Page 11 Setup Setting Temperature Heat to Auto Updated! ©2010 Hunter Fan Company...
-
Page 12: Alerts 1
Features Alerts This chapter will outline the various alerts the thermostat will report to you and how to respond to them. 1. Low Battery: This icon will appear when your batteries are starting to run low on power and should be changed to avoid system interruptions, (Figure 1) Change the batteries by gripping the sides of the thermostat firmly and pulling straight back, (Figure 1a). -
Page 13: Features
Features Alerts Heat to Filter Heat to Auto ©2010 Hunter Fan Company... - Page 14 Features Alerts 3. Auxiliary Heat: On multi-stage heat pumps this alert indicates your second stage heat is running. 4. Check System: Some heat pump systems are equipped with the ability to check system performance, indicated by the presence of an “L” wire attached to the backplate. This icon will flash on screen to alert the user that the heat pump is reporting a problem with the system.
- Page 15 Features Alerts Sys. Aux. Heat to Heat to Auto Auto ©2010 Hunter Fan Company...
-
Page 16: Menu Options
Under your menu options you have the ability to reset your filter counter, span settings, and temperature measurement. After making changes to each menu option, the thermostat will show “Updated”, save your changes, and move you back to the home screen. - Page 17 Filter Span 1 Span 2 Filter Span 1 Span 2 ©2010 Hunter Fan Company Menu Options Filter Span 1 Span 2 Span 1 Features...
- Page 18 Menu Options Example: If your thermostat is set to turn on at 72 a span setting of 2, your thermostat will activate your furnace at 71 shut it down when it reaches 73 2, your air conditioner will activate at 73 setting can be changed to 1, 2, or 3.
- Page 19 Features Menu Options Span 2 ©2010 Hunter Fan Company...
-
Page 20: Additional Features
System Protection To protect your system from cycling, system turning on and off rapidly, your thermostat will prevent your system from turning back on for up to 3 minutes after it has been shut down. Reset... -
Page 21: Thermostat Assistance
2. Check the fan setting and make sure that it is not set to off. Problem: Fan runs continuously. Solution: 1. Check fan setting to see if it is set to on. 2. Move HG/HE switch to opposite position. ©2010 Hunter Fan Company... - Page 22 Thermostat Assistance Troubleshooting and Support Problem: Heating or cooling does not turn on or off. Solution: 1. Check the system is in the right mode (heat or cool). 2. Be sure to wait up to 4 minutes for system protection if your system was just on.
-
Page 23: Technical Support
Troubleshooting and Support Technical Support If you need any assistance with installation or setup of your new Hunter thermostat, please call us. Our technical support staff is ready to help! USA: 1-888-830-1326 Canada: 1-866-268-1936 Hours of operation are from 7:00 am to 7:00 pm Monday - Friday and 8:00 am to 5:00 pm on Saturday, Central Time. -
Page 24: Warranty
Thermostats LIMITED WARRANTY The Hunter Fan Company warrants your Hunter Thermostat to be free from defects in material or workmanship for a period of one year from the date of sale to the original user or consumer purchaser. If your Hunter Thermostat malfunctions or fails within the warranty period because of a defect in material or workmanship, we will replace it. - Page 25 This warranty neither applies to batteries nor to deterioration of, nor damage to the product caused by the use of faulty batteries. Return your product, along with proof of purchase to Hunter Fan Company Service Department, 7130 Goodlett Farms Pkwy Suite 400, Memphis, TN 38016.
