Next Level Racing F-GT PRO Instruction Manual

Direct monitor mount
Hide thumbs Also See for F-GT PRO:

Advertisement

Available languages
  • EN

Available languages

  • ENGLISH, page 1

Quick Links

Download this manual
T A K E R A C I N G T O T H E N E X T L E V E L®
Video Instruction: bit.ly/nlrbuild

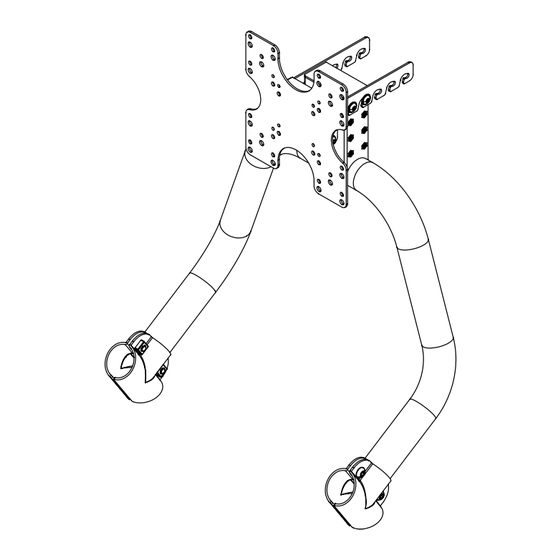

DIRECT MONITOR MOUNT
INSTRUCTION MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the F-GT PRO and is the answer not in the manual?

Questions and answers

Related Manuals for Next Level Racing F-GT PRO

Summary of Contents for Next Level Racing F-GT PRO

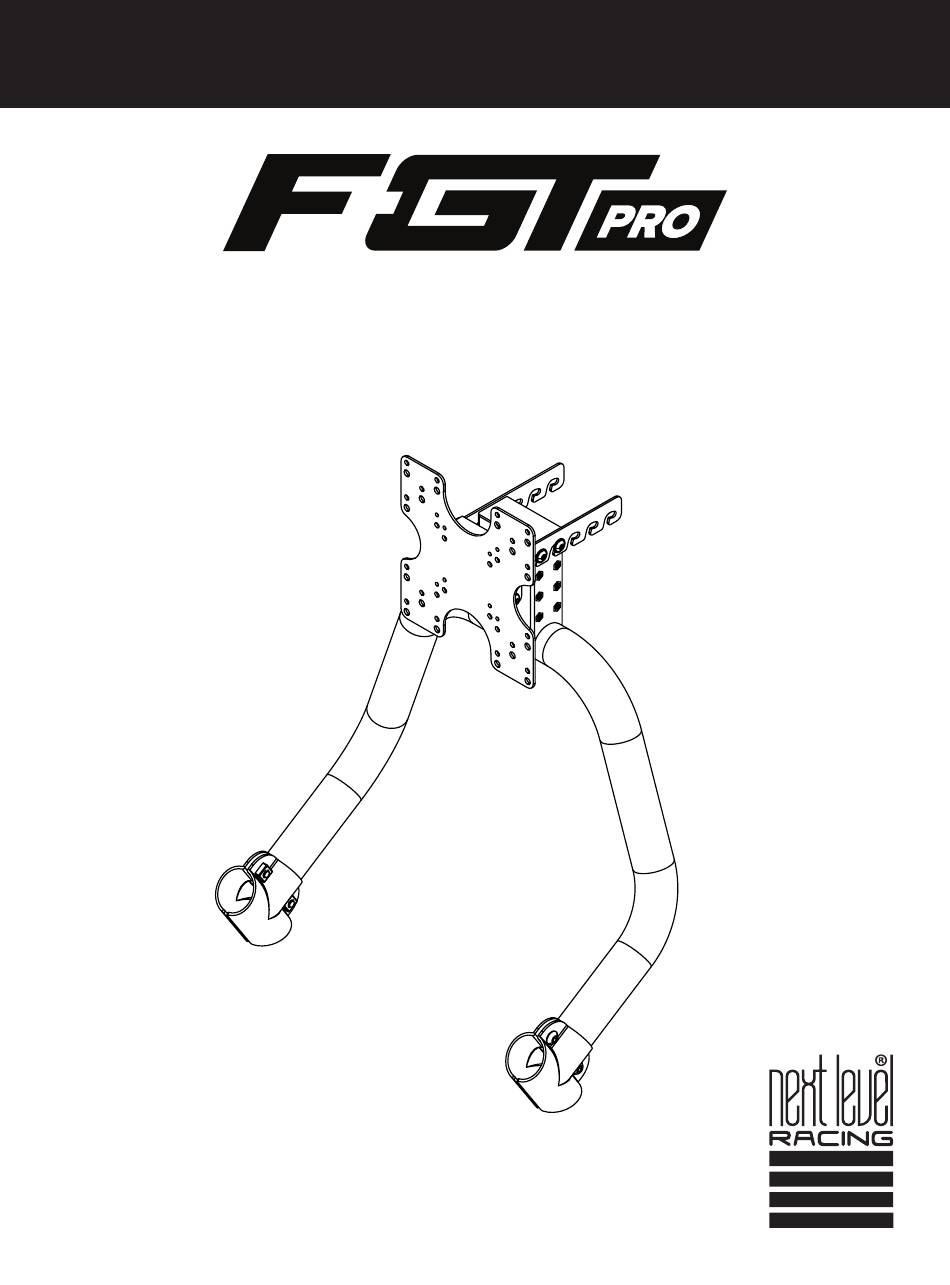

  • Page 1 T A K E R A C I N G T O T H E N E X T L E V E L® Video Instruction: bit.ly/nlrbuild DIRECT MONITOR MOUNT INSTRUCTION MANUAL...
  • Page 2 We know you’re eager to start racing! Take your time with the instructions and follow this guide to assemble your product. You’ll be setting yourself up for success by following the instruction booklet to fully optimize your product. ASSEMBLY VIDEO bit.ly/nlrbuild @next_level_racing @nextlevelracingOfficial @nextlvlracing Next Level Racing FOLLOW support@nextlevelracing.com...
  • Page 3 Video Instruction: bit.ly/nlrbuild T A K E R A C I N G T O T H E N E X T L E V E L® N E X T L E V E L R A C I N G . C O M...
  • Page 4 Take care when making adjustments while electronics are mounted. • Mount monitor at own risk. Next Level Racing is not responsible nor liable for any cost, damage, harm, or loss to personal property. By mounting the monitor, you also agree to release Next Level Racing from any liability for injury, harm or loss you might suffer regardless of how it is caused.
  • Page 5 Video Instruction: bit.ly/nlrbuild IN THE *NOT TO SCALE NOTE: Some Items Come with Rust Resistant Coating 2 x SETS OF SUPPORT ARM BRACKETS 1 x SUPPORT ARM 1 x VESA PLATE 1 x VESA MOUNT 4 X M8 WASHER 4 x M8 16mm BUTTON HEAD BOLT 4 x M10 SQUARE NUT 4 X M10 30mm BUTTON HEAD BOLT ELECTRONICS HARDWARE...

  • Page 6: Mounting Locations

    support@nextlevelracing.com MOUNTING LOCATIONS VESA PLATE *NOT TO SCALE* PRODUCT LEGEND: NOTE: ALL DIMENSIONS IN MM VESA MOUNT CONFIGURATIONS (SMALLER HOLES) VESA MOUNT CONFIGURATIONS (LARGER HOLES)
  • Page 7 Video Instruction: bit.ly/nlrbuild PARTS: • • 1 x Set of Support Arm Brackets • • 2 x M10 30mm Button Head Bolts • • 2 x M10 Square Nuts Tip: Do not fully tighten Bolts yet. A) Align first Set of Support Arm Brackets on the Front Frame of the cockpit as shown above. B) Bolt through Support Arm Brackets and loosely secure using M10 Bolts and Square Nuts.
  • Page 8 support@nextlevelracing.com PARTS: • • 1 x VESA Plate • • 1 x VESA Mount • • 4 x M8 16mm Button Head Bolts • • 4 x M8 Washers Tip: If monitor has 75x75mm or 100x100mm mounting holes, mount VESA Plate to rear of monitor before attaching VESA Mount.
  • Page 9 Video Instruction: bit.ly/nlrbuild PARTS: • • NIL Make minor adjustments to level out monitor. Then tighten Bolts indicated above to secure monitor in place. ADJUSTMENTS PARTS: • • NIL Loosen or remove the Bolts indicated above and change the Direct Monitor Mount Assembly to your desired Height, Angle and Position.
  • Page 10 Take care when making adjustments while electronics are mounted. Mount monitor at own risk. Next Level Racing is not responsible nor liable for any cost, damage, harm, or loss to personal property. By mounting the monitor, you also agree to release Next Level Racing from any liability for injury, harm or loss you might suffer regardless of how it is caused.
  • Page 11 • Soyez prudent lorsque vous effectuez des réglages alors que les composants électroniques sont montés. • Montez le moniteur à vos propres risques. Next Level Racing n’est pas responsable des coûts, dommages, préjudices ou pertes de biens personnels. En montant le moniteur, vous acceptez également de dégager Next Level Racing de toute responsabilité...
  • Page 12 • Monteer de monitor op eigen risico. Next Level Racing is niet verantwoordelijk of aansprakelijk voor kosten, schade, letsel of verlies aan persoonlijke eigendommen. Door de monitor te monteren, stemt u er ook mee in Next Level Racing te vrijwaren van elke aansprakelijkheid voor letsel, letsel of verlies dat u zou kunnen lijden, ongeacht hoe het is veroorzaakt.
  • Page 13 • Prestare attenzione quando si effettuano regolazioni mentre i componenti elettronici sono montati. • Montare il monitor a proprio rischio. Next Level Racing non è responsabile per alcun costo, danno, lesione o perdita di proprietà personali. Montando il monitor, accetti inoltre di esonerare Next Level Racing da qualsiasi responsabilità per lesioni, danni o perdite che potresti subire indipendentemente da come siano causati.
  • Page 14 • Tenga cuidado al realizar ajustes mientras los componentes electrónicos están montados. • El montaje del monitor se realiza bajo su propio riesgo. Next Level Racing no es responsable de ningún coste, daño, perjuicio o pérdida de propiedad personal. Al montar el monitor, también acepta liberar a Next Level Racing de cualquier responsabilidad por lesiones, daños o pérdidas que pueda sufrir, independientemente...
  • Page 15 • Gehen Sie bei Anpassungen bei montierter Elektronik vorsichtig vor. • Die Montage des Monitors erfolgt auf eigenes Risiko. Next Level Racing ist weder verantwortlich noch haftbar für Kosten, Schäden, Verletzungen oder Verluste an persönlichem Eigentum. Durch die Montage des Monitors erklären Sie sich außerdem damit einverstanden, Next Level Racing von jeglicher Haftung für Verletzungen, Schäden oder Verluste freizustellen, die Sie erleiden könnten, unabhängig davon, wie diese verursacht wurden.
  • Page 16 • さらにサポートが必要な場合は、 インストールビデオを参照するか、 support@nextlevelracing.com までお問い合わせください。 • 部品を無理に押し付けないでください。 • ボルトのねじ山が交差しないようにしてください。 • ダイレクトモニターマウントに追加の荷物を掛けないでください。 • 電子機器を取り付けた状態で調整を行う場合は注意してください。 • モニターの取り付けは自己責任で行ってください。 Next Level Racing は、 個人所有物に対するいかなる費用、 損害、 危害、 損失についても責任を負いません。 モニターを取り付 けることにより、 原因を問わず、 お客様が被る可能性のある傷害、 危害、 損失に対する責任を Next Level Racing から免除することに同意するものとします。 製品に関するサポートが必要な場合は、 support@nextlevelracing.com までお問い合わせください。 警告 窒息の危険 小さな部品があるため、 3 歳未満のお子様や、 食べられないものを口に入れる癖のある方には適していません。...
  • Page 17 • Tenha cuidado ao fazer ajustes enquanto os componentes eletrônicos estiverem montados. • Monte o monitor por sua conta e risco. A Next Level Racing não é responsável nem responsável por qualquer custo, dano, prejuízo ou perda de propriedade pessoal. Ao montar o monitor, você também concorda em isentar a Next Level Racing de qualquer responsabilidade por ferimentos, danos ou perdas que você...
  • Page 18 • Будьте осторожны при выполнении регулировок, пока электроника установлена. • Устанавливайте монитор на свой страх и риск. Next Level Racing не несет ответственности за любые расходы, ущерб, вред или потерю личного имущества. Устанавливая монитор, вы также соглашаетесь освободить Next Level Racing от любой ответственности за травмы, вред или потерю, которые...
  • Page 19 • Elektronik aksamlar monte edilmiş haldeyken ayarlama yaparken dikkatli olunmalıdır. • Monitörü kendi riskinizle monte edin. Next Level Racing, kişisel mülke gelebilecek herhangi bir maliyet, hasar, zarar veya kayıptan sorumlu veya yükümlü değildir. Monitörü monte ederek, Next Level Racing’i, nasıl meydana gelirse gelsin, yaşayabileceğiniz herhangi bir yaralanma, zarar veya kayıptan doğan yükümlülükten muaf tutmayı...
  • Page 20 • Montáž monitoru na vlastní nebezpečí. Next Level Racing nenese odpovědnost ani neručí za žádné náklady, poškození, poškození nebo ztrátu osobního majetku. Namontováním monitoru také souhlasíte s tím, že zprostíte Next Level Racing jakékoli odpovědnosti za zranění, újmu nebo ztrátu, kterou byste mohli utrpět, bez ohledu na to, jak byly způsobeny.
  • Page 21 • Należy zachować ostrożność podczas dokonywania regulacji przy zamontowanej elektronice. • Montujesz monitor na własne ryzyko. Next Level Racing nie ponosi odpowiedzialności za jakiekolwiek koszty, szkody, obrażenia lub straty w mieniu osobistym. Montując monitor, zgadzasz się również zwolnić Next Level Racing z wszelkiej odpowiedzialności za obrażenia, szkody lub straty, których możesz doznać, niezależnie od tego, w jaki sposób zostały spowodowane.
