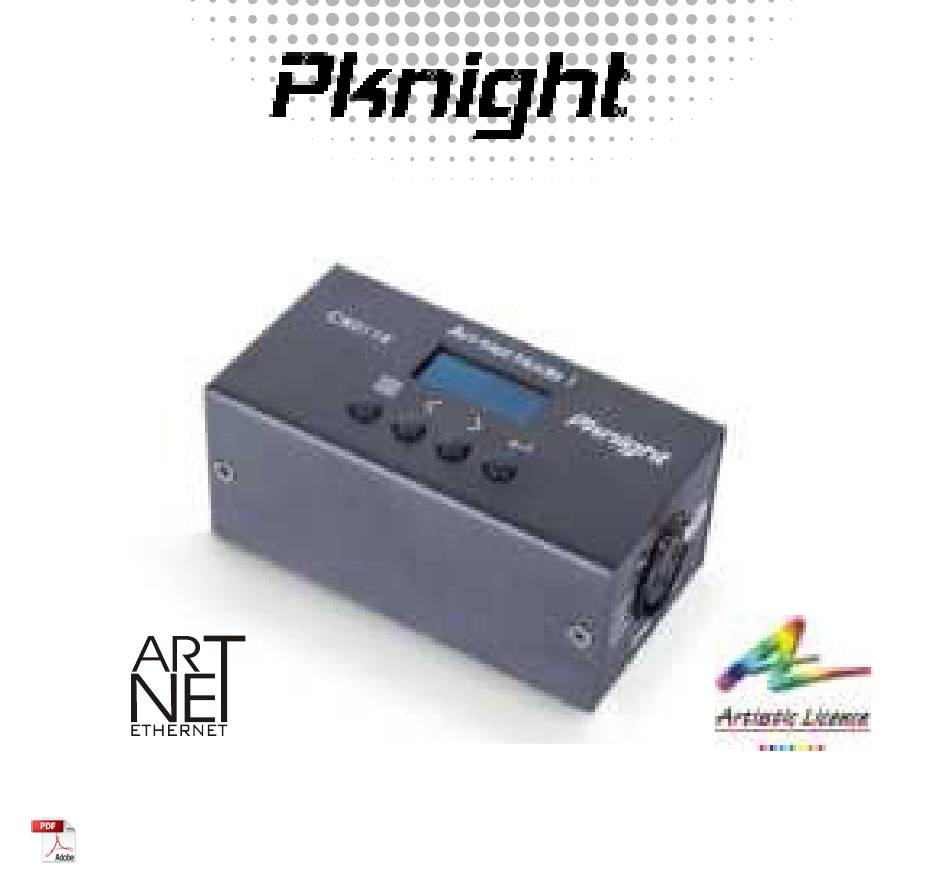

- Page 1 Art-Net <-> DMX512 Network Converter CR011R Art-Net ™ Designed by and Copyright Artistic Licence Holdings Ltd...
-
Page 2: Table Of Contents
Contents 1. Introduction..................03 2. Customer Support: ................03 3. Technical Specs...................04 4. Name Your buddy................05 5. Oled Control System................06 6. Front and Rear Panel................07 7. Settings..................08~11 7.1 Menu setting parameter............08 7.2 Table 1 ..................09 7.3 Table 2 ..................10 7.4 Error Message and solutions..........11 8.Troubleshooting................11~12... -
Page 3: Introduction
(DMX-Workshop), very easy to set up. 2. Customer Support: Pknight Products,LLC provides a toll free customer support,to provide set up help and to answer any question should you encounter problems during your set up or initial operation.You may also visit us on the web at... -
Page 4: Technical Specs
3. Technical Specs 5Vdc / 500ma Power input: Input signal: Artnet / DMX512 Output signal: DMX / 512Artnet DMX channels: 1 universe / 512 channels DMX connection: 3-pin XLR female Network connection: RJ45 network card speed: 100Mbps Isolation ethernet port: Total Isolation Isolation power input: Total Isolation -30 ℃... -
Page 5: Name Your Buddy
4. Name Your buddy Download the app ： DMX-Workshop from www.artisticlicence.com/product/dmx-workshop/ Video tutorial... -
Page 6: Oled Control System
5. Oled Control System Oled Screen Meun Button Click to switch the menu option Backward or Minus Button To go backward or minus in the selected function or parameter Forwardward or Plus Button To go forward or plus in the selected function or parameter Enter Button Click to choose function or parameter *Note*... -
Page 7: Front And Rear Panel
6. Front and Rear Panel Blue LED Indicator RJ45 Port (ArtNet In/Out) --Stays off always: Standby mode, waiting to --Green LED on the left : link LED operate in dmx-(in/out) mode --Green LED on the right : Activity LED --Stays on always (no blinking): signifies dmx- Blink Fast~There is activity on this port out mode, now the unit will convert Artnet Off~NO Data... -
Page 8: Settings
7. Settings 7.1 Menu setting parameter display function option details < Local IP > Set the ip address of the device <Subnet Mask> Set the subnet mask of the device <Port universe> Set the universe of the device < Port SubNet> Set the subnet of the device <... - Page 9 7.2 Table 1 Recommended Network Parameters IP addr subnet mask Broadcast address 2.x.x.x 255.0.0.0 2.255.255.255 10.x.x.x 255.0.0.0 10. 255.255.255 192.168.x.x 255.255.255.0 192.168.x.255 note: • "x" refer to range 0~255. • the last digit can not be 255 or 0 • The ip address cannot be the same as the broadcast address •...
- Page 10 7.3 Table 2 Port Address Parameters Port addr value 0~127 SubNet 0~15 Port Universe 0~15 Artnet 4 Available Art-Net 4 was released in September 2016. It is the most powerful and flexible version to date and, in recognition of this fact, gained a PLASA Award for Innovation.
-
Page 11: Error Message And Solutions
7.4 Error Message and solutions Display Reason Solution !!Local ip: hosted Set the host address change the 0 to other can’t is 0!! to 0 number change ip address ， !Local ip: hosted Set the IP address can’t all is 1! to the same as the Different from the broadcast broadcast address... - Page 12 • Set the subnet number There are 16 subnets in Artnet which is ranged from 0 to 15. Select the subnet number you want to set. • Set the net number There are 128 nets in Artnet which is ranged from 0 to 127. Select the net number you want to set.
