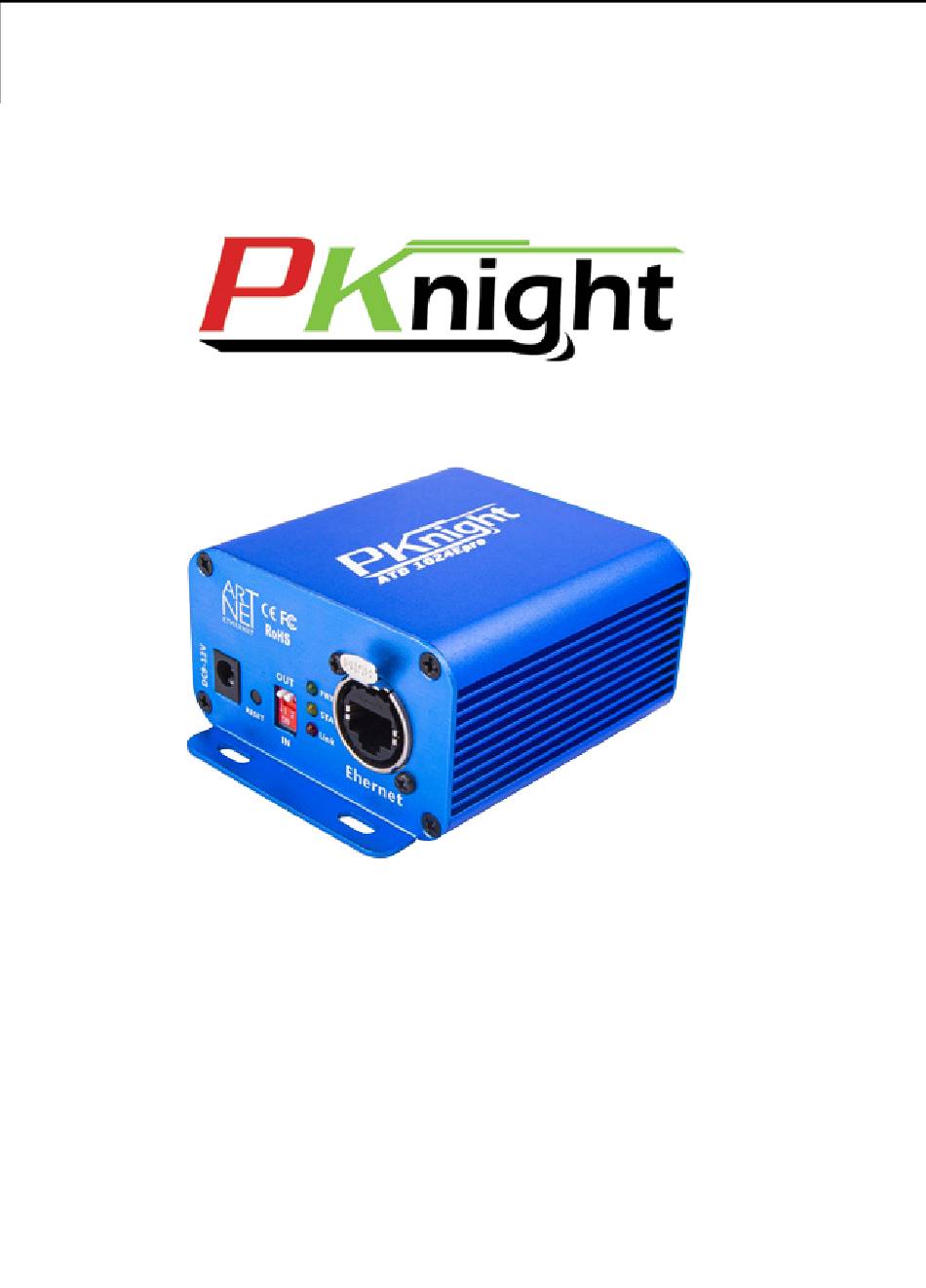

- Page 1 ATD 1024Epro User Manual Pknight Artnet-dmx 1024Epro Page 1 ®...
-
Page 2: Customer Support
Pknight.com for any comments or suggestions. E-mail: carrierplus@163.com We will contact you within 24 hours Safety Do not expose the ATD 1024Epro to rain or moisture, doing this will void the warranty This unit is intended for indoor use only Pknight Artnet-dmx 1024Epro Page 2 ®... -
Page 3: Warranty
Introduction Pknight®ATD 1024Epro Warranty A. 1 months upon date of purchase, if there is function problem, we should offer the same item subjuect to goods and packing maintain perfect. B. 3 Years upon date of purchase, we will guarantee to keep the goods in repair. -
Page 4: Basic Setup
Introduction Pknight®ATD 1024Epro Basic Setup Right out of the box, the ATD 1024Epro is factory configured to be a DMX OUTPUT device, listening to the first Art-Net Universe (0-255). It is also set as a DHCP node, so you can plug it into your existing router, and it's good to go. -

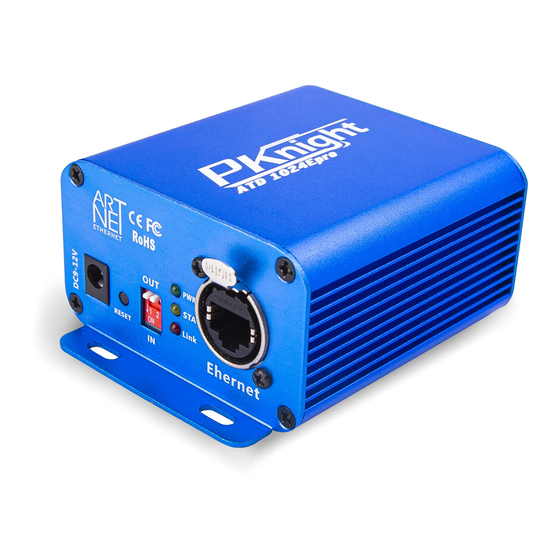

Page 5: Front Panel
Indicators Pknight®ATD 1024Epro Front Panel Rear Panel dmx 1 port dmx 2 port in input mode,we need 3-Pin XLR Male to Male Adapter(not included) Pknight Artnet-dmx 1024Epro Page 5 ®... - Page 6 Indicators Pknight®ATD 1024Epro Ethernet Port Power In( 9VDC ) 2p dial The Code Switch There are 4 modes as follows dmx1&2:output dmx1:output dmx2:input dmx1:input dmx2:output dmx1&2:input LED Indicators PWR:power on,turn green STA:connections and activities,blinks slowly,Signal detected,turn yellow. Link:connect to pc or router,turn red;...
- Page 7 IP address and then you can set it up easily. Please follow these steps: 1.Ensure that your ATD 1024Epro is hooked up physically by an Ethernet cable 2.And connected to the same physical network (or router) as the computer on which you will run Artnet-Dmx Configurator.
- Page 8 Basic Setting page Device Name is used to identify the ATD 1024Epro on the network. Any meaningful name can be used. Dmx Hold time is used to set the time to hold the dmx when your dmx program stop running.
- Page 9 Setting Pknight®ATD 1024Epro 2.x.x.x(Auto):a static IP starting with 2.Each ATD 1024Epro has the specific ip(by Factory Default) 10.x.x.x(Auto):a static IP starting with 10.Each ATD 1024Epro has the specific ip DHCP:the router on your network is expected to automatically provide the IP address to the ATD 1024Epro.
- Page 10 Setting Pknight®ATD 1024Epro DMX 1 UNIVERSE is the dmx1 port of the corresponding DMX 2 UNIVERSE controller panel, is the dmx2 port of the corresponding controller panel Output: Artnet to DMX Output I n p u t : DMX Input to Artnet Read-only and can not be modified.
-
Page 11: Web Configuration
ATD 1024Epro via any modern web-browser. The webinterface allows the settings of the unit to be changed. 1.If the default ip of ATD 1024Epro is 2.3.201.8,we can Manually enter ip 2.48.18.115 and subnet mask 255.0.0.0 for our computer. - Page 12 Setting Pknight®ATD 1024Epro 2.use the IP address to access the web-interface via your web browser.The default password is empty, click submit directly 3.Refer to the operation of the above application (Artnet-Dmx Configurator) for setting Pknight Artnet-dmx 1024Epro Page 12 ®...
