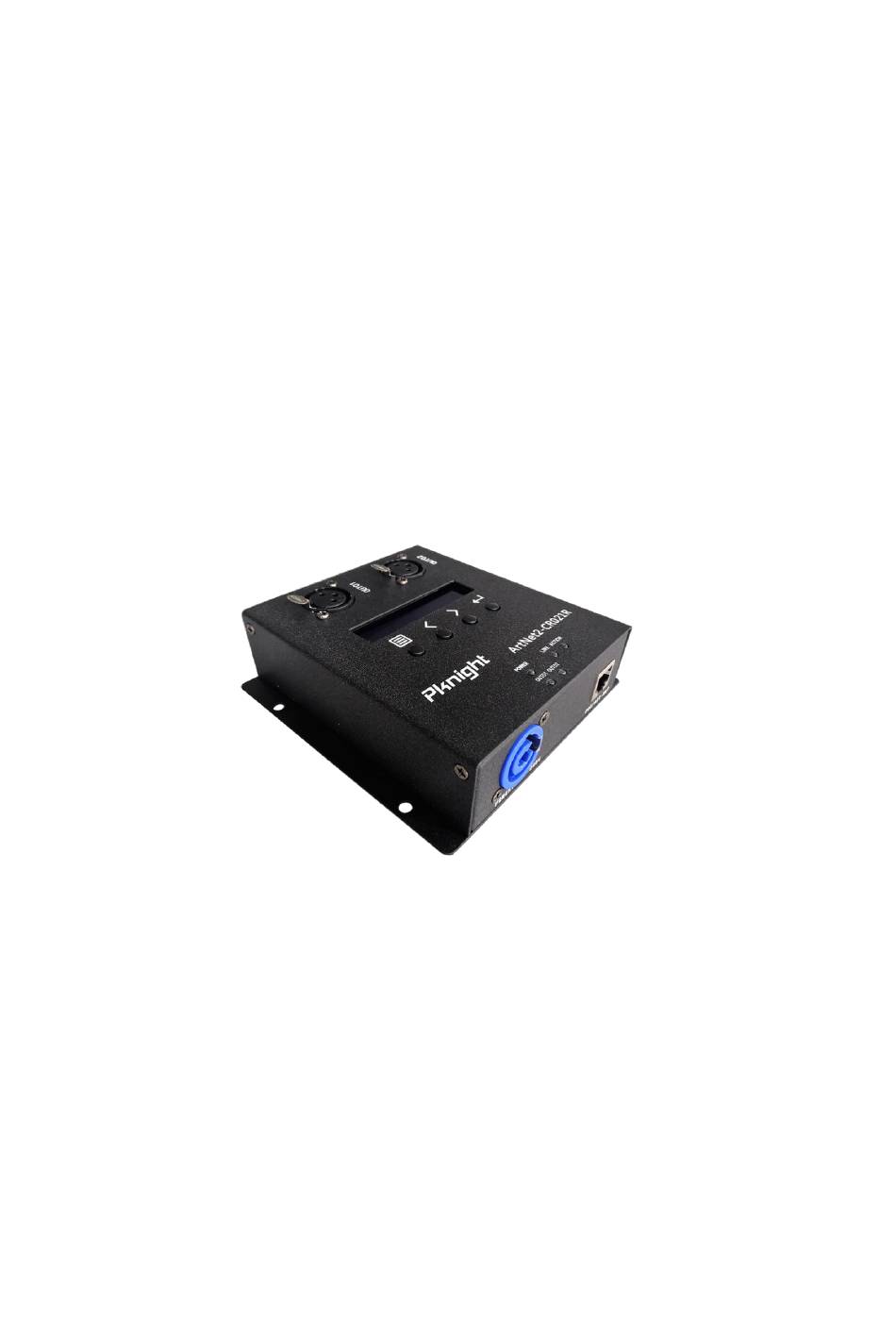

- Page 1 CR021R (Art-Net-DMX512 Network Converter) Ver1.0 ＣＥ 1 / 12...
-
Page 2: Table Of Contents
CONTENTS================================= =================================== 1. Parameters......................3 2. Panel Introduction....................4 3.Introduction of the lower side plate..............5 4.Introduction of upper plate(Installation 1) ............5 5. Introduction of both side(Installation 2) ............6 6. Configuring System Parameters................6 Table 1 - Button instruction............................6 Table 2 - The steps for setting the parameters......................6 Table 3 - The menu presentation for output mode（the form contents to factory default values）..... -
Page 3: Parameters
Introduction CR021R is standard Art-Net Node. Because of this, you can use the device with any application, console, or controller that supports Art-Net to distribute Art-Net data via Ethernet network. Commonly the CR021R can be used to extend the DMX output ports of tiger touch and MA2. -
Page 4: Panel Introduction

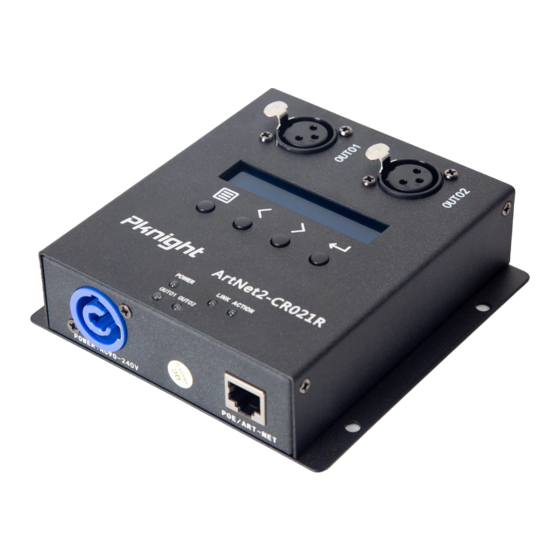

2. Panel Introduction Type Function Power Indicator: White LED Show the power connection state DMX512 signal indicator: Blue LED DMX512 data running state Art-Net data running indicator: White LED data running state Art-Net Connector Indicator: White LED Physical link state Menu button Into set up state and set up selection Up button... -
Page 5: Introduction Of The Lower Side Plate
3.Introduction of the lower side plate Number Type Function AC220V Power Supply AC90-240V/50-60Hz Socket Internet RJ45 port Art-Net input, International POE, 48V input 4.Introduction of upper plate(Installation 1) Hook mounting holes(M10Screw hole) The effect of hook installation 5 / 12... -
Page 6: Introduction Of Both Side(Installation 2)
5. Introduction of both side(Installation 2) screw mounting holes on both sides, which can be fixed with screws 6. Configuring System Parameters Table 1 - Button instruction Function Menu (cancel) Down Enter (save) Table 2 - The steps for setting the parameters The buttons operation steps for setting each Art-Net parameter, as follows: steps instruction... - Page 7 Table 3 - The menu presentation for output mode（the form contents to factory default values） Menu DMX output mode Default values IP address <Local IP > 10.201.6.100 Subnet Mask <Subnet Mask> 255. 000. 000.000 OUT01~OUT02 00-01 Output Port universe <Port universe> Output Port net <...
- Page 8 Table 7 -Port addresses definition Port addresses Subnet Line Port Address Net (0-127) Subnet (0-15) Universe (0-15) Table 8 -Attention about setting parameters NO. Menu item Pay attention to the items Each network set must have a unique IP address (not Other network Setting IP address equipment occupancy) and the same subnet mask, otherwise will cause the network does not work.
-
Page 9: Application 1：Led Matrix Screen Driver
Art-Net port to control the Dmx 512 lighting equipment Equipment Function Art-Net lighting controller equipment Running Jinx!-LED Matrix Control CR021R internet converter Convert the Art-Net to 2 ways DMX 512 Dmx512 lighting equipment Receive the DMX512 signal to show the lighting effect 9 / 12... - Page 10 Equipment connection blocks diagrams: Console Switch/Router CR021R(Art-net converter) CR021R(Art-net converter) 10 / 12...
- Page 11 11 / 12...
- Page 12 12 / 12...
