Pknight CA8402Mini User Manual

model:CA8402Mini
DMX Splitter Bar
(4ch)
user manual

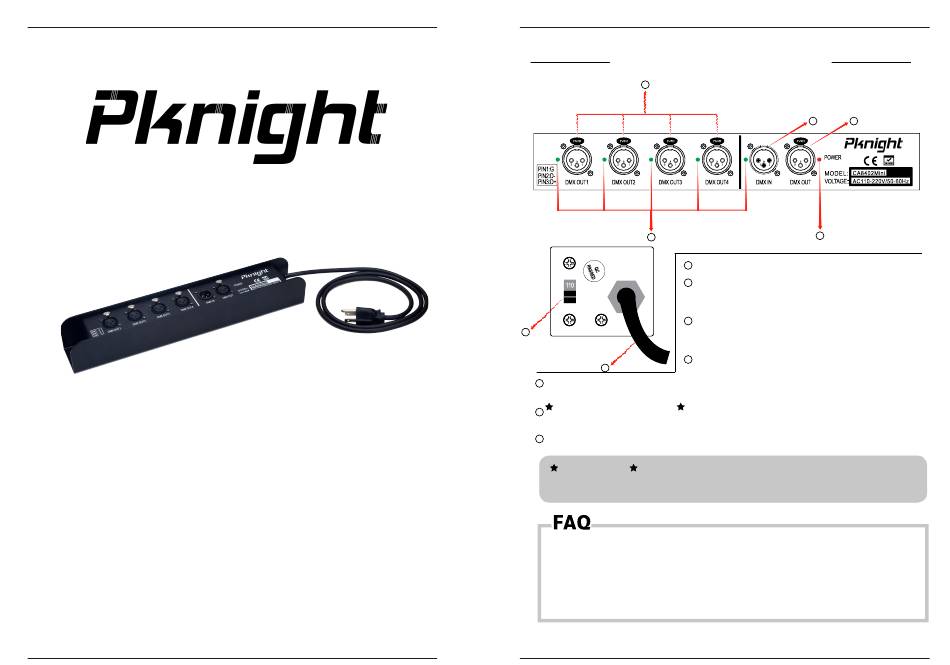

Device Design
5
2
Power Indicator
1
Signal indicator:
2
The light is off when there is no signal, and the light is
on when there is a DMX signal
DMX OUT[DMX THRU]:
3
6
Passive DMX output for looping the signal to a
connected device.
DMX IN:
4
7
DMX OUT1,2,3,4:
5
4 × active DMX outputs to buffer, amplify and distribute the signal to other DMX chains.
Voltage Selector Switch:
6
Set the input voltage to the power supply to either 110v or 220v.
Power cable
6
important In the United States, the power supply voltage switch on your
computer's power supply should be set to 110v. However, if in,
say, France, you should use the 220v setting.
Why we need the Voltage Selector Switch?
In order to ensure the stability and durability of the product, we use a magnetic transformers power
supply. It is much better than an electronic transformer power supply.
Is it dangerous to have your voltage switch set to the wrong voltage?
Yes. You run risk of damaging or frying our splitter,Please make sure the Voltage Selector Switch has
been adjusted to the correct position before powering on.
4 3
1
DMX input
