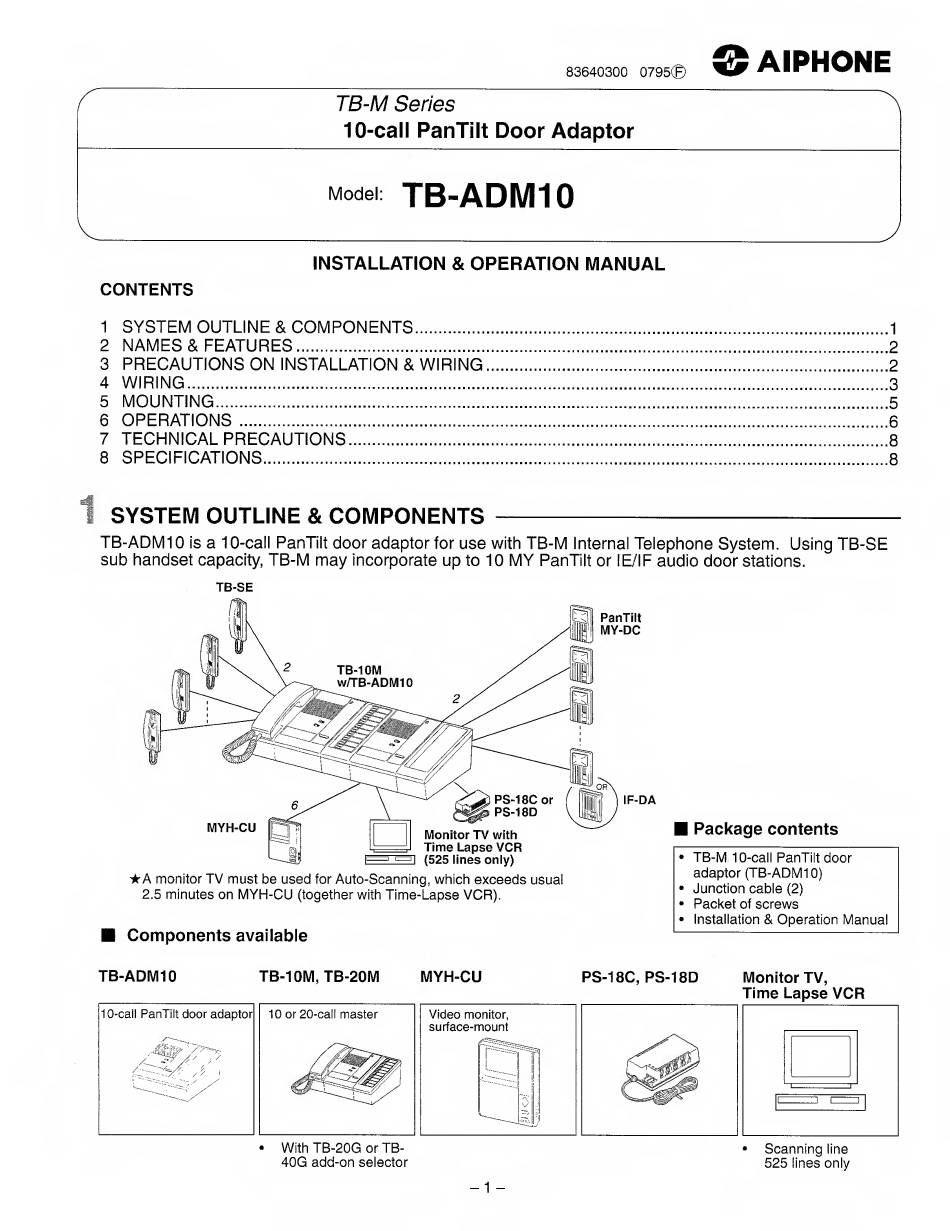

Aiphone TB-M Series Installation & Operation Manual

83640300 0795©
® AIPHONE
TB-M Series
10-call PanTilt Door Adaptor
Model:
V_
TB-ADM10
___
/
INSTALLATION & OPERATION MANUAL
CONTENTS
1 SYSTEM OUTLINE & COMPONENTS.1
2 NAMES & FEATURES.2
3 PRECAUTIONS ON INSTALLATION & WIRING.2
4 WIRING. 3
5 MOUNTING.5
6 OPERATIONS .6
7 TECHNICAL PRECAUTIONS.8
8 SPECIFICATIONS.8
SYSTEM OUTLINE & COMPONENTS
TB-ADM10 is a 10-call PanTilt door adaptor for use with TB-M Internal Telephone System. Using TB-SE
sub handset capacity, TB-M may incorporate up to 10 MY PanTilt or IE/IF audio door stations.
TB-SE
★A monitor TV must be used for Auto-Scanning, which exceeds usual
2.5 minutes on MYH-CU (together with Time-Lapse VCR).
■ Components available
■ Package contents
• TB-M 10-call PanTilt door
adaptor (TB-ADM10)
• Junction cable (2)
• Packet of screws
• Installation & Operation Manual
TB-ADM10 TB-10M, TB-20M MYH-CU PS-18C, PS-18D Monitor TV,
Time Lapse VCR
