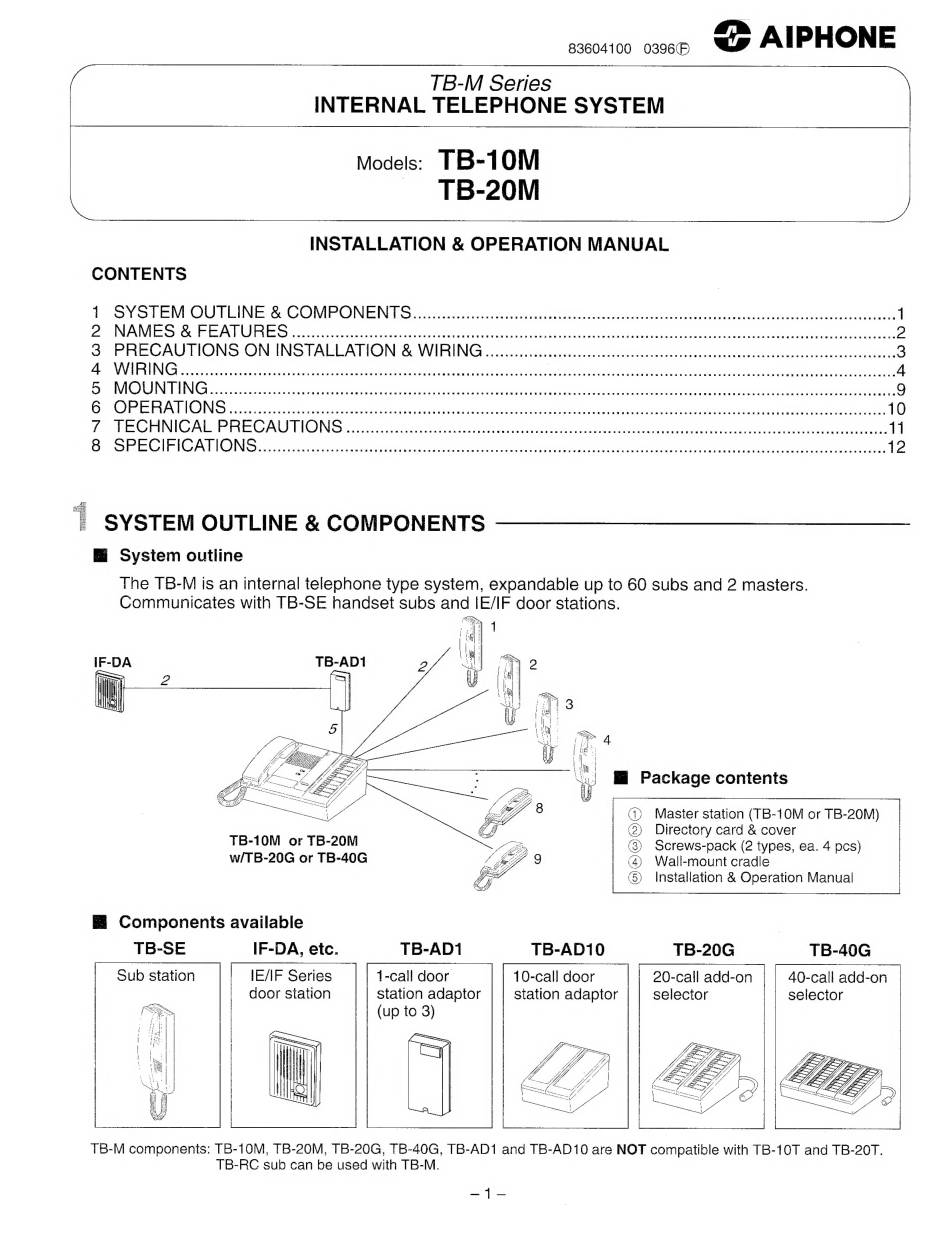

Aiphone TB-M Series Installation & Operation Manual

TB-M Series
INTERNAL TELEPHONE SYSTEM
Models: TB-10M
| = TB-20M |
INSTALLATION & OPERATION MANUAL
CONTENTS
FOYS TEMNOUTENE & COMPONEN TSi a a 1
2 NAMES &FEATURE Gorai E aE E E E 2
3 PRECAUTIONS ON INSTALLATION & WIRING cccciccesscctaceiseescsccsvesivencvesbesteuecvshiaideuwsccrcecendedndenedatsteanesce 3
A N RING eea a a E E A a tA e ae 4
I MOUNTING renier S r A 9
OR TRATON rria N E N N 10
7 TECHNICAE PRECAUTIONS serions aE O 11
G: GOIN Geremia a AA E NN 12
Bee
| SYSTEM OUTLINE & COMPONENTS
Hi Sysiem outline
The TB-M is an internal telephone type system, expandable up to 60 subs and 2 masters.
Communicates with TB-SE handset subs and IE/IF door stations.
ia
Mi Package contents
Master station (TB-10M or TB-20M)
Directory card & cover
Screws-pack (2 types, ea. 4 pcs)
Wall-mount cradle
Installation & Operation Manual
TB-10M or TB-20M
w/TB-20G or TB-40G
QQYO"
E Components available
TB-SE IF-DA, etc. TB-AD1 TB-AD10 TB-20G TB-40G
Sub station IE/IF Series
door station
40-call add-on
selector
20-cail add-on
selector
10-call door
station adaptor
1-call door
station adaptor
(up to 3)
TB-M components: TB-10M, TB-20M, TB-20G, TB-40G, TB-AD1 and TB-AD10 are NOT compatible with TB-10T and TB-20T.
TB-RC sub can be used with TB-M.
SES E
