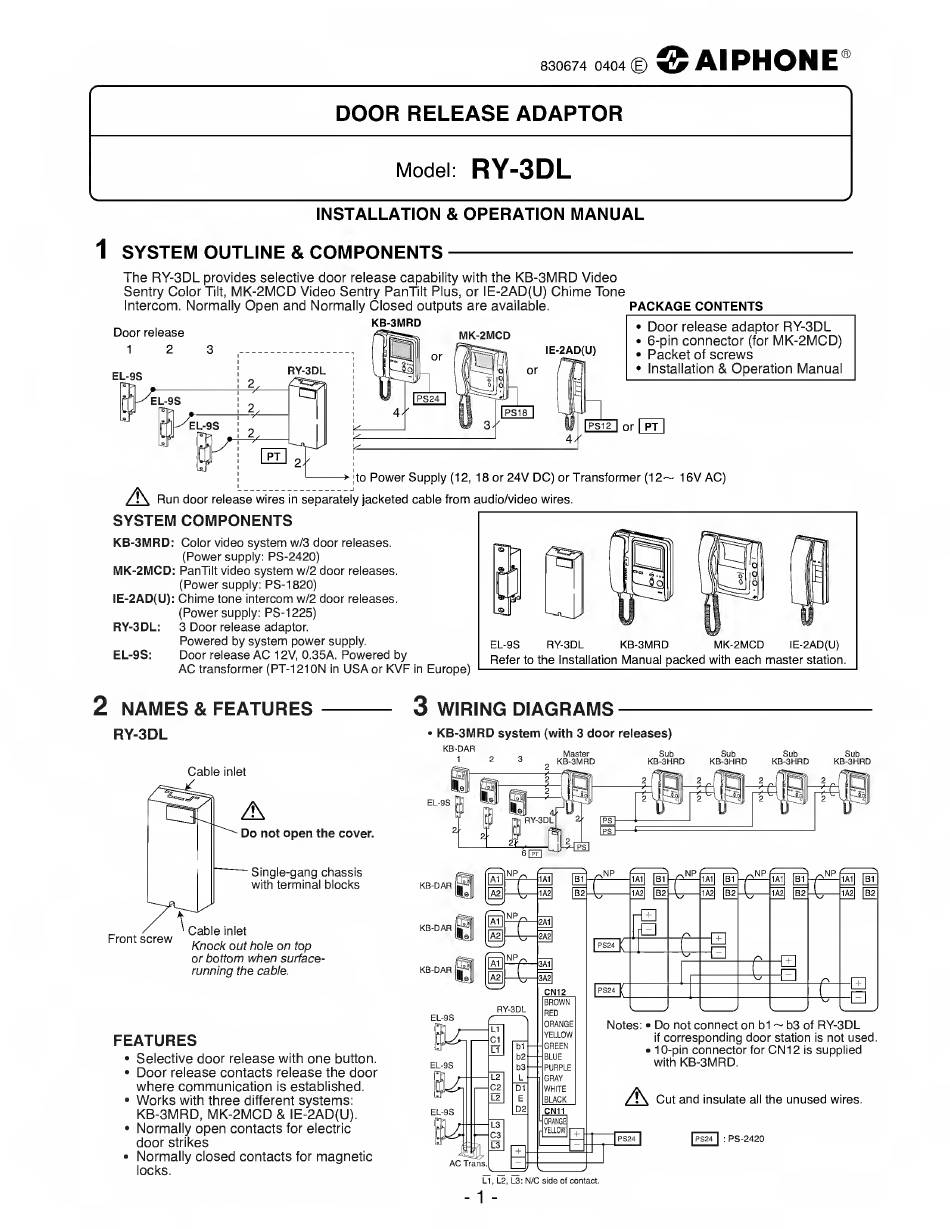

Aiphone RY-3DL Installation & Operation Manual

830674 0404
(D
DOOR RELEASE ADAPTOR
\
Model:
RY-3DL
INSTALLATION & OPERATION MANUAL
1
SYSTEM OUTLINE & COMPONENTS
The RY-3DL provides selective door release capability with the KB-3I\/IRD Video
Sentry Color Tilt, l\/IK-2MCD Video Sentry PanTilt Plus, or IE-2AD(U) Chime Tone
Intercom. Normally Open and Normally Closed outputs are available.
PACKAGE CONTENTS
Door release
1 2 3
KB-3MRD
MK-2MCD
I
PS24
I
IE-2AD(U)
Door release adaptor RY-3DL
6-pin connector (for MK-2MCD)
Packet of screws
Installation & Operation Manual
IPS
18
I
IPS
12
1 or
I
PT
I
to Power Supply (12, 18 or 24V DC) or Transformer (12— 16V AC)
Run door release wires in separately jacketed cable from audio/video wires.
SYSTEM COMPONENTS
KB-3MRD: Color video system w/3 door releases.
(Power supply: PS-2420)
MK-2MCD: PanTilt video system w/2 door releases.
(Power supply: PS-1820)
IE-2AD(U): Chime tone intercom w/2 door releases.
(Power supply: PS-1225)
RY-3DL: 3 Door release adaptor.
Powered by system power supply.
EL-9S: Door release AC 12V, 0.35A. Powered by
AC transformer (PT-1210N in USA or KVF in Europe)
2
NAMES & FEATURES -
3
WIRING DIAGRAMS
RY-3DL
Cable inlet
Front screw
Cable inlet
Knock out hole on top
or bottom when surface¬
running the cable.
FEATURES
• Selective door release with one button.
• Door release contacts release the door
where communication is established.
• Works with three different systems:
KB-3MRD, MK-2MCD & IE-2AD(U).
• Normally open contacts for electric
door strikes
• Normally closed contacts for magnetic
locks.
• KB-3MRD system (with 3 door releases)
NP
NP
2711
CN12
BROWN
RED
ORANGE
YELLOW
GREEN
BLUE
PURPLE
GRAY
WHITE
BLACK
CN11
ORANGE
YELLOW
■iAl]
[bT
■lAil
[b2
EEX
Emc
i
Ml] [bT
[b2
-Q
C
Ml] ]bT-
M2]
]b2 ■
-Q
-Q
t
■Ml]
]bT'
M2] ]b2
£ -S
-Q
Notes: • Do not connect on b1 ~ b3 of RY-3DL
if corresponding door station is not used.
• 10-pin connector for CN12 is supplied
with KB-3MRD.
A
Cut and insulate all the unused wires.
I
PS24
I :
PS-2420
LI, L2, L3: N/C side of contact.
-
