Telephone Helpline: 1300 225 960 (Australia)
Blast Chiller / Freezer
Instruction Manual
Model
DN492-A DN494-A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DN492-A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Polar Refrigeration DN492-A

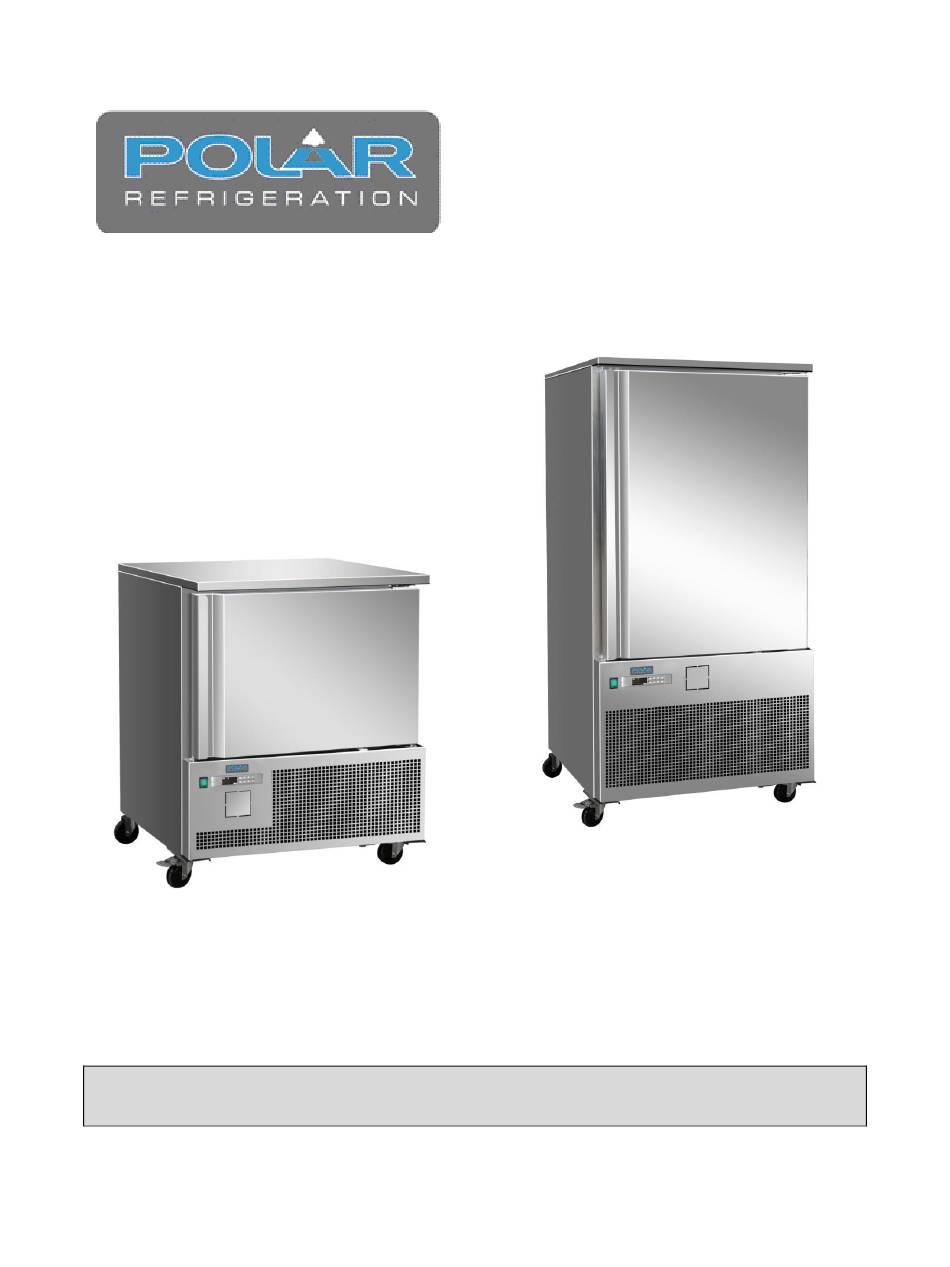

  • Page 1 Telephone Helpline: 1300 225 960 (Australia) Blast Chiller / Freezer Instruction Manual Model DN492-A DN494-A...
  • Page 2: Safety Tips

    Telephone Helpline: 1300 225 960 (Australia) Safety Tips Position on a flat, stable surface. A service agent/qualified technician should carry out installation and any repairs if required. Do not remove any components or service panels on this product. Consult Local and National Standards to comply with the following: Health and Safety at Work Legislation BS EN Codes of Practice Fire Precautions...
  • Page 3: Installation

    Telephone Helpline: 1300 225 960 (Australia) Installation Note: If the appliance has not been stored or moved in an upright position, let it stand upright for approximately 12 hours before operation. If in doubt allow the appliance to stand. Remove the appliance from the packaging. Make sure that all protective plastic film and coatings are thoroughly removed from all surfaces Maintain a distance of 20cm (7 inches) between the unit and walls or other objects for ventilation.
  • Page 4 Telephone Helpline: 1300 225 960 (Australia) Control Panel Controller Display...
  • Page 5: Setting The Time & Date

    Telephone Helpline: 1300 225 960 (Australia) MODE ACTION - Compressor enabled - Programming Phase (flashing with LED Flashing - Anti-short cycle delay enabled - Fans enabled - Programming Phase (flashing with LED Flashing - Activation delay active - Defrost active Flashing - Drip time active ①...
  • Page 6: Starting A Cycle

    Telephone Helpline: 1300 225 960 (Australia) Starting a cycle Push and release the START/STOP button. The yellow LED on the buttons will be illuminated. Temporarily stopping the Running cycle Press and release the key. The compressor and the fan will be stopped and the Cycle number display and yellow LEDs will flash.
  • Page 7: Manual Defrost

    Telephone Helpline: 1300 225 960 (Australia) Holding Cycle as part of Chilling / Freezing Cycle When your Polar Blast chiller has completed its chilling / freezing phases it can be programmed to enter a Holding mode to ensure that the temperature of product is maintained after the chilling / freezing cycle has finished.
  • Page 8: Locking The Keyboard

    Telephone Helpline: 1300 225 960 (Australia) Locking the Keyboard To lock & unlock the keyboard hold both keys down together. Default Value of the Cycles Your Polar Blast Chiller/Freezer has been set with the following default cycle settings. Please refer to the Controller Instruction Manual for further information on understanding and modifying your cycle settings Cy1: for fast chilling and conservation of foods at positive temperature CyS = tEP...
  • Page 9: Cleaning The Evaporator

    Telephone Helpline: 1300 225 960 (Australia) Cleaning the evaporator Please ensure that the Blast Chiller is switched off and unplugged prior to cleaning Clean the evaporator periodically. As the fins of the evaporator are very sharp. Always wear protective gloves for the next phases. Only a brush must be used for cleaning: do not use jets of liquid or sharp instruments.
  • Page 10: Alarm Signals

    Telephone Helpline: 1300 225 960 (Australia) Alarm Signals Mess Cause Outputs Alarm output ON; Other outputs unchanged “EE” Data or memory failure Alarm output ON; Compressor output according to parameters “rPF” Thermostat Probe failure “COn” and “COF” Alarm output ON; Defrost termination is timed; No temperature “EPF”...
  • Page 11: Troubleshooting

    Voltage Power Current Capacity Dimensions Weight H X W X D (mm) (Kg) 230v 3 x GN 1/1 DN492-A 770W 3.5A 925 x 800 x 815 50Hz 230v 10 x GN 1/1 DN494-A 1300W 6.5A 1625 x 800 x 815...
  • Page 12: Electrical Wiring

    Telephone Helpline: 1300 225 960 (Australia) Electrical Wiring The plug is to be connected to a suitable mains socket. POLAR appliances are wired as follows: Live wire (coloured brown) to terminal marked L Neutral wire (coloured blue) to terminal marked N Earth wire (coloured green/yellow) to terminal marked E All POLAR appliances must be earthed, using a dedicated earthing circuit.
  • Page 13: Declaration Of Conformity

    Telephone Helpline: 1300 225 960 (Australia) DECLARATION OF CONFORMITY Blast Chiller Equipment Type DN492-A, DN493-A, DN494-A Model C-Tick Legislation AS/NZ 3820 Essential Safety Requirements for Low Voltage Electrical Equipment AS/NZS CISPR 14.1:2010 Standards AS/NZS 60335.2.89:2010 POLAR Producer Name 15 Badgally Road,...
  • Page 14 Telephone Helpline: 1300 225 960 (Australia)
  • Page 15 Telephone Helpline: 1300 225 960 (Australia)
  • Page 16 Telephone Helpline: 1300 225 960 (Australia) DN492-A_DN494-A_v2...
