Larson Electronics EPL-24BS-5FT-1X100LED-UVA-100 Series Installation

Thank you for your purchase of the Larson Electronics EPL-24BS-5FT-1X100LED-UVA-100 series Ultraviolet LED light.
This light is completely assembled, tested and ready for installation when shipped from the factory. Please follow the
steps below in order to operate and maintain this product.
IMPORTANT
READ CAREFULLY BEFORE OPERATING THIS LIGHT. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. IF UNSURE
ABOUT ANY PART OF THESE INSTRUCTIONS, CONSULT A QUALIFIED ELECTRICAL PROFESSIONAL. THE EPL-24BS-5FT-
1X100LED-UVA-100 MUST BE OPERATED IN ACCORDANCE WITH NATIONAL ELECTRICAL CODE AND ALL APPLICABLE
LOCAL CODES. PROPER GROUNDING IS REQUIRED FOR SAFETY.
FOR PERSONAL SAFETY, ALWAYS CONFIRM THE RATING OF ANY KNOWN HAZARDOUS OR POTENTIALLY HAZARDOUS
LOCATION WHERE THE LIGHT IS TO BE USED.
WARNING: OPERATE ONLY AT THE VOLTAGE LISTED ON THE PRODUCT LABEL.
WARNING: TO PREVENT IGNITION OF A HAZARDOUS ATMOSPHERE, THE SUPPLY CIRCUIT SHOULD BE DISCONNECTED
WHEN INSTALLING OR PERFORMING ANY MAINTENANCE ON THIS UNIT.
WARNING: WHEN INSTALLING THIS LIGHT IN HAZARDOUS LOCATIONS, CHECK THE OPERATING TEMPERATURE LIMITS
PRIOR TO INSTALLATION TO BE SURE IT CONFIRMS TO THE ENVIRONMENTAL TEMPERATURE RESTRICTIONS AND NEC
CLASSIFICATIONS. CHECK THE FIXTURE'S METAL NAMEPLATE FOR TEMPERATURE (T) RATINGS.
WARNING: DO NOT SCRATCH OR CHIP THE FRONT LENS. TURN THE POWER OFF BEFORE STARTING INSTALLATION OR
REPAIR.
WARNING: OPERATE THIS FIXTURE ONLY AT THE VOLTAGE OF YOUR SPECIFIC SUPPLY CIRCUIT. FAILURE TO DO SO
WILL RESULT IN DAMAGE TO THE FIXTURE.
WARNING: SUBSTITUTE COMPONENTS MAY IMPAIR EXPLOSION PROOF SAFETY.
WARNING: ULTRAVIOLET LIGHT IS HARMFUL TO EYES AND SKIN. NEVER LOOK AT LIGHT PRODUCED BY THIS LAMP.
UNPLUG LAMP BEFORE SERVICING.
INSTALLATION
Before operation, confirm that the power source will provide the correct voltage indicated on the product nameplate.
Ensure the receptacle will accept the cord cap attached to the light.
Check product nameplate for Ratings and Approvals.

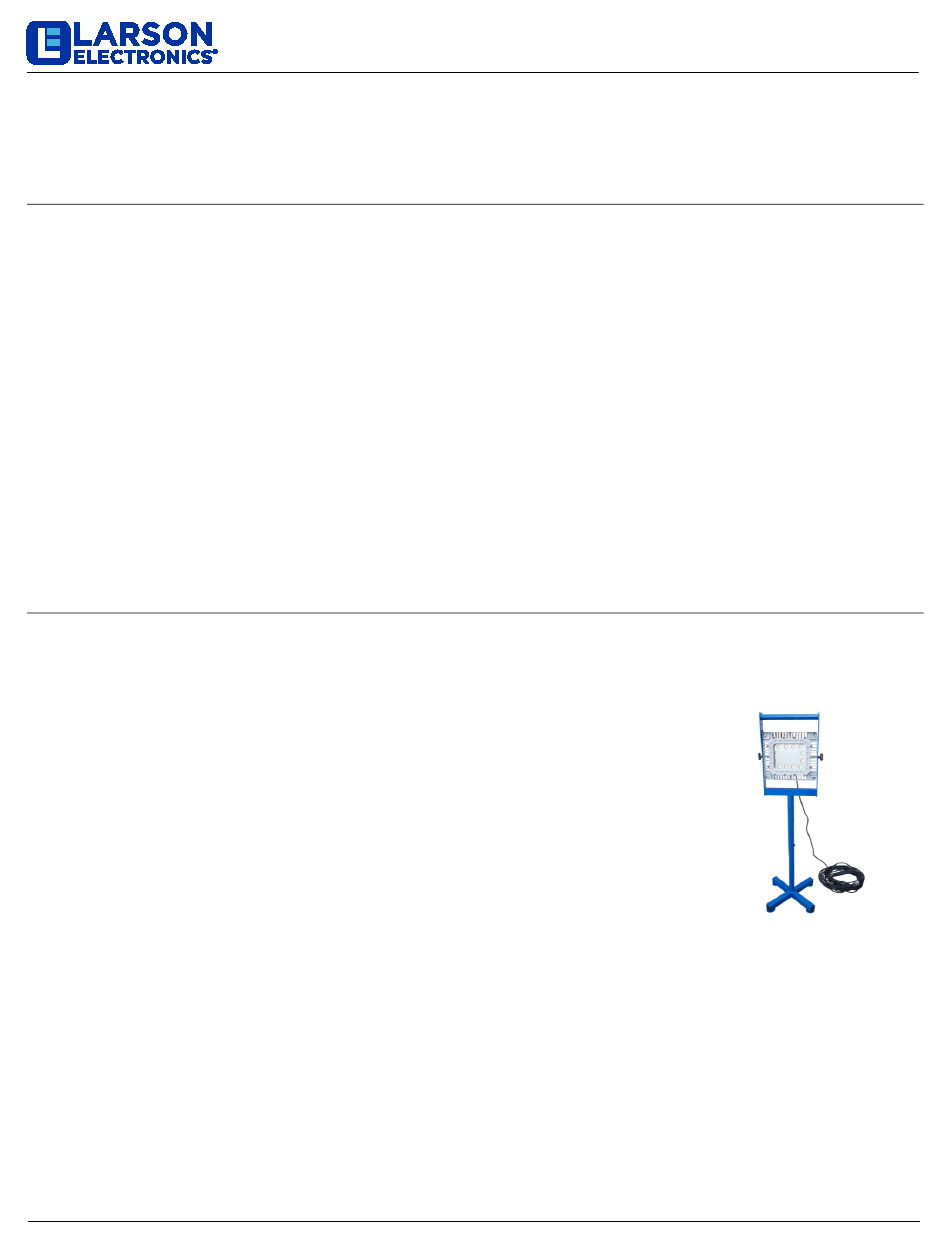

Assemble light by placing base on level ground:
1. Place extension arm over base and tighten hand screw.
2. Install light head and tighten hand screw to secure.
3. Ensure all connection points are fully inserted and that there are no loose hand screws.
4. The base stand light is now assembled and ready for use.
Place the light in the desired location and run its power cord to a power source. Ensure all safety
requirements are followed for the hazardous area.
This light is instant-on and will illuminate once energized.
Multi-voltage capability allows this light to be powered via
ADJUSTMENT
Loosen the hand screws on either side of the light to make vertical adjustments. Tighten hand screws once desired angle
is achieved.
The light head can be removed from the base stand for easy maneuverability or for stowing. Simply loosen the hand
screw toward the base of the light head and lift off light head. Place light head on base stand and tighten hand screw to
replace.
Larson Electronics, LLC
100 Watt Explosion Proof Ultraviolet LED Light
5' Tall Base Stand Mount - UVA - 24 Inch Stand
Phone: (800) 369-6671
EPL-24BS-5FT-1X100LED-UVA-100
Voltage: 120-277V AC 50/60Hz
Fax: (903) 498-3364 www.larsonelectronics.com 1 of 2
