Before you begin - Read these instructions completely and carefully.
IMPORTANT – OBSERVE ALL GOVERNING CODES AND ORDINANCES.
Note to Installer – Be sure to leave these instructions with the Consumer.
Note to Consumer – Keep these instructions with your Owner's Manual for future reference.
INTRODUCTION
These instructions cover the installation of the Polymer Architectural Grille accessory for the packaged terminal air
conditioner and heat pump. The grille securely attaches to the rear of the wall sleeve with four pre-set stainless steel
screws.
CAUTION
Improper installation of accessory grille could result in condenser (outdoor) air recirculation. This
will degrade performance of the unit and possibly shorten product life. Manufacturer does not assume responsibility
for improper installation of grille resulting with condenser air recirculation.
STEP 1: Check For Proper Orientation
Before attempting to install grille, be sure to check it for proper orientation. The grille should be oriented with louvers
pitching downward.
STEP 2: Aligning Grille with Wall Sleeve
Back out the four (4) mounting screws approx. 1/4" to 5/16". Firmly grasp grille with two (2) hands. Tilt grille to insert
through wall sleeve and out the back of the wall sleeve.
GE is a trademark of the General Electric Company. Manufactured under trademark license.
Installation Instructions
for your new
RAG42P*
Polymer Architectural Grille
INSTALLATION
31-5000771 Rev. 0 02-24
Advertisement
Table of Contents
Related Manuals for GE RAG42P Series
Summary of Contents for GE RAG42P Series

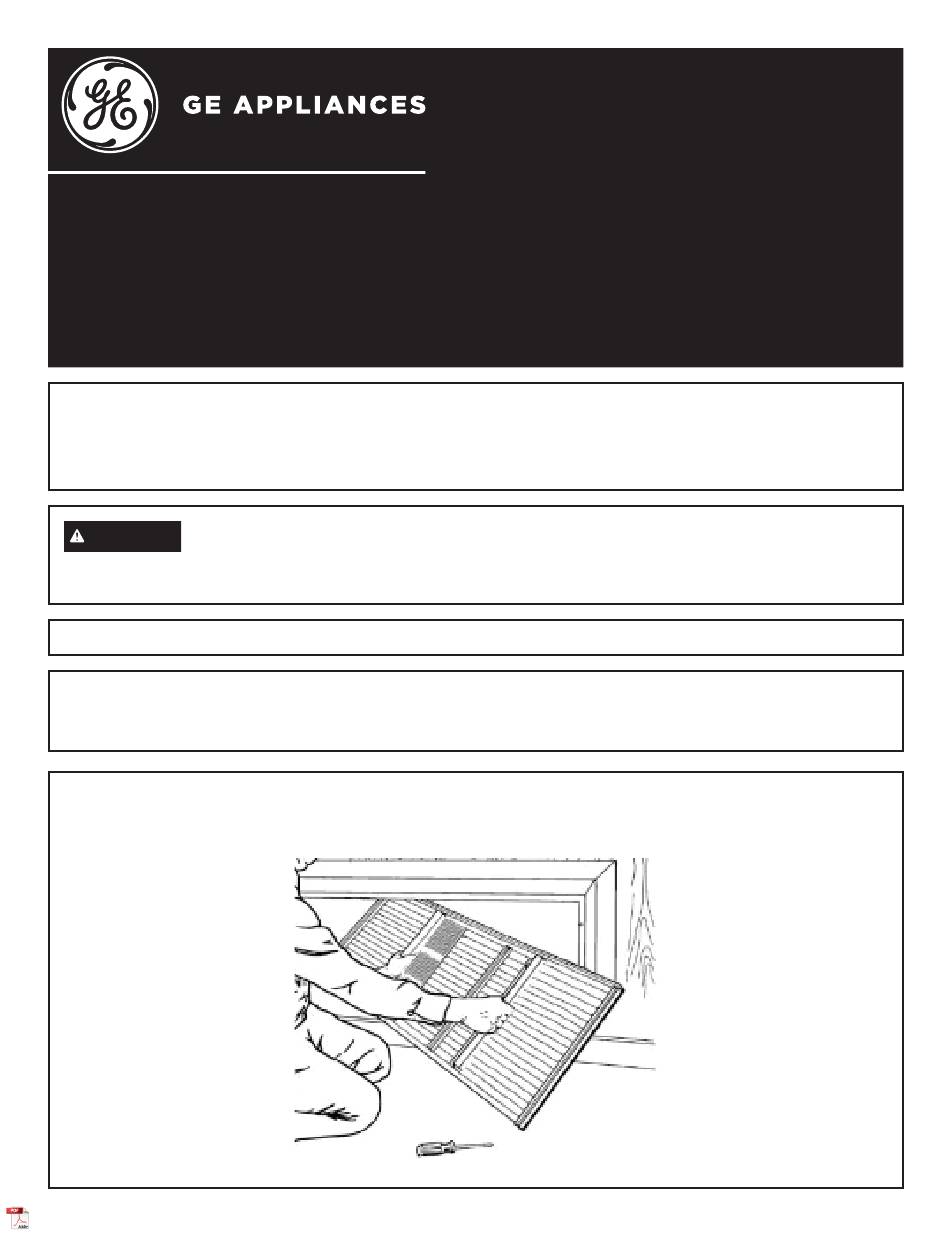

- Page 1 Back out the four (4) mounting screws approx. 1/4” to 5/16”. Firmly grasp grille with two (2) hands. Tilt grille to insert through wall sleeve and out the back of the wall sleeve. 31-5000771 Rev. 0 02-24 GE is a trademark of the General Electric Company. Manufactured under trademark license.
-
