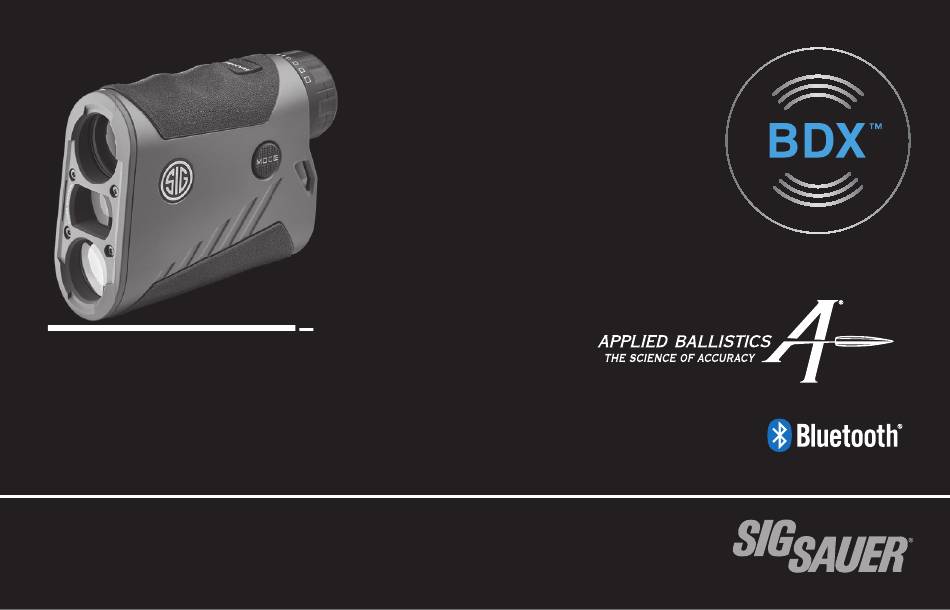

KILO
KILO
KILO2800™ 6x22 mm LASER RANGEFINDER
WITH BALLISTIC DATA XCHANGE™
OWNERS MANUAL
®
®
2.0
2.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KILO KILO2800 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sig Sauer KILO KILO2800

Summary of Contents for Sig Sauer KILO KILO2800

  • Page 1 KILO KILO ® ® KILO2800™ 6x22 mm LASER RANGEFINDER WITH BALLISTIC DATA XCHANGE™ OWNERS MANUAL...

  • Page 2: Table Of Contents

    ® SIG SAUER Electronic Component Limited 5-Year Warranty ....56 Please visit sigsauer.com for Owners Manual downloads, or download to your Smart device with the Rear-loading CR2 Battery SIG BDX App.

  • Page 3: Contents

    CONTENTS: KEY FEATURES: • SIG SAUER’S Patent Pending Ballistic Data Xchange™ Technology utilizes, low energy Bluetooth • KILO2800™ Digital Laser Rangefinder with embedded Applied Ballistics Ultralight and the free BDX™ App to sync custom gun profiles • CR2 Battery (1) and environmental conditions to your KILO ®...

  • Page 4: Product Identification

    PRODUCT IDENTIFICATION: LIGHTWAVE™ DSP TECHNOLOGY SIG SAUER’s proprietary Lightwave DSP engine leverages HyperScan – an advanced power A- Power / Range Button management technique that provides the fastest refresh rate in scan mode (4 times per second) B- Eyecup / Diopter Focus Adjustment even at distances up to a mile.
  • Page 5 “BOND” then “GOOD” your devices have been bonded (blue LED on the SIERRA should now be combined with one of SIG SAUER’s BDX enabled riflescopes, the user ranges a target and the firing solution is instantly shared with the BDX riflescope where the holdover dot is selectively illuminated.

  • Page 6: General Operation

    sigsauer.com GENERAL OPERATION Your rangefinder provides 4 modes of operation: AMR, LOS, ABU and Ballistic Group selection. When ABU is selected the user can pair the KILO with a nearby smartphone where the BDX App should already be installed. The user configures a bullet profile in the app, which is actively synced with a paired rangefinder.
  • Page 7 sigsauer.com ANGLE MODIFIED RANGE MODES OF OPERATION - ANGLE MODIFIED RANGE (AMR) AND LINE OF SIGHT (LOS) Angle modified range is the equivalent horizontal range to the target and is comparable to the “horizontal leg” of a triangle. AMR is also known as “rifleman’s rule” and uses the LOS range and angle of incline to calculate the horizontal distance the projectile travels between shooter and target.
  • Page 8 APPLIED BALLISTICS ULTRALIGHT (ABU) Your rangefinder has an embedded ballistics solver developed by Sig Sauer, Applied Ballistics and nVisti. By pairing your KILO with the free BDX App you can enter custom ballistics information for up to 25 bullet profiles and sync one at a time to your KILO. The active ballistic profile is now saved on your KILO, and when in ABU mode, will provide an accurate ballistic solution out to 800 meters maximum.
  • Page 9 sigsauer.com LUMATIC™ OLED DISPLAY TRANSPARENT ORGANIC LIGHT EMITTING DIODE DISPLAY (T-OLED) The KILO2800™ has the most advanced display on the market. Our transparent OLED display has The KILO2800™ rangefinder features a T-OLED display for superior performance in any ambient light the largest dynamic range providing for high brightness in bright sunlight or snow conditions, yet will environment.
  • Page 10 sigsauer.com • For intended outdoor use, avoid non-intentional laser beam exposure of yourself and other W WARNING people. Do not press the RANGE button while aiming at the human eye or while looking into the transmitting optics on the objective side. Safety and Operation Procedures •...

  • Page 11: Operation

    sigsauer.com OPERATION The KILO2800 is designed to get you up and running without the typical complexity of buried menus and programming modes. The rangefinders come out of box in the following configuration and can also be configured with the free BDX App: (a) Angle Modified Range (equivalent horizontal range) This page intentionally left blank.
  • Page 12 sigsauer.com SET UP After installation of the battery and depressing the RANGE button, the status of the rangefinder is displayed: Installing the Battery Remove the battery cap by turning the cap in a counter-clockwise direction. Insert (1) CR2 Primary Lithium battery (-) terminal side first. The (+) terminal should be facing out. Place the cap onto the (+) battery terminal and reinstall the battery cap by turning the cap in the clockwise direction.

  • Page 13: Display Information

    sigsauer.com Diopter Adjustment DISPLAY INFORMATION The diopter or focus adjustment is integral to the eyecup. The focus adjustment is used to bring the The display shows you the center aiming circle, the unit of measure (Y), Angle Modified Range mode display into sharp focus along with the target image.

  • Page 14: Changing Modes Of Operation

    sigsauer.com HyperScan MODE CHANGING MODES OF OPERATION While the rangefinders support single button push ranging operation, it is highly recommended that The rangefinder ships with the most common modes already configured. However, you can access you push and hold the RANGE button down to activate HyperScan mode. This mode allows you to and change the following features: scan targets at 4X/second which significantly improves ranging performance at extreme distances.

  • Page 15: Programming Sequence

    sigsauer.com RANGEFINDER CONFIGURATION – PROGRAMMING SEQUENCE 2. Target Selection (BEST or LAST) Note – the rangefinder can more easily be programmed and configured by using the BEST or LAST should be flashing (BEST is the default setting). You can toggle between BEST or LAST free Sig BDX App.
  • Page 16 sigsauer.com 4. Unit of Measure Selection (Y or M) 6. QuickBOND Your current selection will be flashing (Yards is default). You can toggle between Y or M by pressing The last selection is QuickBOND - bond will be flashing. You can turn ON or OFF QuickBOND by and releasing the RANGE button.
  • Page 17 In this section you will download the BDX App, pair the App with your KILO and create a custom Go to the App Store or the Google Play store and download the SIG SAUER BDX App. Search for the bullet profile.
  • Page 18 3. Launch the free SIG SAUER BDX App and Pair with your KILO (Enter your PIN code) Make sure your KILO stays on during the pairing process by periodically pressing and releasing the RANGE button. You will be prompted to look through your KILO for a PIN number. Type this PIN On your smartphone, open the BDX App, click on PAIRING, turn on your KILO by pressing and number into the open dialogue box within the App.
  • Page 19 PROFILES. Only one profile can be active at any time and is denoted by the BDX Icon in blue to and allow Sig Sauer to ensure that your BDX App and KILO perform optimally. Most updates take the right of the screen. The BDX App comes with one default 0.308 profile. You can edit this profile less than 1 minute.
  • Page 20 sigsauer.com RANGEFINDER HEADS-UP DISPLAY (HUD) After selecting a bullet manufacturer, select the actual bullet you intend to use. Once selected you will return to the Gun Profile page where you will need to click on the sync icon to the right to From the home screen of your BDX App select RANGEFINDERS to display the HUD.
  • Page 21 sigsauer.com KILO SETTINGS TEMPERATURE AND ALTITUDE From the Settings menu you can fully configure the following: Once your KILO is paired and actively synced with your smartphone, when you enter the RANGEFINDER HUD screen your smartphone will automatically pull the local temperature and 1.
  • Page 22 sigsauer.com MUZZLE VELOCITY (MV) CALIBRATION MUZZLE VELOCITY (MV) CALIBRATION (continued) The most important input for calculating accurate Applied Ballistics solutions is getting your After performing a 3 shot group, note if your point of impact was high or low relative to your MV correct.
  • Page 23 sigsauer.com MUZZLE VELOCITY (MV) CALIBRATION (continued) CONFIGURING GLOBAL SETTINGS IN THE BDX APP After entering the amount of offset the app will calculate a new MV. Confirm the calculated From the Home Screen of the BDX App you can configure Global Settings. Any field that is in (calibrated) MV and the new MV value will be saved in your bullet profile.

  • Page 24: Frequently Asked Questions (Faqs)

    A: Look through our SIERRA3. You most likely have the Digital Ballistic Reticle turned on. Go into your BDX manual. App, select the SIGHTS page and turn the Ballistic Reticle OFF. Q: I can’t locate the BDX App on the Apple or Android Stores. A: Search for Sig Sauer or BDX at the store.
  • Page 25 sigsauer.com KILO2800™ 6x22 mm SPECIFICATIONS Magnification Objective Clear Aperture 22 mm Exit Pupil 3.7 mm Eye Relief 17 mm Angular (FOV) 6° FOV @ 100yds 34.18 ft Laser Divergence 3.00 x 0.20 MRAD Range Response Time .25 sec Scanning Range Resolution Under 100 yds .1 yds A –...

  • Page 26: Specifications

    This product has been tested and found to comply with the limits for a Class B digital device, pursuant FCC ID: 2AP8SK28R IC: 24032-K28R procedures other than those specified herein may SIG SAUER Inc. to Part 15 of the FCC Rules. The equipment generates, uses and can radiate radio frequency energy and, 12100 SW Tualatin Road Tualatin, Oregon 97062 result in hazardous radiation exposure.

  • Page 27: Fcc Statement

    sigsauer.com FCC STATEMENT: INDUSTRY CANADA: This equipment generates uses and can radiate radio et Développement économique Canada. Le fonctionnement frequency energy and, if not installed and used in est soumis aux deux conditions suivantes : This device contains licence-exempt transmitter(s)/ accordance with the instructions, may cause harmful This device complies with Part 15 of the FCC rules.
  • Page 28 SIG SAUER Electro-Optics had to earn the right IN NO EVENT SHALL SIG SAUER OR ANY COMPANY AFFILIATED WITH SIG SAUER BE LIABLE FOR ANY to wear that badge and the Infinite Guarantee has your back, forever. Period.

  • Page 29: Sig Sauer Electronic Component Limited 5-Year Warranty

    For a period of five (5) years from the date of manufacture, IN NO EVENT SHALL SIG SAUER OR ANY COMPANY AFFILIATED WITH SIG SAUER BE LIABLE FOR ANY SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OF ANY KIND ARISING OUT OF THE PURCHASE SIG SAUER agrees to correct any defect in these components by repair, adjustment, OR USE OF THIS PRODUCT, WHETHER BASED UPON CONTRACT, TORT, STATUTE, OR OTHERWISE.
  • Page 30 sigsauer.com OPERATION NOTES: NOTES:...
  • Page 31 FOR PRODUCT SERVICE ON THIS MODEL, PLEASE CALL 603-610-3000 12100 SW Tualatin Road, Tualatin, Oregon 97062 USA sigsauer.com P/N 7404562-01 R00...
