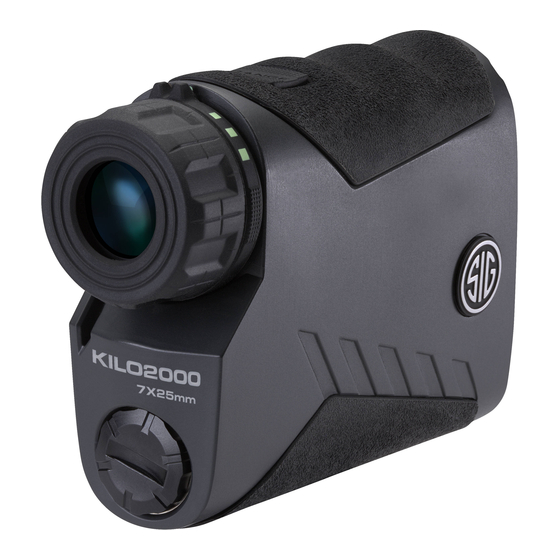

7x25mm digital laser rangefinder
Hide thumbs
Table of Contents

Advertisement

Quick Links

ELECTRO-OPTICS
KILO
KILO2000™ 7x25mm DIGITAL LASER RANGEFINDER
OWNERS MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Kilo2000 and is the answer not in the manual?

Questions and answers

Related Manuals for Sig Sauer Kilo2000

Summary of Contents for Sig Sauer Kilo2000

  • Page 1 ELECTRO-OPTICS KILO KILO2000™ 7x25mm DIGITAL LASER RANGEFINDER OWNERS MANUAL...

  • Page 2: Table Of Contents

    Specifications ......... . . 24 SIG SAUER Electro-Optics Infinite Guarantee™...

  • Page 3: Introduction

    KILO2000™ Laser Rangefinder. The KILO2000 is the ® most advanced, yet simple to use rangefinder on the market. The KILO2000 features the fastest, digital signal processing engine while streamlining the user interface for a no hassle, out of the box experience.

  • Page 4: Contents

    CONTENTS: • KILO2000™ 7x25mm Digital Laser Rangefinder • CR2 Battery (1) • Premium Padded Ballistic Nylon Case • Lanyard...

  • Page 5: Key Features

    sigoptics.com KEY FEATURES: • 7x25mm monocular with SpectraCoat™ anti-reflection coatings for superior light transmission and optical clarity. • Revolutionary Lightwave™ DSP Technology for the fastest and longest distance rangefinder engine. • HyperScan provides 4 range updates per second in scan mode while RangeLock reports the last range result when ranging distant targets.

  • Page 6: Product Identification

    PRODUCT IDENTIFICATION: A- Power/Range Button B- Diopter Focus Adjustment C- Eyecup D- Mode Button E- Battery Compartment...
  • Page 7 RANGING ACCURACY, RESOLUTION AND MAXIMUM RANGES The KILO2000 provides line of sight or angle modified range information accurate to ±0.5 yards or meters out to 500 yards; ±1 yard from 500 - 1000 yards and ±2 yards beyond 1000 yards. Range is displayed in 0.1 yard or meter resolution.
  • Page 8 LINE OF SIGHT (LOS) AND ANGLE MODIFIED RANGE (AMR™) The KILO2000 provides 2 simple modes of operation. Line of sight is the range to the target independent of angle. It is comparable to the “hypotenuse” of a triangle. When ranging in LOS mode, the distance is displayed in addition to the angle of incline.
  • Page 9 ANGLE MODIFIED RANGE sigoptics.com ANGLE MODIFIED RANGE Angle Modified Range (AMR) is 433 yards Example: LOS range of 500 yards 30° decline equals to an AMR of 433 yards.
  • Page 10 LUMATIC™ OLED DISPLAY The KILO2000 has the most advanced display on the market. Our OLED display has the largest dynamic range providing for high brightness in bright sunlight or snow conditions, yet will dim down to near night vision levels at dusk and dawn. No other display offers this adaptive ability to prevent your pupil from constricting in low light causing you to no longer be able to see your target.
  • Page 11 sigoptics.com A- Circle center aiming feature – this is your aiming feature or reticle to determine range B- 5 Character alphanumeric digits for range and angle display C- Battery Status indicator D- M and Y unit of measure selection E- LOS and AMR selection F- LAST target selection 8 8 8.8.8 LOS AMR...
  • Page 12 W WARNING Safety and Operation Procedures The KILO2000 is classified as a Class 3R product. There are a few precautions that are important to remember: • Do not depress the RANGE button while aiming at the human eye or while looking into the transmitting optics on the objective side •...

  • Page 13: Operation

    OPERATION The KILO2000 was designed to get you up and running without the typical complexity of buried menus and programming modes. The rangefinder comes out of box in the following configuration: (a) Best Target (rangefinder returns the best or most likely target, not the first or last)
  • Page 14 SET UP Installing the Battery Remove the battery cap by turning the cap in a counter-clockwise direction. Insert (1) CR2 Primary Lithium battery (+) terminal side first. The (-) terminal should be facing out. Place the cap onto the (-) battery terminal and reinstall the battery cap by turning the cap in the clockwise direction.
  • Page 15 After installation of the battery and depressing the RANGE button, the status of the KILO2000 is displayed: - - - - Installing the Lanyard Install the lanyard loop through the lanyard attachment point. Pass the lanyard back through the loop for secure attachment.

  • Page 16: Diopter Adjustment

    Diopter Adjustment The diopter or focus adjustment is located just inside of the eyecup. The focus adjustment is used to bring the OLED display into sharp focus along with the target image. The diopter adjustment can turn clockwise or counter-clockwise depending upon the user’s prescription.

  • Page 17: Display Information

    sigoptics.com DISPLAY INFORMATION The OLED display shows you the center aiming circle, the unit of measure (Y), Angle Modified Range mode (AMR) and the remaining battery status. The display will remain active for up to 10 seconds. You can then press the RANGE button to determine range to target. If you press the RANGE button while the rangefinder is off and continue to hold the RANGE button down, the rangefinder will automatically switch into SCAN mode within 1 second.

  • Page 18: Changing Modes Of Operation

    HyperScan MODE While the KILO2000 supports single button push ranging operation, it is highly recommended that you push and hold the RANGE button down to activate HyperScan mode. This mode allows you to scan targets at 4X/second which significantly improves ranging performance at extreme distances. As the ranging distances are updated very quickly in HyperScan mode, once you release the RANGE button the last acquired distance will be displayed.

  • Page 19: Programming Sequence

    sigoptics.com PROGRAMMING SEQUENCE The sequence of the programming steps has been calibrated to reflect the frequency of potential setting changes, for example it is more likely that you would change from BEST to LAST target so it is the first programming step, whereas Unit of Measure (Y or M) is the last programming step as you will likely set that once and leave it in that setting.
  • Page 20 2. OLED Display Brightness After selecting and saving BEST or LAST Target, the rangefinder will then index to the next programming mode which is OLED Display Brightness. Your current selection will be flashing (AUTO is default). You can toggle between LO1, LO2, LO3, MED1, MED2, MED3, HI1, HI2, HI3 or AUTO by pressing the RANGE button.
  • Page 21 sigoptics.com you do not press and release the MODE button the rangefinder will save your displayed setting (LOS or AMR) and turn off. If you choose LOS Mode, the rangefinder will display the Line of Sight range independent of angle of incline or decline. However, when set to LOS Mode and ranging targets, after the RANGE button is released, the rangefinder will alternatively display every two (2) seconds for up to ten (10) seconds, the last LOS range distance acquired and the corresponding angle of incline or decline for that last distance acquired.

  • Page 22: Frequently Asked Questions (Faqs)

    If this doesn’t fix the problem you may have switched the KILO2000 into one of the low brightness settings for the OLED display. Go into a dark room and press the RANGE button.
  • Page 23 For example, at dusk or dawn your rangefinder may be able to range trees at over 2000 yards but in bright sunlight may only achieve 1100 yards. This is normal, however, the KILO2000 is the highest performance compact rangefinder available.

  • Page 24: Specifications

    KILO2000 SPECIFICATIONS Magnification Objective Clear Aperture 25mm Exit Pupil 3.6mm Eye Relief 15mm Angular (FOV) 6.78° FOV @ 100yds 35.67 ft Laser Divergence 1.4 mrad Range Response Time .25 sec Scanning Range Accuracy Under 100 yds .1 yds Max Range...
  • Page 25 sigoptics.com A – 3 in / 76mm B – 4.2 in / 107mm C – 1.3 in / 33mm...
  • Page 26 W DANGER CLASS 3R LASER PRODUCT INVISIBLE LASER RADIATION - AVOID DIRECT EYE EXPOSURE This product complies with IEC 60825-1: 2014-05 Ed 3.0 and complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007. λ...
  • Page 27 sigoptics.com Shielded interference cable must be used with the equipment in order to comply with the limits for a digital device pursuant to Subpart B of Part 15 of FCC Rules. Specifications and designs are subject to change without any notice or obligation on the part of the manufacturer.

  • Page 28: Sig Sauer Electro-Optics Infinite Guarantee

    Guarantee has your back, forever. Period. We will repair or replace your SIG SAUER product in the event it becomes damaged or defective, at no charge to you. If we cannot repair your product, we will replace it with a product in perfect working order of equal or better physical condition.
  • Page 29 If, during that five-year period, these products are found to have electronic or Tritium component defects in materials or workmanship, SIG SAUER will repair your product, at no charge to you. If we cannot repair your product, we will replace it with a product in perfect...
  • Page 30 NOTES:...
  • Page 31 sigoptics.com...
  • Page 32 FOR PRODUCT SERVICE ON THIS MODEL, PLEASE CALL 603-610-3000 19861 SW 95th Avenue, Portland, OR 97062 USA sigoptics.com P/N 7400220-01 R04...
