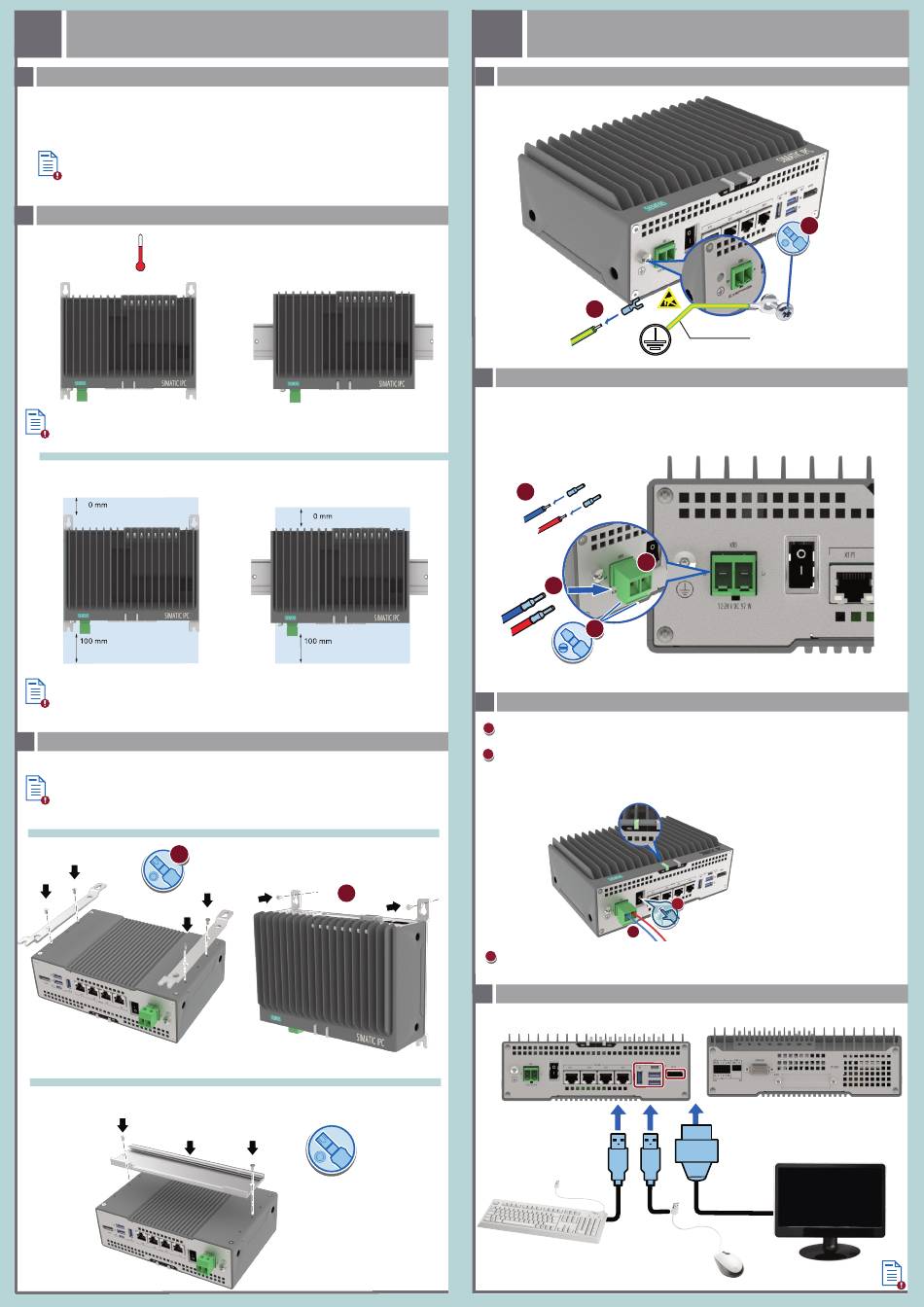

Siemens SIMATIC IPC BX-35A Quick Install Manual

1
Mounting the device
1.1 Before mounting and commissioning
IMPORTANT: observe all documents enclosed with the device and the operating instructions manual
before mounting and connecting the device. You can find the complete documentation of the device
on the internet (http://www.siemens.com/simatic-ipc-doku-portal).
The manual symbol refers to detailed information in the operating instructions.
1.2 Valid mounting positions
50 °C*
Wall mounting
0 °C
15W CPU, 30W PoE, 3W M.2 B key and E key
* Configuration:
Free space required around the device
5
Ensure that the climatic environmental conditions for the specific mounting position are
observed.
Mounting the device
1.3
Ensure that the mounting surface on the wall can bear four times the total weight of the
device, including fixing elements.
Use only the anchors and screws specified in the operating instructions.
•
Wall mounting
1
T10
•
Mounting on DIN rails
2.1
Mounting on DIN rails
2.2
5
2.3
2
2.4 Connecting mouse, keyboard, monitor
T10
2
Connecting the device
Connecting the protective earth
1
M4
Connecting the power supply
The device must only be connected to a rated 12-24 V (9-36 V range) DC power supply which satisfies the
requirements of safety extra low voltage (SELV) or protective extra low voltage（PELV) according to
IEC/EN/DIN EN/UL 61010-2-201.
1
4
2
M
L+
3
0.5 x 2
Switching on the device
Connect to the power supply.
1
2
Set the on/off switch to position "I" (ON). The "PWR" LED lights up.
Note: Operating System is not installed in new device.
1
3 Follow the instructions on the screen.
USB
2
T20
Torque: 1.5 Nm
2.5 mm² = AWG14
2
DisplayPort
