LP700-0050
LP700-0051
Triplex Ceramic
Plunger Pump
Operating Instructions/
Repair and Service
Manual
Contents:
Installation Instructions: page 2
Pump Specifications:
Torque Information:
Exploded View:
Parts and Kits:
Repair Instructions:
Dimensions:
Warranty Information:
page 3
page 3
page 4
page 5
page 6
page 7
back page
Advertisement
Related Manuals for Giant LP700
Summary of Contents for Giant LP700

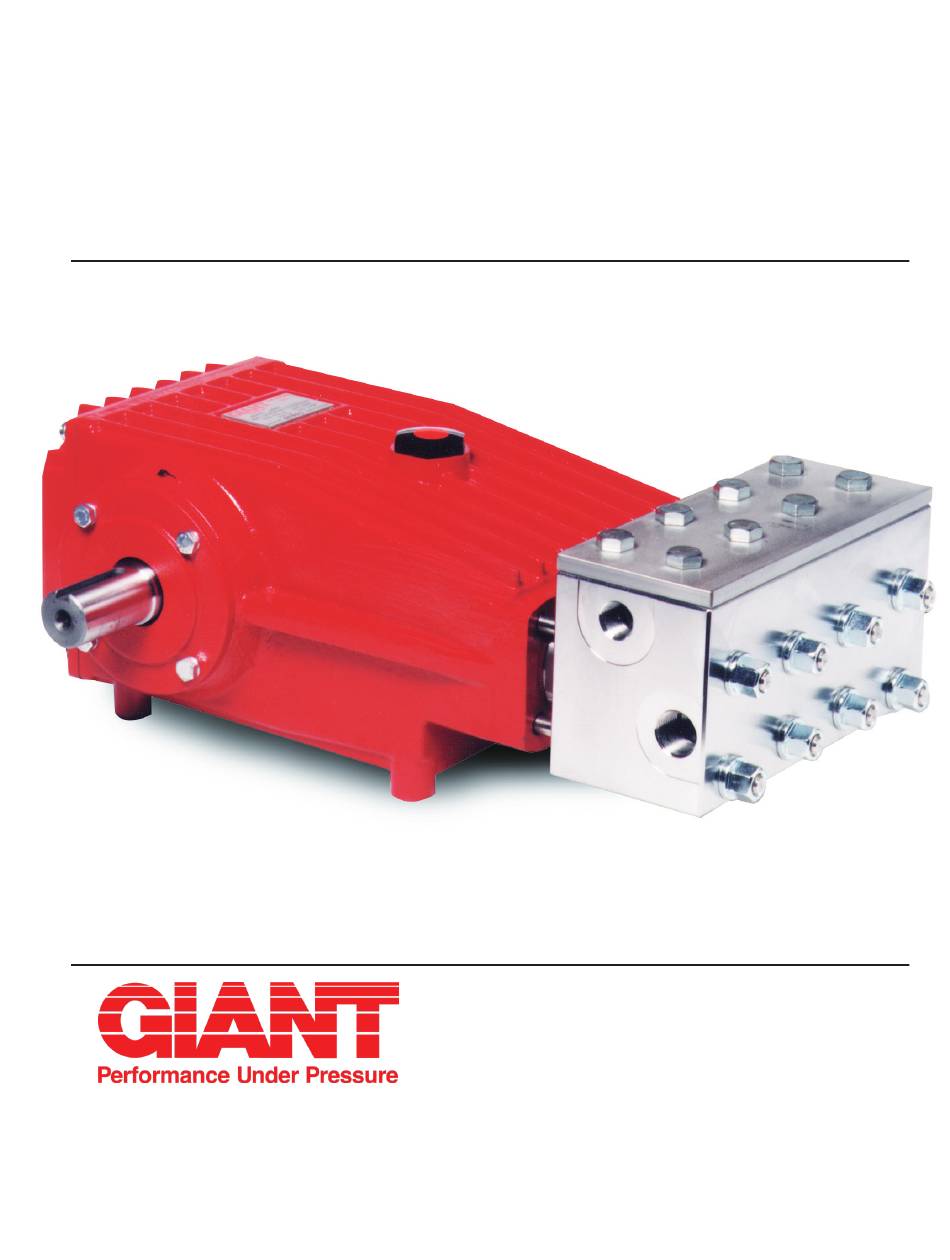

- Page 1 Models Triplex Ceramic Plunger Pump Operating Instructions/ LP700-0050 Repair and Service Manual LP700-0051 Contents: Installation Instructions: page 2 Pump Specifications: page 3 Torque Information: page 3 Exploded View: page 4 Parts and Kits: page 5 Repair Instructions: page 6 Dimensions:...
- Page 2 For information on intermittent operation and Shaft protector calculating of the performance data, see the Giant When the pump is in operation, the open shaft end Industries assembly instructions. must be covered up by shaft protector (21), the driven shaft side and coupling by a contact-protector.
- Page 3 Coat thread of new plunger lightly with standard. threadlocker. Insert the seal sleeve together with the plunger into crankcase guide until the threads of the plunger (29) push against plunger (25). LP700 Torque Specifications/Lubrication Information Position Thread Lubrication Torque Amount Molycote Cu-Paste 1” BSP Loctite 5400 29 ft.-lbs.
- Page 4 LP700-0050 and LP700-0051 EXPLODED VIEW...
- Page 5 LP700-0050 and LP700-0051 SPARE PARTS LIST ITEM PART # DESCRIPTION ITEM PART # DESCRIPTION 07759 Crankcase 13420 Seal Sleeve 13000 Oil Filler Plug Assembly 22764 Lock Pin 05940 Cover Plate 08087-0050 Rope Packing 07223-0100 Spring Ring 13421 Guide Ring 05051...
- Page 6 LP700-0050 and LP700-0051 DIMENSIONS - inches (mm)
- Page 7 1. Five (5) years from the date of shipment for all pumps used in portable pressure washers with NON-SALINE, clean water applications. 2. Two (2) years from the date of shipment for Giant pumps used in car wash applications. 3. One (1) year from the date of shipment for all other Giant industrial and consumer pumps.
