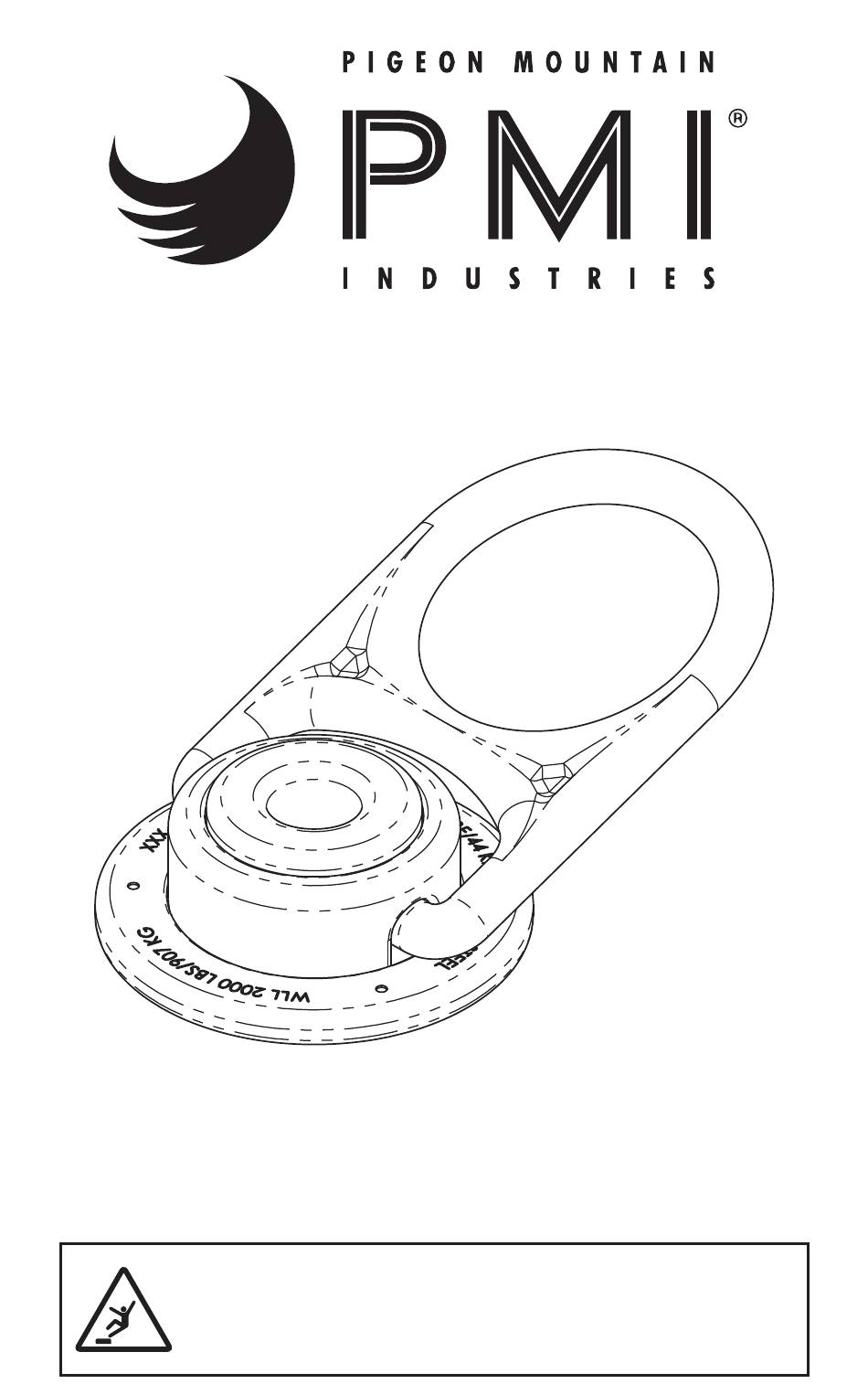

OPERATION AND INSTRUCTION MANUAL
Swivel Anchor Model: HD26248
IMPORTANT!!!
ALL PERSONS USING THIS EQUIPMENT MUST READ AND UNDERSTAND ALL INSTRUCTIONS.
FAILURE TO DO SO MAY RESULT IN SERIOUS INJURY OR DEATH. USERS SHOULD BE FAMILIAR
WITH PERTINENT REGULATIONS GOVERNING THIS EQUIPMENT. ALL INDIVIDUALS WHO USE
THIS PRODUCT MUST BE PROPERLY INSTRUCTED ON HOW TO USE THIS DEVICE.
V4-0416
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PMI HD26248
Summary of Contents for PMI HD26248
- Page 1 OPERATION AND INSTRUCTION MANUAL Swivel Anchor Model: HD26248 IMPORTANT!!! ALL PERSONS USING THIS EQUIPMENT MUST READ AND UNDERSTAND ALL INSTRUCTIONS. FAILURE TO DO SO MAY RESULT IN SERIOUS INJURY OR DEATH. USERS SHOULD BE FAMILIAR WITH PERTINENT REGULATIONS GOVERNING THIS EQUIPMENT. ALL INDIVIDUALS WHO USE THIS PRODUCT MUST BE PROPERLY INSTRUCTED ON HOW TO USE THIS DEVICE.
-
Page 2: Use Instructions
PURPOSE The HD26248 is an anchorage connector designed to function as an interface between the anchorage and a fall protection, work positioning, rope access, or rescue system for the purpose of coupling the system to the anchorage. Any references to “anchorage connector”... - Page 3 LABEL LOCATIONS 180° 2.25”ø 8.0”ø (57.15mm) (203.2mm) 5.5” (139.7mm) 360° 3.0” 1.0” (76.2mm) (25.4mm) Tensile Strength (UTS): 10,000-lbf (44kN) Working Load: 2,000-lbs (907kg) Weight: 1.2-lbs (544.3g) Materials: Zinc Plated Steel Regulatory Compliance: Meets or exceeds ANSI Z359.1(07), ANSI Z359.7(11), OSHA 1926.502, OSHA 1910.66, EN 795:1996 Class A LOADING CONDITIONS DIAGRAM LOAD...
-
Page 4: Concrete Mounting
STEEL MOUNTING 5/8”-11 Torque Range: Lock Nut 75-90 ft-lbs * Use tapered washer with I-beams (100-120Nm) that have tapered flanges 5/8” Lock Washer drill 5/8” (16mm)Ø 5/8”-11x4” Hex Bolt * 1/4” (6mm) For steel applications a grade-5, 8 (or equivalent) bolt no shorter than 4” (100mm) with a locking nut and washer must be used. - Page 5 WELD ON MOUNTING Grade - 5 or 8 bolt 5/8”-11 x 1-3/4” Internal Tooth Lock Washer Torque Range: 75-90 ft-lbs (100-120Nm) * Weld 3/8” min (9.5mm) * Welding procedure must be approved by an engineer or other qualified person to be compatible with any and all structural & operational characteristics of the selected installation location.
- Page 6 The user shall be equipped with a means of limiting the maximum dynamic forces exerted on the user during the arrest of a fall to a maximum of 8 kN (1800-lbf). (ANCHOR POINT) WORK SURFACE WARNING! Swing falls may occur The structure the an- when the worker is not directly under chorage is attached to...
-
Page 7: Kit Contents
KIT CONTENTS PART NUMBER HD26250 (Steel Mounting Hardware Kit) HD26226 (Swivel with Steel Mounting kit) HD26228 (Concrete Hardware Kit) HD26227 (Swivel with Concrete Mounting Kit) HD26252 (Weld-on Mounting Kit) HD26240 (Backing Plate Only) For more information:... -
Page 8: Maintenance, Cleaning And Storage
All implied warranties imposed by law in connection with the sale of PMI products are also limited in duration to a period of one year. PMI expressly excludes and shall not be liable for any consequential damages arising out of any breach of the express or implied warranties on sales of PMI products.
