Summary of Contents for SHOWTEC Booster Pro
- Page 1 MANUAL ENGLISH Booster Pro Ordercode: 50788/50789 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 Input Status ..................................7 Assigning Input Signal to Outputs ..........................8 Control Modes ................................8 Booster Pro (DMX control) ............................8 Booster Pro DMX Set Up ............................9 Data Cabling ................................. 9 Control Panel ................................10 Main Menu Options ..............................10 1. Input A ...................................11 1.1.
- Page 3 Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: ● Showtec Booster Pro ● Pro power cable (1,5 m) ●...
- Page 4 ● If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service. ● For adult use only. The device must be installed out of the reach of children. Never leave the unit running unattended....
- Page 5 Booster Pro Operating Determinations ● This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. ● The maximum ambient temperature ta = 40°C must never be exceeded.
- Page 6 Booster Pro Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.

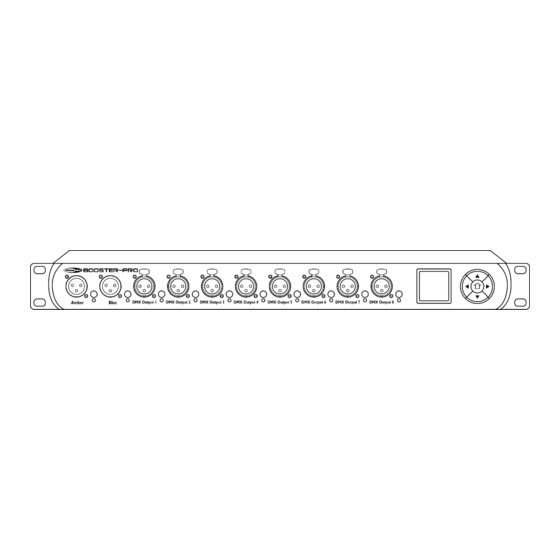

- Page 7 Description of the device Features The Showtec Booster Pro is an optically isolated DMX splitter and booster. It is equipped with 2 inputs which can be patched to 8 selectable outputs. The device supports RDM and offers real-time DMX monitoring. It is also possible to set the DMX timing. Each output has a monitoring function which controls the status of the connected cables in real time.
- Page 8 12) Ground/earth connection Installation Remove all packing materials from the Booster Pro. Check if all foam and plastic padding is removed. Secure the equipment into a 19" rack if preferred. Connect all cables. Do not supply power before the whole system is set up and connected properly.
- Page 9 Booster Pro (DMX control) 01) Fasten the splitter to a 19-inch rack. 02) Use a 3-pin/5-pin XLR cable to connect the Booster Pro and other devices. 03) Connect the "Amber" socket to a light controller. 04) Connect the "Blue" socket to a light controller.
- Page 10 Booster Pro Booster Pro DMX Set Up Fig. 04 Note : Link all cables before connecting electric power While using multiple Boosters Pro, check the currently active mode. ● Connect a maximum of 2 Boosters Pro, when DMX and RDM or Classic DMX modes are active.
- Page 11 Booster Pro Control Panel A) OLED display UP button C) RIGHT button D) LEFT button DOWN button HOME button Fig. 05 Main Menu Options 01) Upon start-up, the device will show the following screen: 02) Press the LEFT button to enter main menu. The display will show: 03) Press the UP/DOWN buttons to select one of the 6 options: ●...
- Page 12 01) The display will show: 02) Press the UP/DOWN buttons to select one of the 10 options: ● DMX and RDM (the Booster Pro functions as a bi-directional RDM splitter) ● Classic DMX (the Booster Pro only receives DMX signals, RDM is inactive) ●...
- Page 13 Booster Pro 1.2. Failure Behaviour In this menu, it is possible to determine how the device will react to a DMX signal error. 01) The display will show: 02) Press the UP/DOWN buttons to select one of the 2 options: ●...
- Page 14 Booster Pro 3. Outputs In this menu, you can adjust each of the 8 outputs. 01) The display will show: 02) Press the UP/DOWN buttons to select one of the 8 outputs. 03) Press the RIGHT button to enter the desired output. The display will show: 04) Repeatedly press one of the 8 input signal selectors (06) or press the UP/DOWN buttons to switch the input signal source.
- Page 15 Booster Pro 5. Settings In this menu, it is possible to set the device’s name and view the device’s specifications. 01) The display will show: 02) Press the UP/DOWN buttons to select one of the 2 options: ● Label ●...
- Page 16 Booster Pro 08) Once you have edited all the desired characters, press the LEFT button. The display will show: 09) Press the RIGHT button to save changes. 10) Press the HOME button to discard changes. 5.2. Information 01) The display will show: 02) It is now possible to view all the system information: ●...
- Page 17 04) If all of the above appears to be O.K., plug the unit in again. 05) If you are unable to determine the cause of the problem, do not open the Booster Pro, as this may damage the unit and the warranty will become void.
- Page 18 Booster Pro Problem Probable cause(s) Solution • Check if power is switched on and No power to the fixture The fixture does cables are plugged in not function at all Primary fuse blown • Replace fuse Fixtures reset The controller is not connected.
- Page 19 Booster Pro Product Specifications Model: Showtec Booster Pro Input voltage: 100-240V AC, 50/60Hz Power consumption: Fuse: F1AL/250V Output channels: 8 DMX/RDM channels Control protocol: DMX-512 USITT, RDM Connections: 2 x 3-pin/5-pin DMX signal connector IN (Amber/Blue), 8 x 3-pin/5-pin DMX...
- Page 20 ©2018 Showtec...
