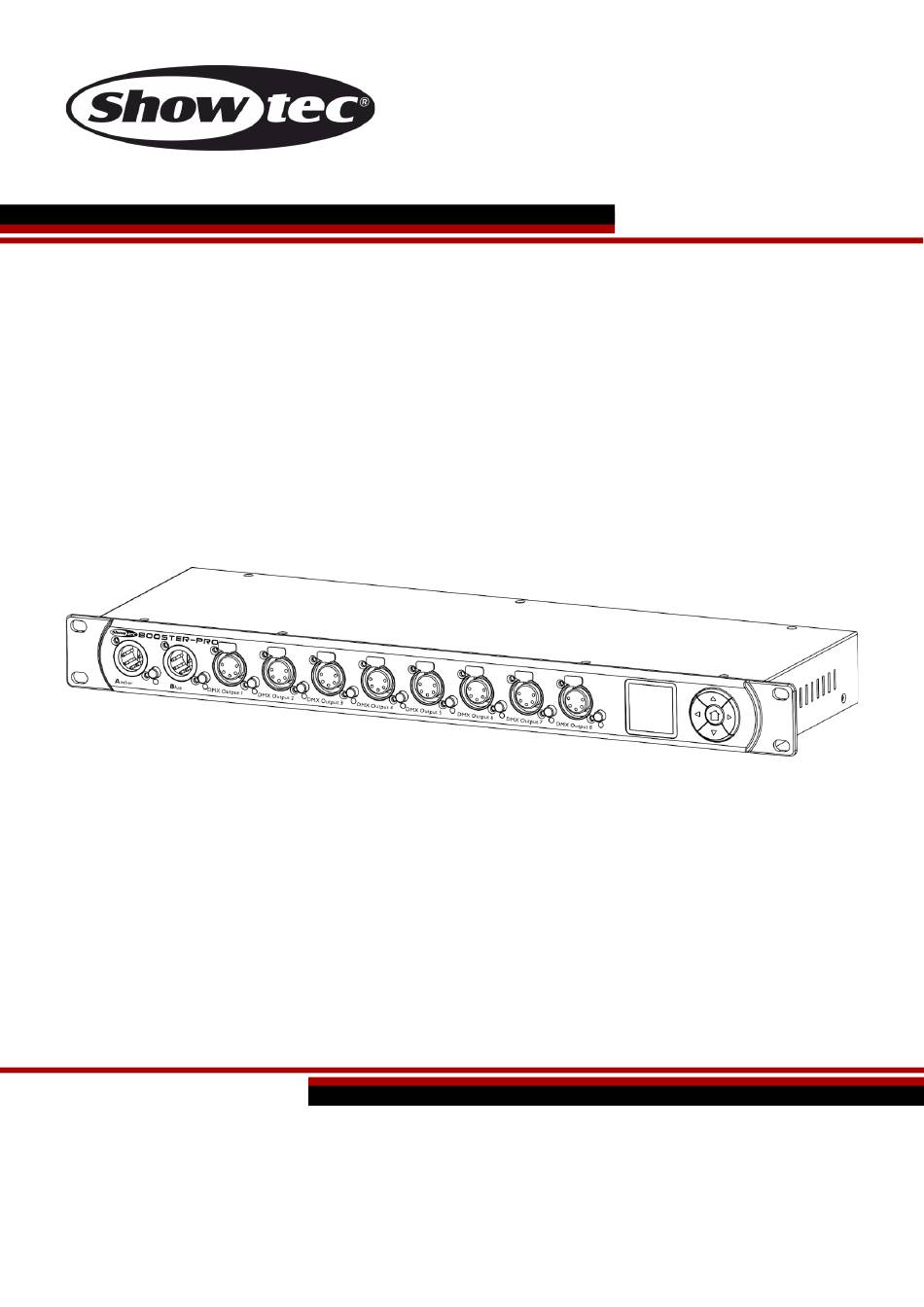

- Page 1 USER MANUAL ENGLISH Booster Pro Product code: 50789 Firmware: Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 Booster Pro Preface Thank you for purchasing this Showtec product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 3: Table Of Contents
Booster Pro Table of contents Introduction ................................4 Before Using the Product ..........................4 Intended Use ............................... 4 Text Conventions ..............................4 Symbols and Signal Words ..........................5 Symbols on the Information Label ........................5 Safety ..................................5 Warnings and Safety Instructions ........................6 Requirements for the User .......................... - Page 4 Booster Pro Mode ..............................24 Failure Behavior ..........................25 Outputs .................................25 DMX Error Alarm ............................26 Settings ................................26 Label ..............................26 Information ............................27 Set Default ..............................27 Troubleshooting ..............................28 Maintenance ..............................28 Safety Instructions for Maintenance ......................28 Preventive Maintenance ..........................28 Basic Cleaning Instructions ........................29 Corrective Maintenance ..........................29 Replacing the Fuse .............................29 Deinstallation, Transportation and Storage ....................
-
Page 5: Introduction
The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: ● Showtec Booster Pro ● Schuko to pro-power cable (1,5 m) ● User manual Fig. -
Page 6: Symbols And Signal Words
Booster Pro Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in DANGER death or serious injury. -
Page 7: Warnings And Safety Instructions
Booster Pro Warnings and Safety Instructions DANGER Danger for children For adult use only. The device must be installed beyond the reach of children. ● Do not leave various parts of the packaging (plastic bags, polystyrene foam, nails, etc.) within children’s reach. -
Page 8: Requirements For The User
Booster Pro Attention General safety ● Do not block the ventilation openings. Without proper heat dissipation and air circulation, the internal components may overheat. This can result in product damage. ● Do not shake the device. Avoid brute force when installing or operating the device. ●... -
Page 9: Description Of The Device
Description of the Device The Showtec Booster Pro is an optically isolated DMX splitter and booster. It is equipped with 2 inputs which can be patched to 8 selectable outputs. The device supports RDM and merging. It also offers real- time DMX monitoring of the input and output ports. -
Page 10: Product Specifications
Booster Pro Product Specifications Model: Booster Pro Electrical: Input voltage: 100–240 V AC, 50/60 Hz Power consumption: Fuse: F1 A, 250 V Physical: Dimensions: 482 x 137 x 44 mm (L x W x H) Weight: 2 kg Operation and control: Control protocols: DMX-512, RDM Control panel:... -
Page 11: Installation
Booster Pro Installation Safety Instructions for Installation Attention Make sure there is enough space for ventilation around the device. ● Do not block the ventilation openings. Without proper heat dissipation and air circulation, the internal components may overheat. This can result in product damage. ●... -
Page 12: Setup
Booster Pro Setup Warnings and Precautions Attention Connect all data cables before supplying power. Disconnect power supply before connecting or disconnecting data cables. DMX Connection DMX-512 Protocol DMX-512 is a communication protocol used to control stage lighting and effects. Devices on a serial data link must be daisy-chained in a single line. To comply with the TIA-485 standard, no more than 32 devices should be connected on one data link. -
Page 13: Setup Examples
Booster Pro Setup Examples A typical setup with the device used as a splitter/booster: Fig. 07 A typical setup with 2 controllers: Fig. 08 Product code: 50789... -
Page 14: Operation
Booster Pro Operation Safety Instructions for Operation Attention This device must be used only for the purposes it is designed for. This device is intended for use as a DMX splitter/booster. It is suitable only for indoor installation. It is not suitable for households. -
Page 15: Input Ports Monitoring
Booster Pro ● Use the MENU button to open the main menu, to exit the current submenu and to return to the main menu. ● Use the UP/DOWN buttons to navigate through the menus and to scroll through the available characters/numbers. -
Page 16: Access Via The Main Menu
Booster Pro To view the second screen with information, press the UP/DOWN buttons on the control panel (11). The second screen provides information about the presence of DMX signal and the incoming DMX values at the respective input port. See 6.9.1.3. Status Information on pages 21–22 and 6.9.2.3. Status Information on pages 23–24 for more information. -
Page 17: Access Via The Main Menu
Booster Pro Access via the Main Menu You can configure the 8 output ports from the main menu. The configuration options are the same as via the quick access. Refer to 6.9.4. Outputs on page 25 for more information. Merge Function The Booster Pro supports merging. -
Page 18: Led Statuses
Booster Pro LED Statuses Each DMX input and output is provided with a LED indicator. The color of the LED for Input A is amber, and for Input B is blue. The LED indicator (04) for Input A (Amber) has the following statuses: ●... -
Page 19: Menu Overview
Booster Pro Menu Overview Product code: 50789... - Page 20 Booster Pro Product code: 50789...
-
Page 21: Main Menu Options
Booster Pro Main Menu Options The main menu has the following options: Press the UP/DOWN buttons to navigate through the main menu. 02) Press the ENTER button to open the submenus. Note: Currently active selections are marked with an asterisk (*), for example: Input A In this menu you can configure the settings and monitor the status of Input A (Amber). -
Page 22: Failure Behavior
Booster Pro ● DMX and RDM: The device functions as a bidirectional RDM splitter ● Classic DMX: The device only receives and forwards DMX data. The RDM function is disabled ● DMX 40HZ Frame Int.: DMX at 40 frames per second, frame integrity is on ●... -
Page 23: Input B
Booster Pro The first screen provides information about the presence of DMX signal, the DMX channel and frame rate, the port mode and the outputs assigned to Input A and Input B. The second screen provides information about the presence of DMX signal and the incoming DMX values at Input A. -
Page 24: Failure Behavior
Booster Pro ● DMX 40HZ Frame Int.: DMX at 40 frames per second, frame integrity is on ● DMX 30HZ Frame Int.: DMX at 30 frames per second, frame integrity is on ● DMX 20HZ Frame Int.: DMX at 20 frames per second, frame integrity is on ●... -
Page 25: Merge
Booster Pro Note: You can quickly access the status of the port with the input port button (06). See 6.4. Input Ports Monitoring on page 14–15 for more information. Merge In this menu you can configure the merging options. 01) Press the UP/DOWN buttons to select one of the following 3 options: ●... -
Page 26: Failure Behavior
Booster Pro Failure Behavior In this submenu you can set the behavior of the device in case of a DMX failure. 01) Press the UP/DOWN buttons to select one of the following 2 options: ● Off: The device will black out the output ●... -
Page 27: Dmx Error Alarm
Booster Pro DMX Error Alarm In this menu you can activate the sound alarm in case of a DMX error. 01) Press the UP/DOWN buttons to toggle between Off and On: 02) Press the ENTER button to confirm your choice. Settings In this menu you can change the name of the device and view the device’s parameters. -
Page 28: Information
Booster Pro 06) Press the MENU button to exit edit mode. 07) Press the ENTER button to confirm the changes or the MENU button to discard the changes. Information In this submenu you can view the device’s parameters. Press the UP/DOWN buttons to toggle between the following 2 screens. The available information is: ●... -
Page 29: Troubleshooting
Booster Pro Troubleshooting This troubleshooting guide contains solutions to problems which can be carried out by an ordinary person. The device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage. -
Page 30: Basic Cleaning Instructions
Booster Pro Basic Cleaning Instructions To clean the device, follow the steps below: Disconnect the device from the electrical power supply. Allow the device to cool down for 5 minutes. 03) Clean the device with a soft, lint-free cloth. Attention ●... -
Page 31: Deinstallation, Transportation And Storage
Booster Pro Deinstallation, Transportation and Storage ● Disconnect power supply before deinstallation. ● Use the original packaging to transport the device, if possible. ● Clean the device before storing. Follow the cleaning instructions in chapter 8.2.1. Basic Cleaning Instructions on page 29. ●... - Page 32 ©2020 Showtec...
