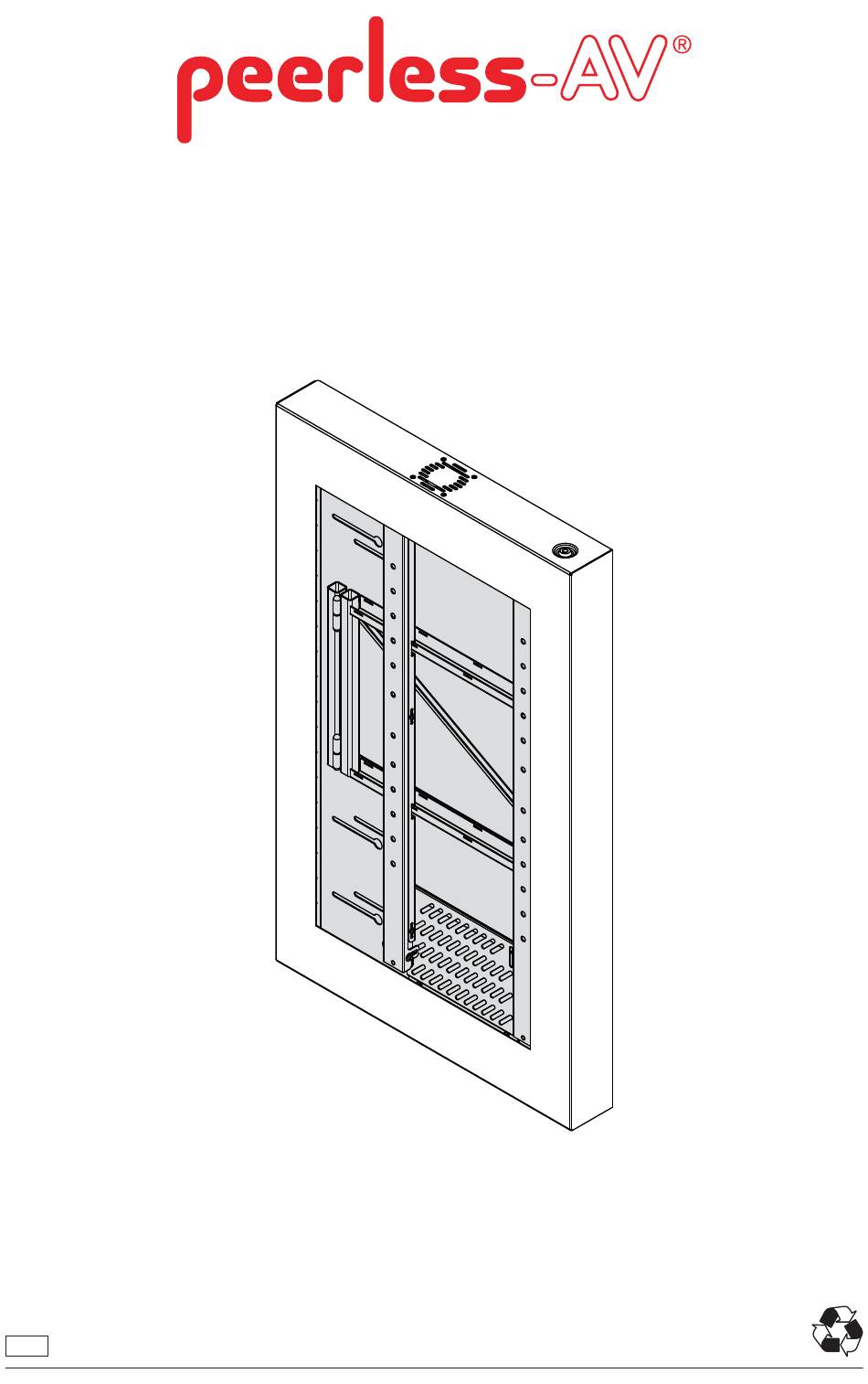

  • Page 1 2017-01-06 #:150-9083-3 (2020-03-09)
  • Page 2 WARNING ENG - This product is designed to be installed on wood stud, solid concrete or cinder block walls. Hardware is included for wood stud, solid concrete and cinder block installation. Before installing make sure the supporting surface will support the combined load of the equipment and hardware. Screws must be tightly secured. Do not overtighten screws or damage can occur and product may fail.
  • Page 3 Tools Needed for Assembly. ENG To properly tighten screws: Tighten until screw head makes contact, then tighten another 1/2 turn. Do not overtighten screws. +1/2 5/32" (4mm) 3/8" (10mm) 5/16" (8mm) 2017-01-06 #:150-9083-3 (2020-03-09)

  • Page 4: Parts List

    Parts (Before beginning, make sure you have all parts shown below). Parts List KIP640-35D KIP642-35D KIP643-35D KIP646-35D KIP640-35D-S KIP642-35D-S KIP643-35D-S KIP646-35D-S Description Part # Part # Part # Part # A kiosk BLK 151-P1585 151-P1586 151-P1660 151-P1587 kiosk SLV 151-4585...
  • Page 5 A ( 1 ) N ( 2 ) B (4) C (4) kiosk adaptor bracket M5 x 12 mm M5 x 25 mm D (4) E (4) M6 x 12 mm M6 x 25 mm F (4) G (4) M8 x 12 mm M8 x 25 mm J ( 2 ) K ( 1 )
  • Page 6 J ( 2 ) 2017-01-06 #:150-9083-3 (2020-03-09)
  • Page 7 Wood stud wall. Concrete/Cinder block. WARNING ENG - When installing Peerless wall mounts on a wood stud wall covered with gypsum board (drywall), verify that the wood studs are a minimum of 2" x 4" nominal size. Do not install over gypsum board thicker than 5/8". 2a-1 Use stud finder to locate and mark stud center lines.
  • Page 8 2a-2 Level wallplate. Mark mounting holes on stud center lines. 2017-01-06 #:150-9083-3 (2020-03-09)
  • Page 9 2a-3 2.5" (64mm) 5/32" 5/32" (4mm) (4mm) Drill mounting holes into supporting surface (2.5" (64mm) minimum depth required). Mounting hole must center on stud. 2a-4 3/8" Maximum 80 in. • lb (9 N.M.). (10mm) Máxima 80 in. • lb (9 N.M.). Maximum 80 in.
  • Page 10 WARNING ENG - When installing Peerless wall mounts on a concrete wall, the wall must be at least 8" thick with a minimum compressive strength of 2000 psi. When installing Peerless wall mounts on a cinder block wall, the cinder blocks must meet ASTM C-90 specifications and have a minimum nominal width of 8".
  • Page 11 2b-2 2.5" (64mm) 5/16" 5/16" (8mm) (8mm) Drill mounting holes into supporting surface (2.5" (64mm) minimum depth required). Do not drill into mortar joints. 2b-3 Insert anchor flush to concrete. L (4) 2017-01-06 #:150-9083-3 (2020-03-09)
  • Page 12 2b-4 3/8" Maximum 80 in. • lb (9 N.M.). (10mm) Level wallplate. Install using concrete anchors and wood screws provided. M (4) 2017-01-06 #:150-9083-3 (2020-03-09)
  • Page 13 Center adapter brackets vertically on back of screen. ENG Use of spacers is optional. G(4) H (4) B (4) D (4) H (4) H (4) I (4) E (4) F (4) G (4) H (4) I (4) I (4) 2017-01-06 #:150-9083-3 (2020-03-09)

  • Page 14: Side View

    SIDE VIEW 2017-01-06 #:150-9083-3 (2020-03-09)
  • Page 15 Note: Mounting Arm swings out to access adapter brackets and behind display 2017-01-06 #:150-9083-3 (2020-03-09)
  • Page 16 J ( 2 ) KIP640-35D, KIP640-35D-S, KIP642-35D, KIP642-35D-S, KIP643-35D, KIP643-35D-S, KIP646-35D, KIP646-35D-S, KIP647-35D-S, KIP647-35D-S, KIP648-35D, KIP648-35D-S, KIP649-35D, KIP649-35D-S, KIP655-35D, KIP655-35D-S 2017-01-06 #:150-9083-3 (2020-03-09)
  • Page 17 This page intentionally left blank. 2017-01-06 #:150-9083-3 (2020-03-09)
  • Page 18 This page intentionally left blank. 2017-01-06 #:150-9083-3 (2020-03-09)
  • Page 19 This page intentionally left blank. 2017-01-06 #:150-9083-3 (2020-03-09)
  • Page 20 Garantia TÜR Garanti̇ Garanzia Záruka www.peerless-av.com/warranty Peerless-AV Peerless-AV Europe Peerless-AV América Latina 2300 White Oak Circle Unit 3 Watford Interchange, Av. de las Industrias 413 Aurora, IL 60502 Colonial Way, Watford, Herts, Parque Industrial Escobedo Email: tech@peerlessmounts.com WD24 4WP, United Kingdom General Escobedo N.L., México 66062...
