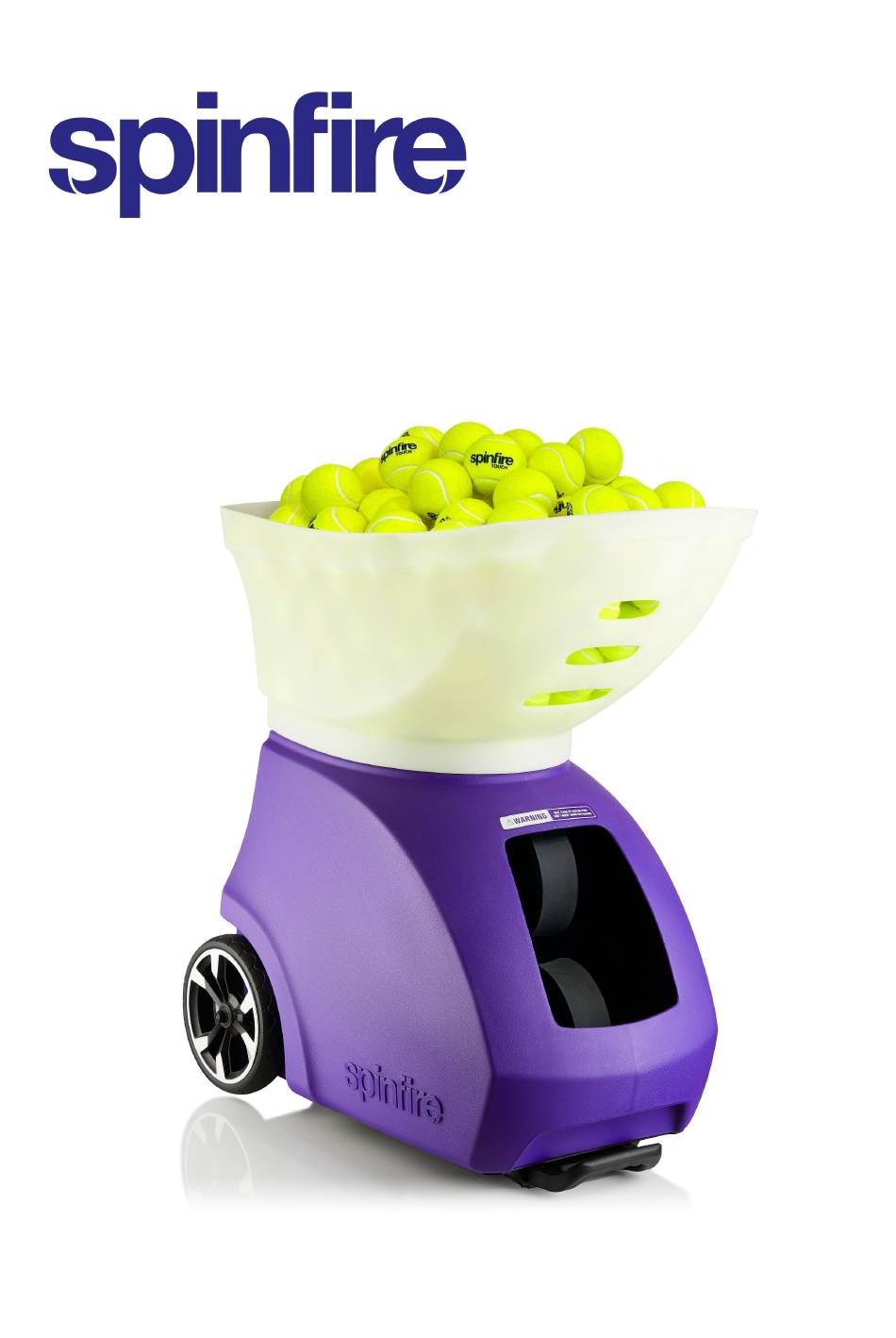

- Page 1 Spinfire Tennis & Padel Ball Machine Manual...
-
Page 3: Table Of Contents
Sealed Lead Acid (SLA) Battery or Lithium Battery............22 Troubleshooting........................22 Submitting a Support Request................... 22 Warranty..........................24 Warranty Administration....................24 Not Covered........................24 Conditions of Warranty..................... 24 EC Declaration of Conformity..................... 25 FCC & ISED RSS Warning:....................25 Spinfire Pro 2 Ball Machine |... - Page 4 RF exposure statement:....................26 Environmental Considerations................... 26 Materials & Sustainability....................26 Energy Efficiency......................27 Battery Usage & Disposal....................27 Lifespan & Maintenance....................27 End-of-Life Disposal & Recycling..................27 Packaging & Recycling.....................28 Manufacturer Details......................29 | Spinfire Ball Machine...
-
Page 5: Safety Warnings
Do not fill or refill the machine while it is firing balls. DO NOT USE IN WET WEATHER! The machine should not be used in wet conditions. The charger(s) & AC Adaptor are only to be used indoors. Spinfire Pro 2 Ball Machine |... - Page 6 Do not connect the battery in series or parallel. A Lithium LiFePO4 battery has a Battery Management System (BMS) which prevents charging at temperatures under 0°C and above 65°C. The battery cannot be used at all below 20°C and above 75°C. | Spinfire Ball Machine...
- Page 7 Using other balls such as cricket balls will damage your machine and will not be covered under warranty. Spinfire Pro 2 Ball Machine |...
-
Page 8: Before First Use
You should find this manual, a charger or AC adaptor and a remote control in the box. If you have ordered an external battery, AC adaptor or fast charger, they may also be in the box. | Spinfire Ball Machine... -
Page 9: Packaging
If you have an SLA battery, it should be charged at least once per month, even if it has not been used. This will maintain the life of the battery. For Lithium LiFePO4 batteries, it is recommended that you charge and discharge your battery once every 3 to 6 months. Spinfire Pro 2 Ball Machine |... -
Page 10: External Battery
The external battery cable includes a 32V 15A fuse built into it (note: 32V is correct for our 12V battery). If you are required to replace this, they can be purchased from local electronic stores or your Spinfire distributor. We also include one spare inside the battery bag’s pocket. Standard Charger If you ordered a Lithium LiFePO4 battery, please ensure you use our standard lithium charger. -
Page 11: Optional Fast Charger
Note, if you do have an internal battery, the AC Adaptor can still be used. It will not damage the internal battery. Your AC Adaptor should only be used in a dry environment. The Spinfire AC Adaptor has been tested to work perfectly with our machine and we do not recommend substituting it with a compatible model. -
Page 12: Software Updates
We recommend that your machine is stored inside/under cover in a dry environment and preferably in a Spinfire cover to protect it from debris. Do not leave your machine on court even with the protection of a cover as heavy rain may damage your machine. Do not store your machine in direct sunlight or inside a car (unless in shade) and always keep it upright. -
Page 13: Transportation
30°C (86°F). The machine with a 20Ah SLA battery weighs 24 kg (53lbs) (or 18 kg (40lbs) with an external battery) and should be lifted carefully with the use of the handles. Spinfire Pro 2 Ball Machine |... -
Page 14: Usage
Position it to the right if you have an external battery or AC adaptor and wish to power it from this source. This switch should be returned to the off (middle O) position when transporting or storing the machine. | Spinfire Ball Machine... - Page 15 ADJUST row. To turn on random, simply press DOWN to make the RANDOM row flash, then press LEFT or RIGHT to change the value to ON. Here we have increased the speed to 15 and turned random on: Spinfire Pro 2 Ball Machine |...
- Page 16 (an “R” will appear next to the value to confirm it is activated). The maximum interval during the 2 Line Drill - wide setting is 17 and for the 2 Line Drill - medium it’s 19. Note that the balls will | Spinfire Ball Machine...
- Page 17 4 degrees (20 units), randomly deciding when to fire a higher (deeper) or lower (shorter) ball. For example, you might receive three deep balls, followed by two short ones, then one deep ball, and so on. The sequence is entirely Spinfire Pro 2 Ball Machine |...
- Page 18 You can also randomize speed, spin and interval as described above (an "R" will appear next to the value to confirm it is active). 2 Line Drill Once pressed, you will enter a menu where you can select narrow, | Spinfire Ball Machine...
-
Page 19: Remote Control
Your remote should sit in the pocket in landscape position rather than portrait. By default, your remote control will control your machine and any other Spinfire ball machine in its proximity. If this is an issue, you can pair your remote to only control your machine and no other. - Page 20 Drill 2 Line Drill (1 = narrow, 2 = medium, 3 = wide, 4 = off). You can also turn on vertical random or advanced random (both will be turned on) to achieve random depth too. | Spinfire Ball Machine...
-
Page 21: Spinfire App
If you are able to try another public court at the facility, you may find improved results. Spinfire App Our Spinfire App is available on smartphone and smartwatch for both Apple and Android devices. Download the Spinfire App https://www.spinfiresport.com/spinfire-app-guide/... -
Page 22: Low Compression Balls
We recommend the use of Spinfire Touch balls or a brand thoroughly tested and recommended by your distributor (we do not recommend mixing brands). Pressureless balls will also allow your machine to perform at its best. Each ball will have a consistent bounce allowing you to consistently hit the spots on the court that you want. -
Page 23: Padel
Pickleball If you’d like to use your Spinfire Pro 2 Ball Machine for pickleball, a Pickleball Conversion Kit is available for purchase. This kit allows you to modify your machine with specialized pickleball throwing wheels, deflector wires and a chute insert for use with pickleballs. -
Page 24: Feed Safety
Sometimes, this can cause your machine to pause the feeder for no apparent reason. In these situations, it can be useful to turn this safety feature off while you troubleshoot this issue with your local Spinfire distributor. - Page 25 Any videos you can provide us are considered very helpful. If you can hear any unusual noises, please be sure to notify us of these and where you believe they are originating from. Spinfire Pro 2 Ball Machine |...
-
Page 26: Warranty
Should any part fail due to defective workmanship or faulty materials within the warranty period, Fry Developments Pty Ltd (trading as Spinfire) or its distributor will repair or, (at distributor’s option), replace the defective part free of charge. The warranty period is country specific, please contact the Spinfire distributor in your country or the place of purchase for details. -
Page 27: Ec Declaration Of Conformity
7. Parts installed from other manufacturers’ products will void this warranty. EC Declaration of Conformity We confirm that as at the 26th march, 2024, the Spinfire ball machines both conform with the Low Voltage Directive 2014/35/EU, Machinery Directive 2006/42/EC and the Radio Equipment Directive 2014/53/EU. -
Page 28: Rf Exposure Statement
2. This device must accept any interference received, including interference that may cause undesired operation. Environmental Considerations At Spinfire, we recognize the importance of minimizing our environmental impact. This section provides guidelines for responsible use, disposal, and recycling of your Spinfire tennis ball machine and its components. -
Page 29: Energy Efficiency
Using a pressurizer for regular tennis balls to extend their lifespan and reduce landfill waste. End-of-Life Disposal & Recycling At the end of its usable life, customers are encouraged to return their Spinfire tennis ball machine to their local distributor for responsible disposal. The distributor will: ●... -
Page 30: Packaging & Recycling
Packaging & Recycling The Spinfire tennis ball machine is shipped in 100% recyclable cardboard packaging. Customers are encouraged to: ● Retain the packaging in case future repairs require shipping. ● Recycle the packaging if storage is not needed. By following these guidelines, customers can help reduce environmental impact while extending the life and efficiency of their Spinfire machine. -
Page 31: Manufacturer Details
Manufacturer Details The Spinfire series of ball machines are manufactured in China for and on behalf of: Fry Developments Pty Ltd 122 Dougharty Rd, Heidelberg West, VIC 3081 Australia +61 3 8578 4743 info@spinfiresport.com Spinfire Pro 2 Ball Machine |... - Page 32 Manual Revision 6.3.8...
