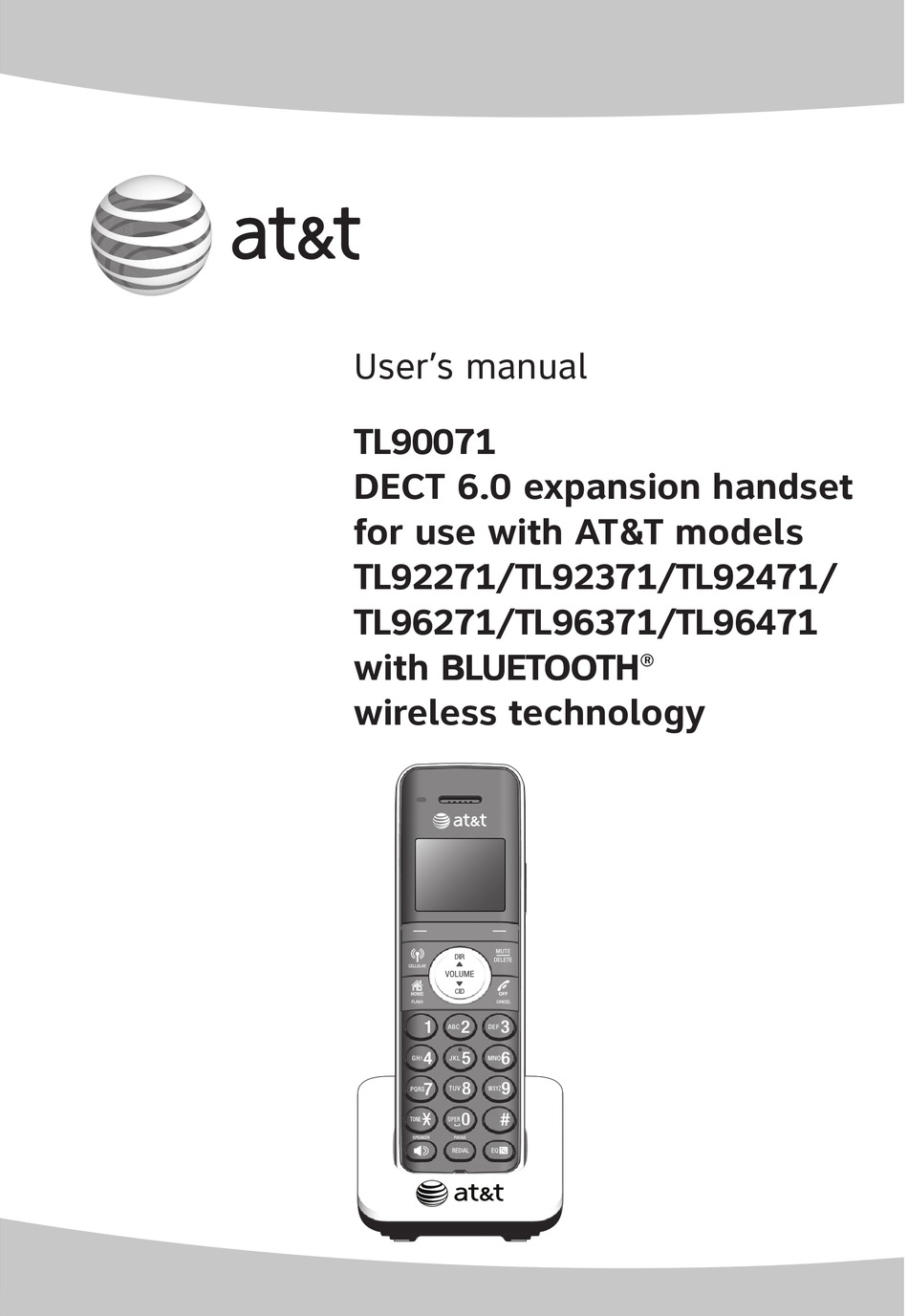

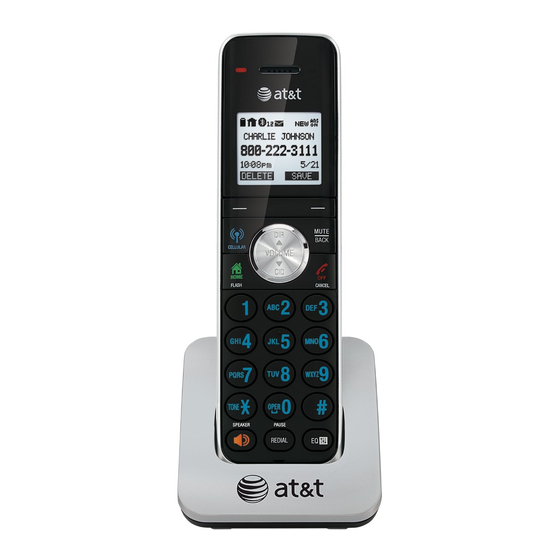

- Page 1 User’s manual TL90071 DECT 6.0 expansion handset for use with AT&T models TL92271/TL92371/TL92471/ TL96271/TL96371/TL96471 with �L�ET��T� �L�ET��T�® wireless technology...
- Page 2 The Bluetooth® word mark and logos are owned by Bluetooth SIG, Inc. and any use of such marks by Advanced American Telephones and its parent, VTech Holdings Limited, is under license. VTech Holdings Limited is a member of Bluetooth SIG, Inc. Other trademarks and trade names are those of their respective owners.
- Page 3 Parts checklist Your telephone package contains the following items. Save your sales receipt and original packaging in the event warranty service is necessary. User’s manual TL90071 DECT 6.0 expansion handset for use with AT&T models TL92271/TL92371/TL92471/ TL96271/TL96371/TL96471 with �L�ET��T� �L�ET��T�®...
-
Page 4: Table Of Contents
User’s manual TL90071 DECT 6.0 expansion handset for use with AT&T models TL92271/TL92371/TL92471/ TL96271/TL96371/TL96471 with �L�ET��T� �L�ET��T�® wireless technology Table of contents Getting started Installation ........................ 1 Quick reference guide - handset ..............2 Charger installation ....................5 Battery installation and charging ..............6 Registration and deregistration Adding and registering handsets .............. -
Page 5: Getting Started
Getting started Installation You must install and charge See pages 6-7 for easy the handset battery before instructions. using the cordless handset. Your product may be shipped with a protective sticker covering the handset or telephone base display - remove it before use. For customer service or product information, visit our website at www.telephones.att.com 1 (800) 222-3111... -
Page 6: Quick Reference Guide - Handset
Getting started Quick reference guide - handset C�ARGE light On when the handset is charging in the telephone base or charger. Softkeys (2) Press to select a menu item displayed above the key. While in a menu, press to select an item or save an entry or setting. - Page 7 Getting started Quick reference guide - handset DIR /V�L�ME Press to scroll up while in menus. During a call or message playback, press to increase the listening volume. Press to show directory entries when the telephone is not in use. While entering names or numbers in the directory, press to move the cursor to the left.
- Page 8 Getting started Quick reference guide - handset P�S� T� TALK Press to begin a one-to-one or one-to-group broadcast. Press and hold to begin a one-to-group broadcast when the handset is not in use. Main menu The selected menu item is highlighted. Feature menu Play messages Answering sys...
-
Page 9: Charger Installation
Getting started Charger installation Plug the power adapter into an electrical outlet not controlled by a wall switch. IMP�RTANT INF�RMATI�N: • Use only the power adapter(s) provided with this product. To obtain a www.telephones.att.com replacement, visit our website at 1 (800) 222-3111 1 (866) 288-4268 call . -
Page 10: Battery Installation And Charging
Getting started Battery installation and charging Install the battery as shown on page 7. Once you have installed the battery, the screen indicates the battery status (see the table below). If necessary, place the handset in the telephone base or charger to charge the battery. - Page 11 Getting started Battery installation and charging Install the battery as shown below. Step 1 Step 2 Plug the battery connector Align the cover securely into the socket flat against inside the handset battery the battery compartment, matching compartment, then the color-coded label. slide it upwards Insert the supplied battery until it clicks into...
-
Page 12: Registration And Deregistration
Registration and deregistration Adding and registering handsets Before using a new TL90071 handset, you must register it with an AT&T TL92271/TL92371/TL92471/TL96271/TL96371/TL96471 telephone system (purchased separately). These telephone systems can support up to 12 handsets. The handsets provided with your telephone system are already registered as �ANDSET 1 and so forth. - Page 13 Registration and deregistration Adding and registering handsets Register a handset to your telephone base (for AT&T models TL96271/TL96371/TL96471) 1. Make sure the handset is out of the telephone base or charger and shows Put handset on �ASE to register before you begin registration. Put Handset on BASE 2.
-
Page 14: Deregistering Handsets
Registration and deregistration Deregistering handsets You may need to deregister your handsets if: • You have 12 registered handsets and need to replace a handset. -�R- • You wish to change the designated handset number of your registered handsets. You must first deregister ALL handsets, and then register each handset you wish to use again, one at a time. - Page 15 Registration and deregistration Deregistering handsets Deregistering all handsets from the telephone base (for AT&T models TL96271/TL96371/TL96471) Make sure that all handsets are out of the telephone base and chargers before you begin deregistration. Press and hold /�ANDSET L�CAT�R on the telephone base for about 10 seconds until the Deregister al l devices?
-
Page 16: Appendix
Appendix Troubleshooting If you have difficulty with your telephone, please try the suggestions below. For Customer Service, or to purchase accessories or replacement parts, visit our website at www.telephones.att.com 1 (800) 222-3111 , or call . In 1 (866) 288-4268 Canada, dial The handset registration is unsuccessful. - Page 17 Appendix Troubleshooting • If the previous suggestions do not work, disconnect the telephone base from the telephone jack and connect the jack to a different phone. If there is no dial tone on that phone either, the problem is in your wiring or telephone service. Contact your telephone service provider.
- Page 18 Appendix Troubleshooting �ut of range �R No power at base appears on my cordless handset. • Ensure you plug the telephone base in properly and the power is on. • Place the cordless handset in the telephone base for one minute to allow the cordless handset and base to synchronize.
- Page 19 Appendix Troubleshooting I get noise, static, or weak signals even when I’m near the telephone base. • If you subscribe to high-speed Internet service (DSL - digital subscriber line) through your telephone line, you must install a DSL filter between the telephone line cord and the telephone wall jack.
- Page 20 Appendix Troubleshooting I experience poor sound quality when using the speakerphone. • For increased sound quality while using the speakerphone, place the handset on a flat surface with the dialing keys facing up. • When using a speakerphone, controlling background noise in your environment is essential.
- Page 21 Appendix Troubleshooting • The layout of your home or office may be limiting the operating range. Try moving the telephone base to another location, preferably on an upper floor. • If other phones in your home are having the same problem, contact your telephone service provider (charges may apply).
- Page 22 Appendix Troubleshooting • Disconnect the telephone base from the telephone wall jack and plug in a working telephone. If the other phones in your home are having the same problem, the problem is in your wiring or telephone service. Contact your telephone service provider (charges may apply).
- Page 23 Appendix Troubleshooting System does not receive caller ID when on a call. • Make sure you subscribe to caller ID with call waiting features from your telephone service provider. Caller ID features work only if both you and the caller are in areas offering caller ID service, and if both telephone service providers use compatible equipment.
- Page 24 Appendix Troubleshooting Common cure for electronic equipment. If the telephone does not seem to be responding normally, try putting the cordless handset in the charger. If it does not fix the problem, do the following (in the order listed): 1. Disconnect the power to the telephone base. 2.
-
Page 25: Maintenance
Appendix Maintenance Taking care of your telephone • Your cordless telephone contains sophisticated electronic parts, so it must be treated with care. • Avoid rough treatment. • Place the handset down gently. • Save the original packing materials to protect your telephone if you ever need to ship it. -
Page 26: Important Safety Information
Appendix Important safety information This symbol is to alert you to important operating or servicing instructions that may appear in this user’s manual. Always follow basic safety precautions when using this product to reduce the risk of injury, fire, or electric shock. Safety information •... -
Page 27: Especially About Cordless Telephones
Appendix Important safety information Especially about cordless telephones • Privacy: The same features that make a cordless telephone convenient create some limitations. Telephone calls are transmitted between the telephone base and the handset by radio waves, so there is a possibility that your cordless telephone conversations could be intercepted by radio receiving equipment within range of the cordless handset. -
Page 28: Precautions For Users Of Implanted Cardiac Pacemakers
Appendix Important safety information Precautions for users of implanted cardiac pacemakers Cardiac pacemakers (applies only to digital cordless telephones): Wireless Technology Research, LLC (WTR), an independent research entity, led a multidisciplinary evaluation of the interference between portable wireless telephones and implanted cardiac pacemakers. Supported by the U.S. Food and Drug Administration, WTR recommends to physicians that: Pacemaker patients •... -
Page 29: Fcc Part 68 And Acta
Appendix FCC Part 68 and ACTA This equipment complies with Part 68 of the FCC rules and with technical requirements adopted by the Administrative Council for Terminal Attachments (ACTA). The label on the back or bottom of this equipment contains, among other things, a product identifier in the format US:AAAEQ##TXXXX. - Page 30 Appendix FCC Part 68 and ACTA Industry Canada Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference, including interference that may cause undesired operation. The term ‘’IC:‘’ before the certification/registration number only signifies that the Industry Canada technical specifications were met.
-
Page 31: Fcc Part 15
Appendix FCC Part 15 This equipment has been tested and found to comply with the requirements for a Class B digital device under Part 15 of the Federal Communications Commission (FCC) rules. These requirements are intended to provide reasonable protection against harmful interference in a residential installation. -
Page 32: Limited Warranty
Appendix Limited warranty The AT&T brand is used under license - any repair, replacement or warranty service, and all questions about this product should be directed to our website at www.telephones.att.com 1 (800) 222-3111 or call . In 1 (866) 288-4268 Canada, dial What does this limited warranty cover? The manufacturer of this AT&T-branded product warrants to the holder of... - Page 33 Appendix Limited warranty What is not covered by this limited warranty? This limited warranty does not cover: • PRODUCT that has been subjected to misuse, accident, shipping or other physical damage, improper installation, abnormal operation or handling, neglect, inundation, fire, water, or other liquid intrusion; or •...
- Page 34 Appendix Limited warranty What must you return with the PR�D�CT to get warranty service? You must: Return the entire original package and contents including the PRODUCT to the service location along with a description of the malfunction or difficulty; and Include “valid proof of purchase”...
-
Page 35: Technical Specifications
