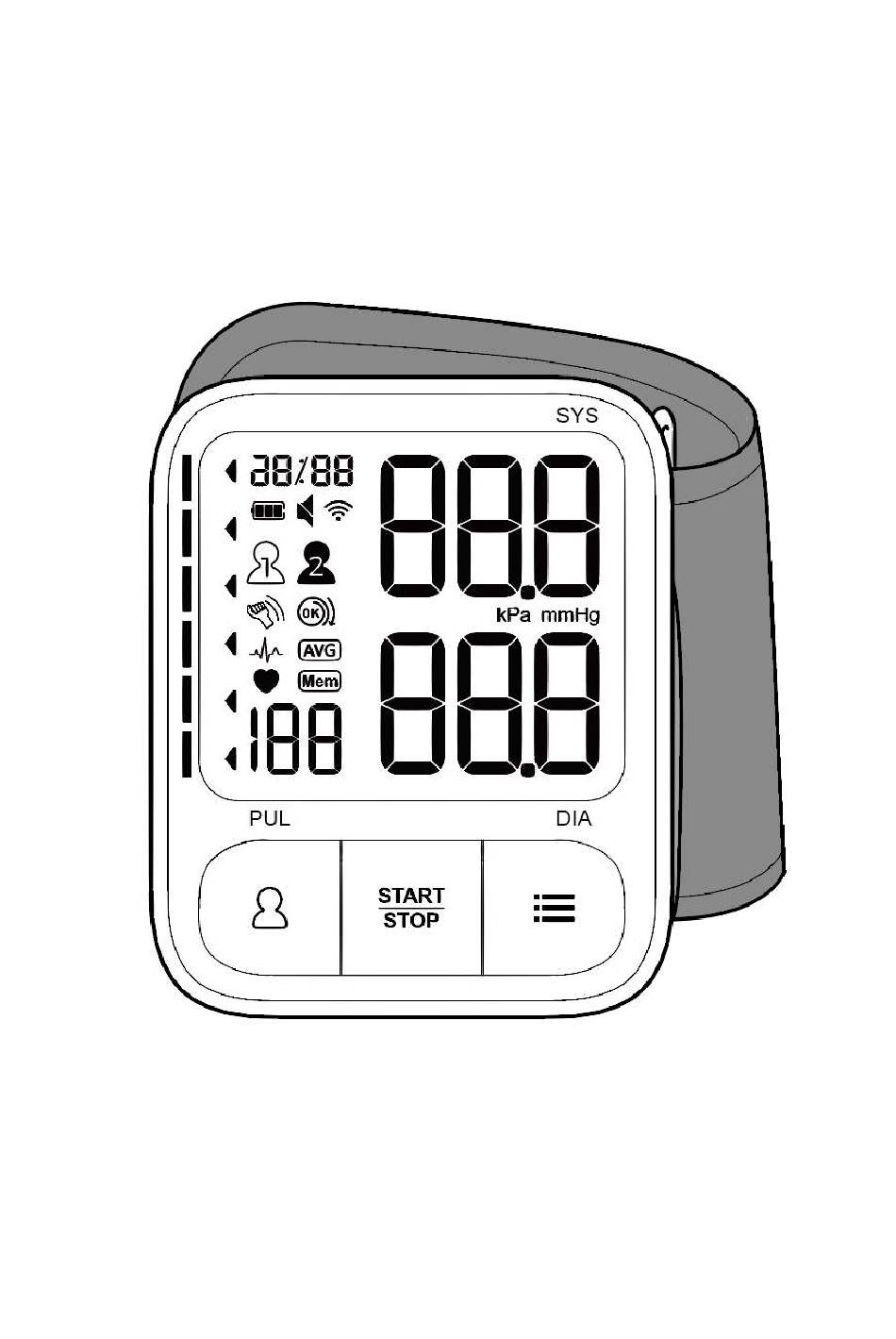

Wrist Electronic Blood Pressure Monitor
Model No.: FC-BP200
Manual Ver.: 1.0
Software Ver.: FC-BP200-V1.0
Issuing Date: 2022/05/09
●Please read this instruction manual carefully before using your unit.
●Please keep this instruction manual well for future use.
●Thanks for choosing the Digital Blood Pressure Monitor.
●The PATIENT is an intended OPERATOR.
1
Advertisement
Table of Contents
Related Manuals for Finicare FC-BP200
Summary of Contents for Finicare FC-BP200
- Page 1 Wrist Electronic Blood Pressure Monitor Model No.: FC-BP200 Manual Ver.: 1.0 Software Ver.: FC-BP200-V1.0 Issuing Date: 2022/05/09 ●Please read this instruction manual carefully before using your unit. ●Please keep this instruction manual well for future use. ●Thanks for choosing the Digital Blood Pressure Monitor.
-
Page 2: Revision Record
Revision Record Document No. Description Software REV Date FRN-FC-BP200-001 First established FC-BP200-V1.0 2022/05/09... -
Page 3: Table Of Contents
Contents Contents................3 1. Before Using the Unit............4 1.1 Introduction..............4 1.2 Important safety notices..........5 1.3 Warning and safety notices..........6 2. Operating Instruction............6 2.1 Know your unit..............6 2.2 Battery Installation / Replacement.........8 2.3 Settings................8 2.4 Proper Use of the wrist Cuff...........9 2.5 Take a Measurement............12 2.6 Use the Memory function..........13 2.7 About Blood Pressure..........15 2.8 About Blood Pressure..........16... -
Page 4: Before Using The Unit
1. Before Using the Unit 1.1 Introduction ■Thank you for purchasing Wrist Electronic Blood Pressure Monitor. ■The unit uses the oscillometric method of blood pressure measurement. It means the unit detects the movement of your blood through your brachial artery, and converts your blood pressure into a digital reading. -
Page 5: Important Safety Notices
Date of manufacture Model number Medical device Country of manufacture 1.2 Important safety notices To assure the correct use of the product basic safety measures should always be followed including the precautions listed as below: Please read all information in the instruction manual and any other literature included in the box before using the unit. -
Page 6: Warning And Safety Notices
1.3 Warning and safety notices Regarding the application of the CUFF and its pressurization on any limb where vascular access or therapy, or an arteriole-venous (A-V) shunt, is present because of temporary interference to blood flow and could result in injury to the PATIENT; ... - Page 7 Display Cuff Power...
-
Page 8: Battery Installation / Replacement
2 AAA Alkaline Batteries Do not use rechargeable batteries. Instruction Manual 2 AAA Alkaline Batteries ● Please keep the instruction manual well after using. 2.2 Battery Installation / Replacement 2.2.1Remove the battery covers from the battery compartment. 2.2.2 Install 2 “AAA” size batteries to match the + (positive) and - (negative) polarities with the polarities of the battery compartment as indicated. - Page 9 2.3.2 To set date and time Based on first step and press “ SET ” button again. The mark of month and date appears and flashes, press the “ MEM ” button to change the month and press the “ SET ” button to cotinue with next step.
- Page 10 Hour Setting Minute Setting 2.3.3 To set unit Based on the second step and press the “SET” button to change the previous unit(kPa or mmHg), the mark “ ” appears and flashes, now the BPM is in mmHg status, and then press the “MEM” button, to change it into “...
- Page 11 ", Blood Pressure Monitor sound is off. Press “START/STOP” button to save the current setting and turn off. 2.3.5 To set user Press the "SET" button when power off, and then press the "SET" button again to switch User 1 or user 2. The operation of setting can be stopped at any time by pressing “START/STOP”...
- Page 12 2.※Leave space between the wrist and palm 1cm 2cm (about one index finger) The distance between the left and right width) to avoid covering Cover the ulnar bone (as shown). 3. Hold the end of the cuff Lateral pull 4.Before the measurement, please rest for at least 15 minutes in a relaxed and quiet state. When measuring, place your elbows on the table, keep the height of the host and your heart consistent, palms up, and your body relaxed.
-
Page 13: Take A Measurement
1. The device has the WHO warning strip “■” symbol display function, with the blood pressure value change, the higher blood pressure value “ ■” symbol will appear relatively in the higher position (refer to WHO definition of high blood pressure levels-reference table). 2. -
Page 14: Use The Memory Function
2.5.2 Measurement start. When pressurized to stop blood flow, the Blood Pressure Monitor stops pressure before automatically leaking air and automatically measuring blood pressure. The heartbeat symbol flashes once a pulse is detected. When the heart beat symbol appears and flashes, the Blood Pressure Monitor detects the pulse and begins to calculate the pulse automatically. - Page 15 measurement each time. 2x120 sets of measurement values can be stored automatically. The earliest record will be deleted automatically to save the latest measurement value when more than 2x120 sets. The unit also calculates an average reading based on the values of the latest 3 times measurement .
-
Page 16: About Blood Pressure
2.7 About Blood Pressure 2.7.1 Irregular Heartbeat Symbol IRB When the unit detects an irregular rhythm two or more times during the measurement, the irregular heartbeat Symbol will appear on the display with the measurement values. An irregular heartbeat rhythm is defined as a rhythm that is more than 25% slower or 25% faster from the average rhythm which detected while the monitor is measuring the systolic blood pressure and the diastolic blood pressure. - Page 17 2.7.3 Health and Blood Pressure The incidence of hypertension increases with age. In addition, if lack of exercise, excess body fat and high levels of cholesterol(LDL), would sticks to the inside of blood vessels, which reduces elastictity of these vessels. Hypertension accelerated arteriosclerosis which can lead to serious conditions such as stroke and myocardial infarction.
-
Page 18: Care And Maintenance
When a person’s systolic and diastolic pressures fall into different categories, the higher category should apply. 2.8.2 Symptoms of High Blood Pressure High blood pressure can go unnoticed for a long time, since it doesn’t cause noticeable symptoms. The following are possible causes of abnormally high blood pressure: ●Overweight;... -
Page 19: Calibration And Service
3.1.6 Remove the batteries if the unit will not be used for three months or longer. Always replace all the batteries with new ones at the same time. 3.1.7 Use the unit consistent with the instruction provided in this manual.Use only authorized parts and accessories. -
Page 20: Troubleshooting
Review the sections "Proper Way of Measurement" and "Take a Measurement" 3.5 Technical Data 3.5.1 Speci-cations Model FC-BP200 Measurement Method Oscillographic measurement method Display LCD Digital Display Wireless transmission Bluetooth LE4.2 module Measurement Range Blood Pressure range: 0~299mmHg (0 kPa - 39.9 kPa) - Page 21 Automatic Power-OFF Within 2 Minutes Weight of Main Unit About 95.4 g（Not including batteries） External Dimensions 80.4×65.5×24mm Cuff 13.5-21.5cm Electric Shock Internal power supply appliance type B Protection Accessorial Cuff, Instruction Manual Components Device Life 5 Years To improve performance, these specifications are subject to change without notice. The device, accessories and the packaging have to disposed waste correctly after the end of the usage, so that the risk of patient or user can be lowered to acceptable level.
- Page 22 30 cm (12 inches) to any part of the Wrist Electronic Blood Pressure Monitor (M/N: FC-BP200), including cables specified by the manufacturer. Otherwise, degradation of the performance of this equipment could result.
- Page 23 interruptions and voltage 135 º, 180 º, 225 º, 270 º and 135 º, 180 º, 225 º, 270 º and variations on power supply 315 º 0% 1 cycle And 70% 315 º 0% 1 cycle And 70% input lines IEC 61000-4-11 25/30 cycles Single phase: at 0 25/30 cycles Single 0% 300 cycle...
- Page 24 Band 5 1720 Pulse 0 – 1800; modulati 1845 CDMA 1970 1900; 217 Hz 1900; DECT; Band 1, 3,4, UMTS 2450 Bluetoo Pulse 0 – modulati WLAN, 802.11 217 Hz b/g/n, RFID 2450, Band 7 5240 WLAN Pulse 5500 0 – 802.11 modulati 5785...
-
Page 25: Warranty Information
Bluetooth connection and transmission function: a) Turn on the blood pressure monitor, turn on the Bluetooth, connect to the Bluetooth;b) Search for " FC-BP200 " on your bluetooth receiver; c) Connecting the "FC-BP200" until it is connected; d) Start data transmission,the data your measured will be transmitted to your bluetooth receiver after measurement is completed. - Page 26 an inflatable cuff is wrapped around the wrist arm. The devices’ features include irregular pulse rhythm detection during measurement, and will display a alert signal with the reading when irregular heartbeat is detected. Considerations for measuring 1.The correct using method （1）Elbow on the table；comfortably seated；...
- Page 27 ABMED SERVICE INC 1312 17th Street Suite 692 Denver, CO US 80202 Tel: 303 8000162 E-mail: info@abmed.com.cn Manufacturer: Shenzhen Finicare Co., Ltd 201, No.50, the 3rd Industrial Park, Houting Community, Shajing Street, Bao'an District, Shenzhen 518104 China FCC ID:2A3QXFCBP200 Website: https://www.finicare.com/...
