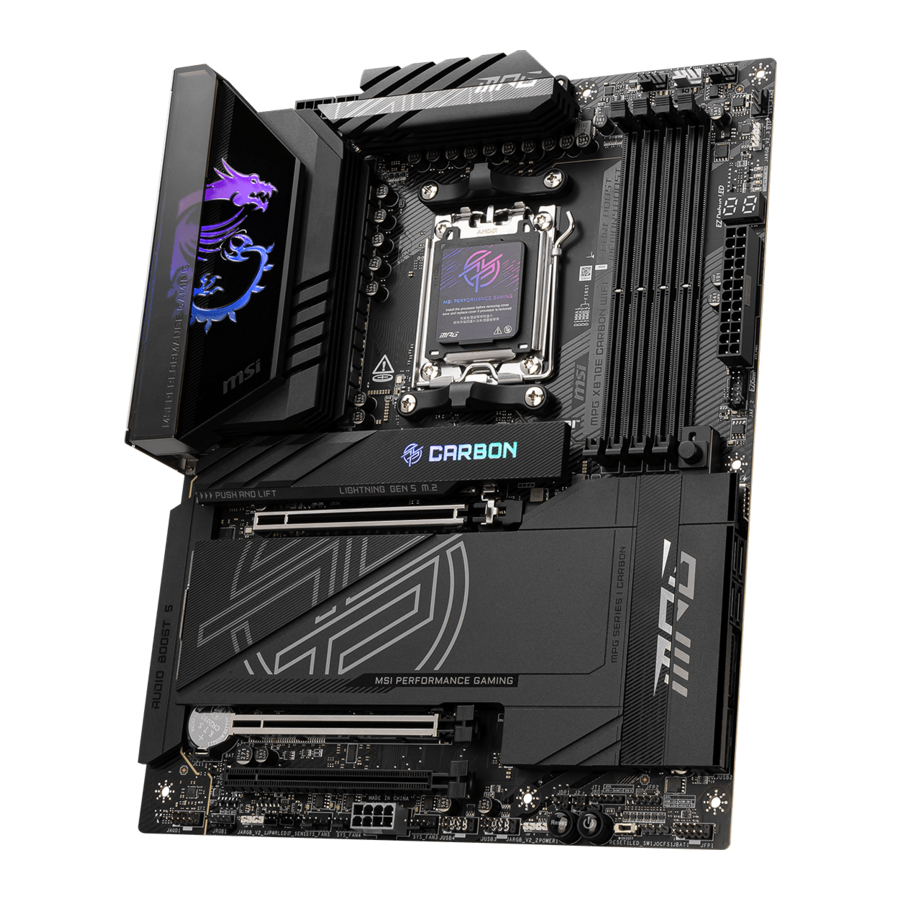

MSI X870E Manual

Updating X870E DYNAMIC DASHBOARD firmware with Firmware Tool

Follow the steps below to update the DYNAMIC DASHBOARD firmware with Firmware Tool.

If your device is working properly, please do not update the firmware.

1. Discharge before turning on.
   1. Flip the power switch to the O position.
   2. Unplug the power cord from the power supply unit.

   3. Press and hold the CLEAR CMOS button for 3 seconds and wait for 3 minutes, or use a jumper cap to short the JBAT1 pins for 3 minutes and then remove the jumper cap.

   4. Plug in the power cord and flip the power switch to the I position.
2. Boot into the Windows 10 / Windows 11 operating system.
3. Download DYNAMIC DASHBOARD III Firmware Tool from MSI website at http://msi.com
4. Close all 3rd party software that will read smbus. (EX: CPUID HWMonitor / AIDA64/ HWiNFO)
5. Exit MSI Center from system tray
6. Unzip file X870E_DYNAMIC_DASHBOARD_Tool.zip
7. Double-click on X870E_DYNAMIC_DASHBOARD.exe under A25xxxxxx_A25xxxxxx folder.
8. Click on Update FW button to update DYNAMIC DASHBOARD firmware.

9. Click on Update Data button to update DYNAMIC DASHBOARD Data.

10. .The update progress bar will indicate the progress of the update. It will take several minutes to update the controller. Do not disturb or shut off the power during this update . When the update is complete, the update tool will prompt you to restart your computer, click Yes button to restart.
11. Power on the system.
