Summary of Contents for Fezz Audio KT88

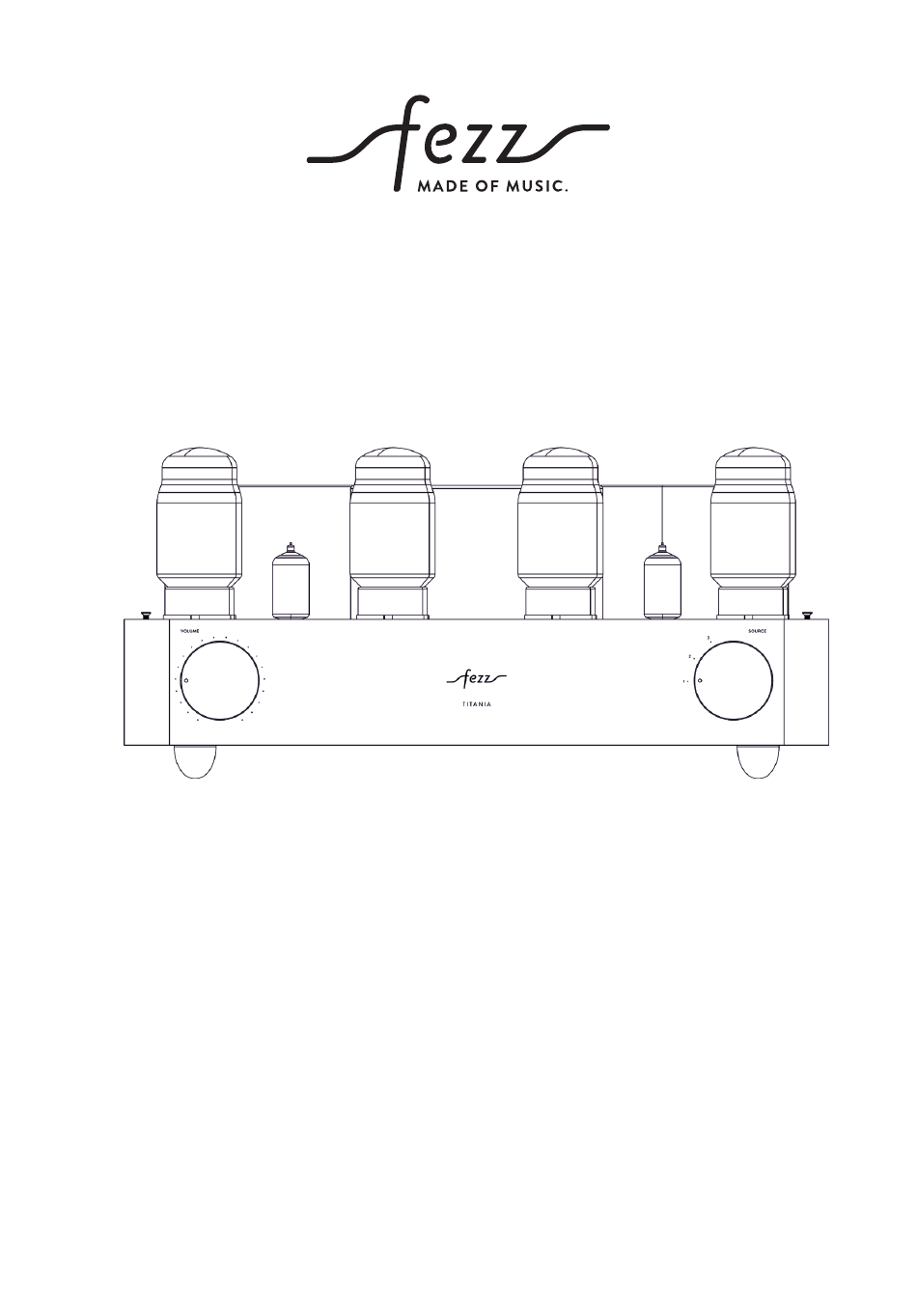

- Page 1 USER`S MANUAL TITANIA WWW.FEZZAUDIO.COM...
-
Page 2: Table Of Contents
Inputs: 3xRCA + opcjonalnie 1xRCA (pre-in) Harmonic distortions THD: <0,2% Frequency response 18Hz-103kHz (-3dB) Power consumption: 225W Main AC fuse: 3,15AT, Vacuum tubes fuses: m100mA Net weight: 21 kg Dimensions (with tubes): 420x380x200mm Tubes : KT88 x4 (power output), ECC83 (pre-amp & drivers), automatic bias... -
Page 3: Safety Tips
- Never turn on the amplifeir without installed tubes and without hooked-up spekers. - Never place the Fezz Audio Titania amplifier near heat sources, such as radiators, heaters or direct sunlight. Ensure adequate ventilation and airflow - We also warn against exposure of the amplifier to conditions such as very low temperatures and/or high humidity. -
Page 4: Vacuum Tubes Installation
D E S C R I P T I O N O F T H E A M P L I F I E R KT88 power tubes socket for a left channel 12AX7 driver tube socket for a left channel... -
Page 5: Interconnections
Pay attention to the proper connection and distinction of the right (R) and the left (L) channels. For the best sound quality, we suggest using the Fezz FAC 01 interconnect cable dedicated for Fezz Audio vacuum tube amplifiers. To connect a turntable, you will need to use an external phono MM/MC preamplifier or turnatble with a built-in preamplifier. -
Page 6: Buring-In Process
FI RST POWER- U P AN D G ET TI N G Make sure that all of your wiring is connected in accordance with the information as provided above. Select the source of signal using the rotary selector switch located on the front panel. Set the volume control to minimum. Turn on the mains power of the amplifier –... -
Page 7: Sub Out (Pre-Out)
9 at page 4 of this user’s manual. If it happend again, please replace the tube and fuse for new one. If you have verified the aforementioned situations, and your problem still persists, please contact your local Fezz Audio dealer. - Page 8 WWW.FEZZAUDIO.COM...
