Summary of Contents for Fezz Audio Mira Ceti 300B

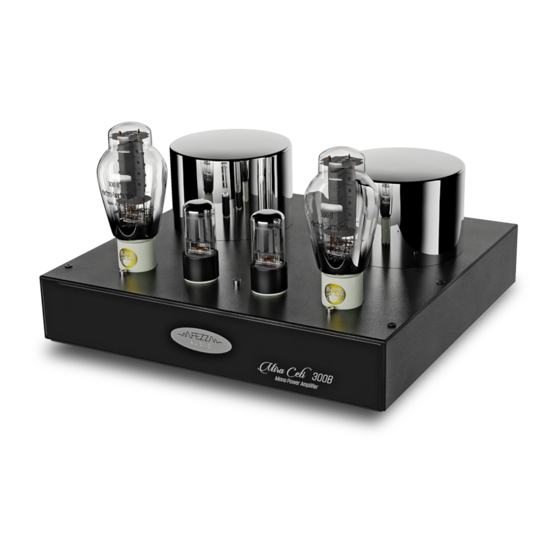

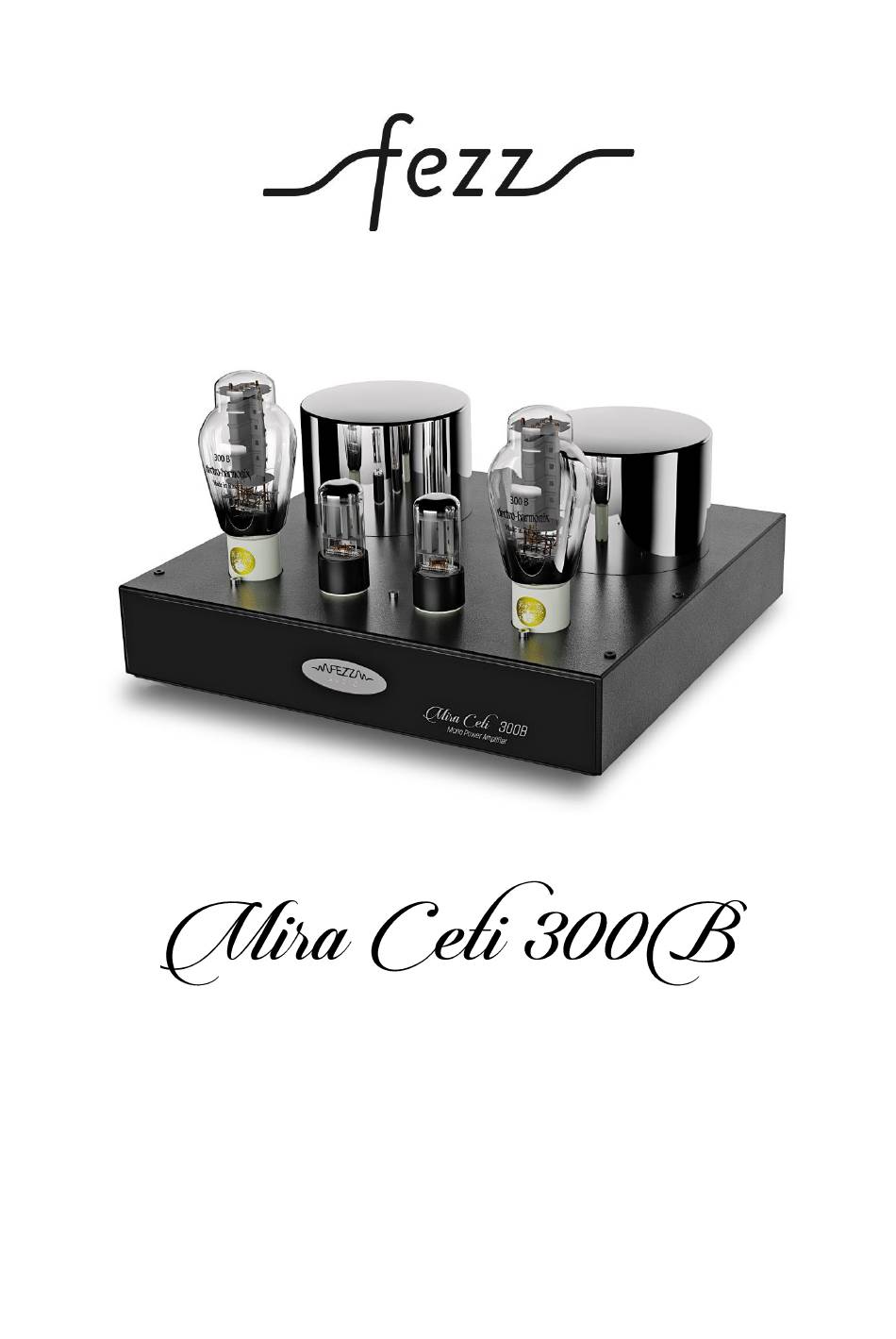

- Page 1 Mono Power Amplifer USER’S MANUAL...
-
Page 2: Safety Tips
SAFETY TIPS______________________________________________ • Never place the Fezz Audio Mira Ceti 300B mono power amplifier near heat sources, such as radiators, heaters or direct sunlight. Ensure adequate ventilation and airflow • We also warn against exposure of the power amplifier to conditions such as very low temperatures and/or high humidity. -
Page 3: Table Of Contents
TABLE OF CONTENTS_______________________________________ SAFETY TIPS INTRODUCTION Vacuum tube power amplifier INSTALLATION OF THE DEVICE Unpacking Contents of the package Description of elements of the amplifier Installation of the vacuum tubes Where to place Your amplifier INTERCONNECTIONS Hook-up of the speaker Hook-up of the signal source Hook-up of the supply cord FIRST POWER-UP AND GETTING STARTED... -
Page 4: Introduction
Thus, in praxis, they are exclusively destined for the audiophile circles. And it is at this very point where the unique offering of Fezz Audio comes into play. A unique vacuum tube sound, made available at a price point similar to a new, "transistor" based... -
Page 5: Installation Of The Device
INSTALLATION OF THE DEVICE_______________________________ UNPACKING Please kindly check if the packaging of the Mira Ceti 300B MONO power amplifier has not been damaged during transit. If you find any damages, please immediately contact your dealer. Remove the power amplifier and accessories from the packaging. Make sure that the content is not damaged. -
Page 6: Description Of Elements Of The Amplifier
5) housing for the output transformers INSTALLATION OF THE VACUUM TUBES Place the Mira Ceti 300B power amplifier on a stable surface. Carefully remove the vacuum tubes from their packaging and install them in the appropriate sockets, as show below, and adhering to the numbering scheme as identified on the packaging. -
Page 7: Where To Place Your Amplifier
4) socket for the main fuse 5) IEC power supply cord socket The figure above shows the rear panel view of the Fezz Audio Mira Ceti 300B MONO power amplifier, together with a description of the inputs and outputs allowing for connection of... -
Page 8: Hook-Up Of The Speaker
9 of this manual. Turn on the mains power of the Mira Ceti 300B mono power amplifier – the vacuum tubes shall begin to glow. Make sure that the sound source is turned on, playing, and then gradually increase the volume level in your preamplifier. -
Page 9: Replacement Of The Vacuum Tubes
Turn on the amplifier. If the disturbing sounds have moved to the other channel, inform Your local Fezz Audio dealer about tube which need to be replaced. One of the Power tubes (300B) has lost its Switch off the amplifier. -
Page 10: Technical Data
TECHNICAL DATA__________________________________________ Type: vacuum tube power amplifier Model: Mira Ceti 300b Mono Power Amplifier Output power: 15W Circuit architecture: Parallel Single Ended, A-class Speakers impedance: 4Ω/8Ω Inputs : 1x RCA Harmonic distortion THD: <0,1% Frequency response: 12Hz-60kHz (-3dB) Power consumption: 115W... -
Page 11: Declaration Of Ce Conformity
Declaration of Conformity Manufacturer: Toroidy.pl Transformatory L. Lachowski Sp.k. (owner of Fezz Audio brand) Address: ul. Mazowiecka 20 16-001 Księżyno POLAND I declare that the product: Brand: Fezz Audio Model: Mira Ceti 300B MONO Power amplifier complies with the following European Union Council Directives and Standards relating to electromagnetic compatibility (EMC Directive 2014/30/EU) and the low voltage Directive (2014/35/EU).
