Service Manual E62 RM-88
Page
CONFIDENTIAL
SERVICE MANUAL
Level 1&2
RM-88
1
(19)

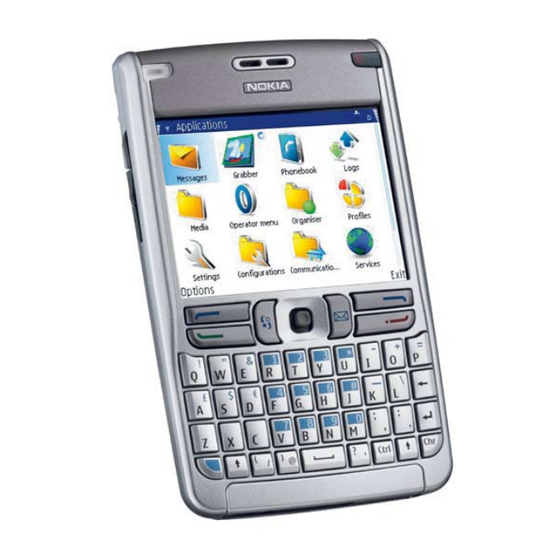

Transceiver characteristics:
Band: Quad-band phone for GSM 850/900/1800/1900MHz
Display: Active matrix QVGA display with up to 16M colors,
resolution 320 x 240 pixel
Bluetooth
IrDA
Connector: Mini USB connector
Memory card: miniSD
Black Berry compatible
Transceiver with BP-5L Li-Ion battery pack
Talk time
4 to 7h
Environmental characteristics:
•
Lead-free soldered
Copyright © 2006 NOKIA Corporation. All rights reserved.
Approved 1.0
11.Jul.2006
Standby
Note
Depends on network
9 to 11 days
parameters
MGR
