Summary of Contents for Golden Technologies 3101 Series

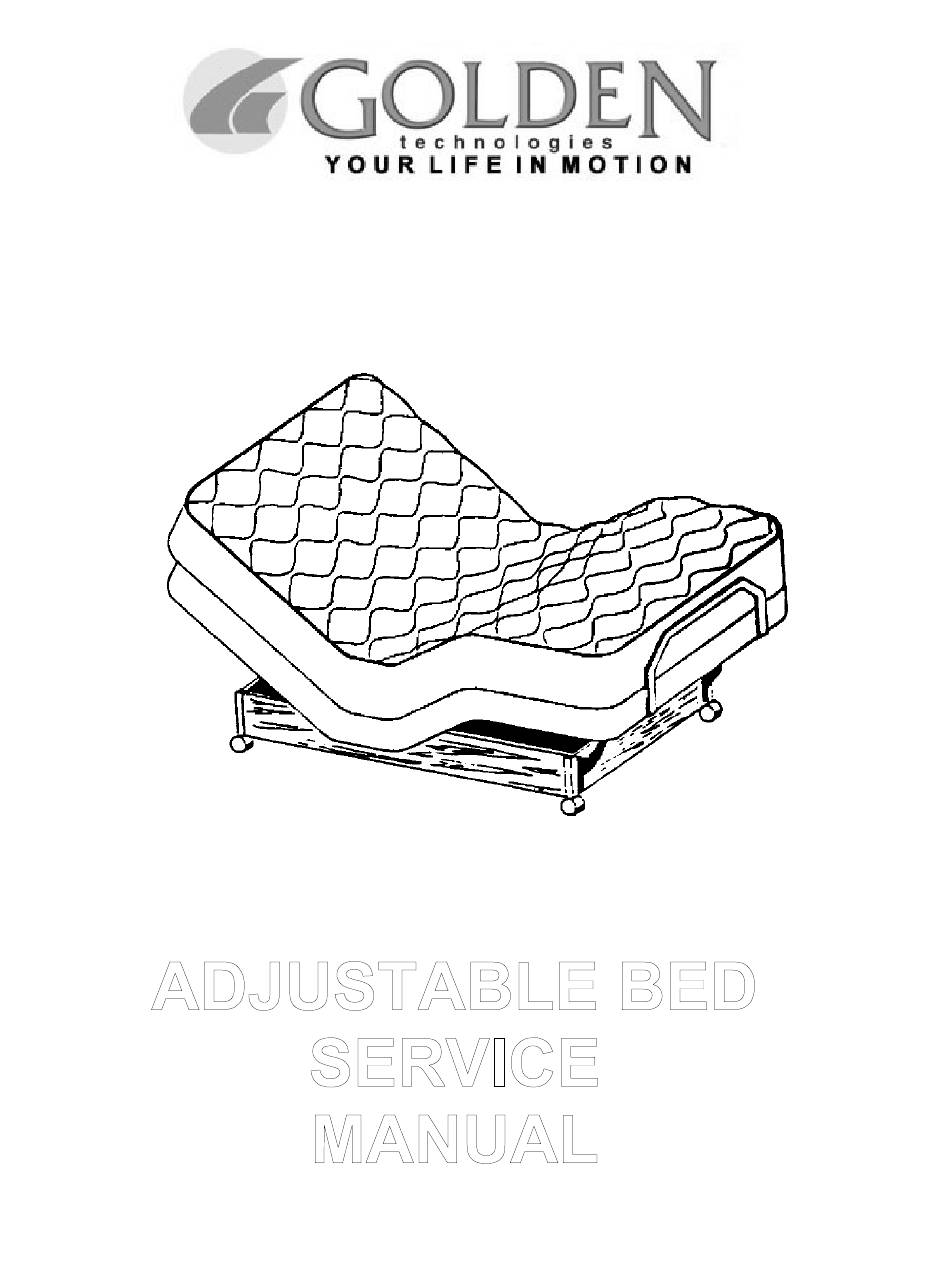

- Page 1 SERIES – 3101 - 4101...
-
Page 2: Table Of Contents
TABLE OF CONTENTS BED FRAME COMPONENTS ……………………… 1 BED DRIVE COMPONENTS ………………………. 2 MOTOR INSTALLATION …………………………… 3 FRAME TO PLATFORM INSTALLATION ………... 4 BED LOCK INSTALLATION ……………………….. 4 VIBRATOR INSTALLATION ……………………….. 5 BED RISER INSTALLATION ………………………. 6 HALF RAIL INSTALLATION ……………………….. 7... -
Page 3: Bed Frame Components
BED FRAME COMPONENTS (FIG. 1) ILLUSTRATION OF A FULL SIZE BED FRAME COMPONENTS DESCRIPTION BPBF101-MF ----------------- Main Frame -Twin BPBF201-MF ----------------- Main Frame - Full/Queen BPBF101-HU ----------------- Head “U” - Twin BPBF201-HU ----------------- Head “U” - Full/Queen BPBF101-UF ----------------- Foot “U” – Twin BPBF201-UF ----------------- Foot “U”... -
Page 4: Bed Drive Components
BED DRIVE COMPONENTS (FIG. 2) ILLUSTRATION OF A FULL SIZE BED FRAME COMPONENTS DESCRIPTION BPBF101-HMDU -------------- Head Drive “U” – Twin BPBF201-HMDU -------------- Head Drive “U” – Full/Queen BPBF101-FMDU -------------- Foot Drive “U” – Twin BPBF201-FMDU -------------- Foot Drive “U” – Full/Queen BPHML725 --------------------- Head Drive Link BPFML475 --------------------- Foot Drive Link... -
Page 5: Motor Installation
MOTOR INSTALLATION PART# DESCRIPTION PART# DESCRIPTION BPBMO-A ---------- 3101 MOTOR ------ BPHC-A ---------- HAND CONTROL BPBMO-IR --------- 4101 MOTOR ------ BPWHCV -------- HAND CONTROL INSTRUCTIONS: With bed in the flat position, unplug the motor from the electrical outlet. The following describes the installation of a motor;... -
Page 6: Frame To Platform Installation
FRAME TO PLATFORM INSTALLATION (FIG. 5) ILLUSTRATION OF A FULL SIZE BED FRAME BED LOCK INSTALLATION (King Only) Operate the foot sections, of the bed, to the raised position. Place the lock as shown in the illustration. NOTE: If there is a headboard attached to the beds, only one lock is required. If a second lock is needed: 1. -
Page 7: Optional Components
OPTIONAL COMPONENTS VIBRATOR INSTALLATION (Massage) 1. Unplug from electrical outlet before removing defective vibrator. Disconnect the vibrator from the bed motor. 2. Using a 7/16” socket, remove all 4 lock nuts. 3. If the vibrator mounts look worn, cracked or broken, they must be replaced. 4. -
Page 8: Bed Riser Installation
BED RISER INSTALLATION HARDWARE IN KIT: BPCARBOLT --------------- 2 ¼” CARRIAGE BOLTS 16 BPKEPSNUT 25 ----------- ¼” X 20 KEPSNUT MS1.5WL -------------------- 1 ½” WHIZ LOCK BOLTS BPCASTINS4 -------------- CASTER INSERTS BP-200 ----------------------- SET (4) BED RISERS WITH POSTS INSTRUCTIONS: 1. -
Page 9: Half Rail Installation
BED HALF RAIL INSTALLATION PARTS LIST FOR HR100 TOOLS NEEDED BP101 --------- 5/16” T-nut ½” Wrench or socket BBWASH ----- 5/16” Lock Washer BP102 --------- 5/16” Bolt H RAIL --------- Bed Rail ASSEMBLY INSTRUCTIONS 1. Raise the head section of the bed. 2.
