WARNINGS:
• TO AVOID FIRE, SHOCK OR DEATH: TURN OFF POWER AT CIRCUIT BREAKER OR
FUSE AND TEST THAT THE POWER IS OFF BEFORE WIRING!
• To be installed and/or used in accordance with electrical codes and regulations.
• If you are not sure about any part of these instructions, consult an electrician.
Product Description
The replacement cord is 25 feet in length.
For use only with Leviton 48AMP EV Series chargers.
Tools Required:
• Phillips Screwdriver
• Adjustable Wrench
Remove Cord
WARNING: TO AVOID FIRE, SHOCK OR DEATH, turn OFF power at circuit
breaker or fuse and test that the power is OFF before wiring.
1.

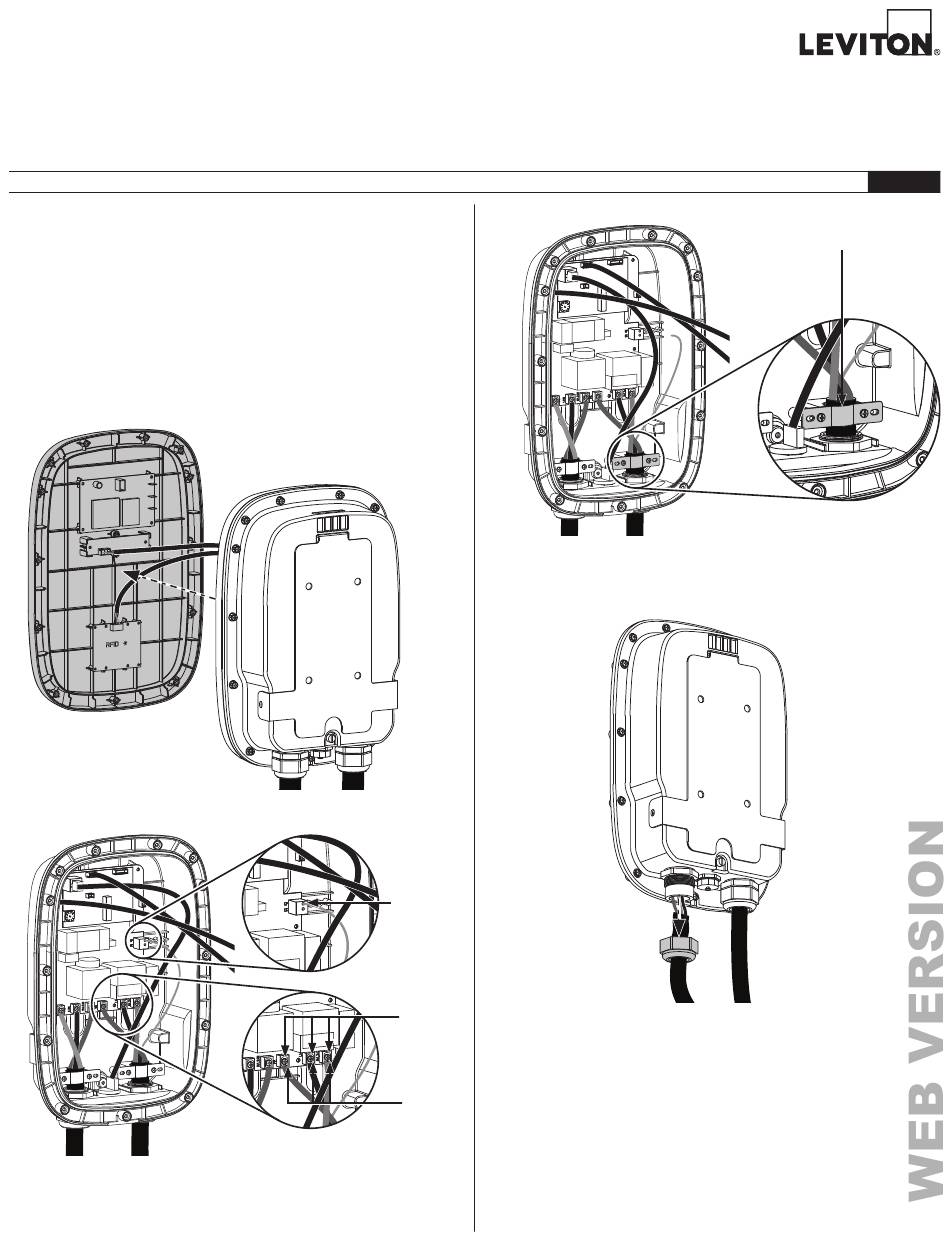

Loosen 13 screws on back cover and remove front cover.
2.
Remove three screws and cord terminal lugs from circuit
board. Unplug CP cable.
48 AMP, 25 Foot EV Charging Replacement Cord
Cat. No. EC25F
INSTALLATION INSTRUCTIONS
CP Cable
Terminal
Lugs
Screws
CAUTIONS:
• No user serviceable components. DO NOT attempt to service or repair.
• Use this device WITH COPPER OR COPPER-CLAD WIRE ONLY.
3.
Loosen two screws on clamping plate.
4.
Loosen gland cap and remove cord.
DI-000-EC25F-05A
ENGLISH
Clamping
Plate
