Leviton EVB32 User Manual

WARNINGS AND CAUTIONS:
• Carefully read these instructions and the charging instructions in your vehicle owner's manual before charging your electric vehicle.
FAILURE TO DO SO CAN RESULT IN PROPERTY DAMAGE, INJURY OR DEATH.
• The Charging Station should be installed by an electrician and used in accordance with electrical codes and regulations.
• DO NOT use an extension cord to provide power to the Charging Station.
• DO NOT operate the Charging Station with a visibly damaged AC Receptacle, AC Supply Cord/Plug or Charge Cord/Connector. Inspect equipment before
each use. If any damage is detected, replace the equipment or contact a Customer Service Representative.
NOTE FROM THE MANUFACTURER
This user guide includes the latest information at the time of printing.
Leviton reserves the right to make changes to this product without further
notice. Changes or modifications to this product by other than an authorized
service provider could void the product warranty. If you have questions about
the use of this product, contact your Customer Service Representative
(refer to the Customer Support section located in this user guide) or visit
www.leviton.com/evrgreen.
ELECTRIC VEHICLE COMPATIBILITY
The Level 2 Electric Vehicle Charging Station is listed by Underwriters
Laboratories (UL) under Electric Vehicle Supply Equipment (EVSE). The
compact physical design of your Charging Station takes up a minimum
amount of wall space, providing the greatest flexibility for mounting locations.
This device incorporates multiple levels of safety for the user, the vehicle
and the charging equipment. It conforms to all industry standards and
recommended practices.
FEATURES
• SAE J1772 Compliant - Ensures compatibility with all battery electric
TM
vehicles (BEV) or plug-in hybrid electric vehicles (PHEV) conforming to
this standard.
• Easy to read user interface.
• Self-Testing Sequence - Upon energizing the Charging Station, a
self-test will occur to ensure that the unit is working properly. This
sequence will also occur each time the Charge Connector is plugged into
the vehicle to ensure a proper connection, prior to initiating charging.
• Auto-Restart - Allows charging to resume after fault condition, up to 3
times at 15 minutes intervals. If fault condition clears, no user intervention
is required.
• Ground Monitoring Circuit - Constantly checking for presence of proper
safety ground.
Contactor Monitoring Circuit - Checks the integrity of the AC charging
•
path before and after charging.
• Cold Load Pickup - Time delayed and randomized (2-15 minutes)
re-energizing of Charging Station following power outage. This feature
protects electrical grid from overload from simultaneous re-energizing of
chargers. Charging will automatically resume after the randomized delay.
• Excessive Cord Strain Detection - On detection of excessive pressure
on Charge Connector Cord, the EVSE de-energizes the cord.
• NEMA Type 4 Enclosure - Water-tight, dust-tight and sleet resistant
enclosure protects against exposure to weather.
• cULus listed.

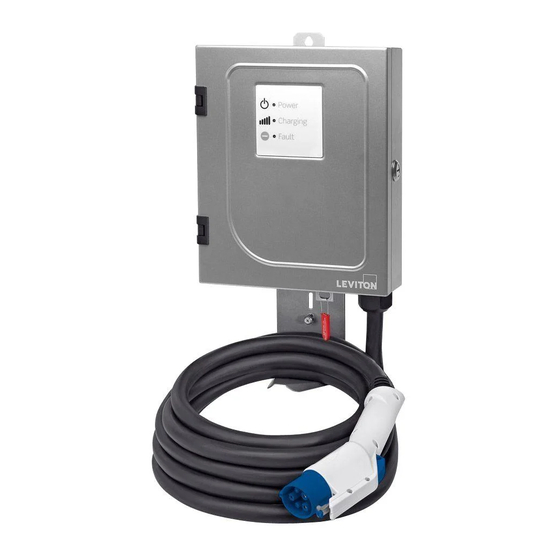

Level 2 Electric Vehicle Charging Station

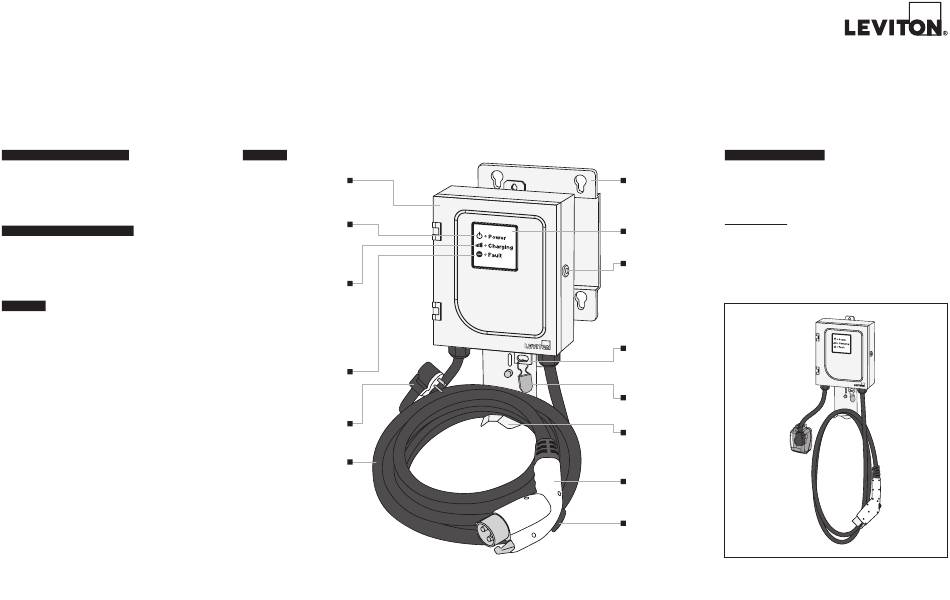

OVERVIEW
Enclosure
NEMA Type 4 powder-coated
steel, protects against exposure
to weather.
Power LED (Green)
The Power LED illuminates when
power is present. This notifies the
user that the Charging Station is
active and ready to charge the
electric vehicle.
Charging LED (Amber)
The Charging LED blinks
when the Charge Connector is
connected to the electric vehicle
and charging is in-progress.
NOTE: The Charging LED will
blink during Cold Load Pick-up.
Fault LED (Red)
The Fault LED will illuminate or
flash when a fault is present.
During a fault condition the
Charging LED turns off.
AC Supply Plug (sold separately)
UL recognized cord with a NEMA
6-50P configuration plug.
Charge Connector Cord
18 or 25 foot long UL
recognized Type EV cable
suitable for charging electric
vehicles.
Cat. No. EVB32
User Guide
WARNINGS AND CAUTIONS:
• DO NOT attempt to repair or service the Charging Station yourself. Opening the enclosure and removing the warranty void padlock will void the warranty.
Refer to the Customer Support section for service information.
• The Charging Station is used to charge electric vehicles equipped with an SAE J1772™ compliant charge port.
• Ensure that the Charge Connector Cord is positioned so it will not be stepped on, tripped over, or otherwise subjected to damage or stress. Always use the
Cord Management hook below the Charging Station to properly stow the Charge Connector Cord and Charge Connector when not in use.
• Retain this guide for future reference.
CHARGING YOUR VEHICLE
Using the Level 2 Electric Vehicle Charging Station to charge your vehicle is
as simple as plugging in any appliance.
Mounting Bracket -
(Sold Separately) Reference Installation Instructions to ensure the Charging Station has been
Supports Charging
properly installed and powered up. NOTE: If the Charging Station Power LED
Station for plug-in wall
is not illuminated, ensure the AC Supply Cord is plugged into the receptacle
mount installation.
or reset circuit breaker to start power up sequence.
Power Up Sequence
Display Panel • The Power, Charging and Fault LEDs will illuminate momentarily followed
Intuitive LED display. by just the Power LED. The Charging Station will then initiate a self-test
sequence.
NOTE: DO NOT plug the Charge Connector into the vehicle prior to
Lock the self-test; this may cause the Charging Station to go into Cold Load
Pick-up, and delay charging.
For hard-wire access
by an electrician during
• The Power LED will flash for approximately 3 seconds indicating
installation ONLY. Once
the self-test, and then the Power LED will remain lit, indicating that the
installed, the Charging
Charging Station is ready for use.
Station should always
remain locked. If any
servicing is required
after installation, contact
Customer Support.
Locking Tab
Allows for the charging
enclosure to be safely
locked with the use of a
hand-held lock.
Warranty Void Padlock
FOR ELECTRICIAN
USE ONLY.
Cord Management
Storage hook for
convenient stowing
of Charge Connector
Cord.
Charge Connector
J1772 TM compliant Charge
Connector delivers power
to vehicle for charging.
Charge Connector
Release Button
Used to disconnect from
vehicle charge port.
DG-040-EVB32-00A
J1772 is a trademark of SAE International
