DIGITAL-LOGIC smartModule SMXXPC-DK Technical User's Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

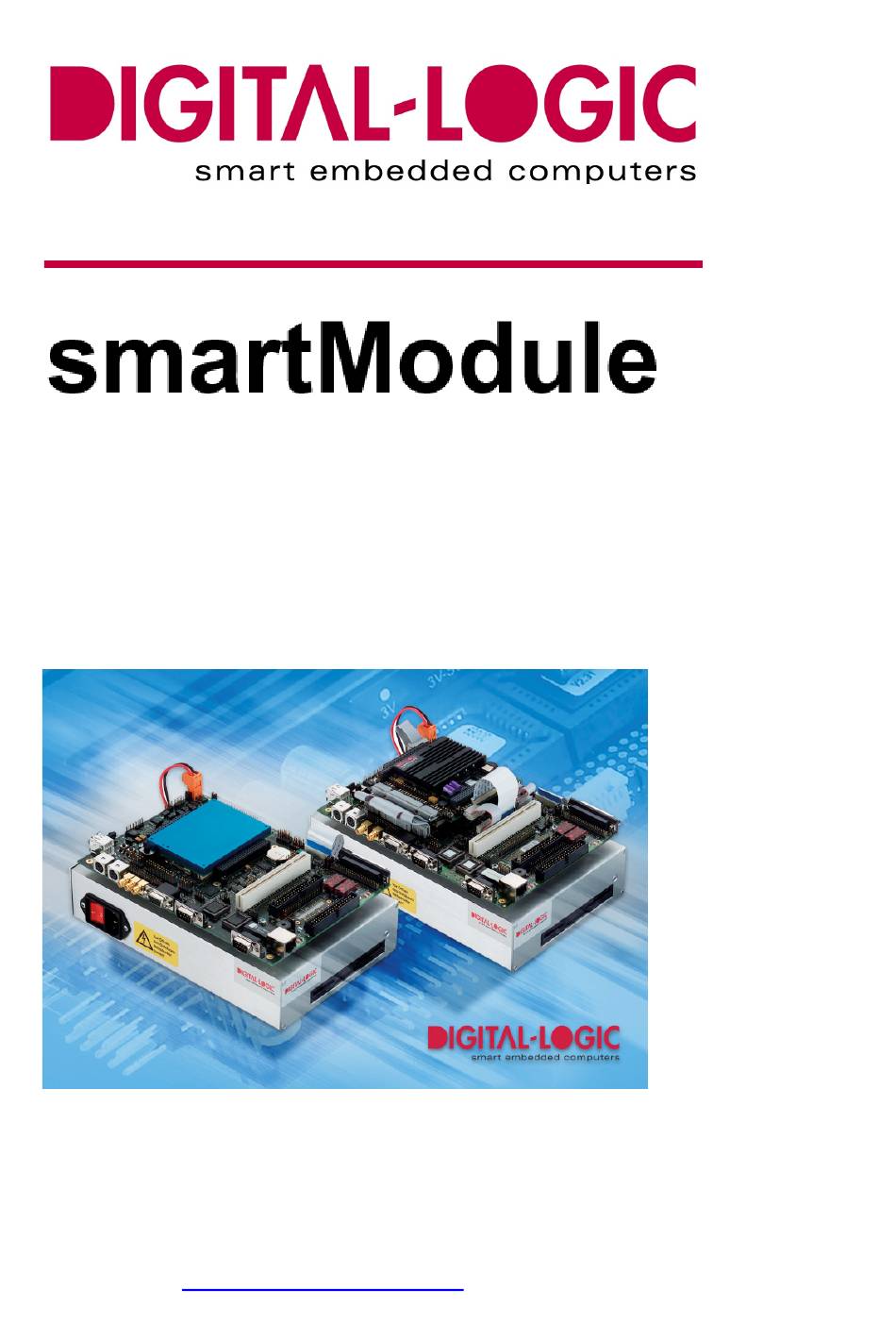

TECHNICAL USER'S MANUAL FOR:
SMXXPC-DK
(development kit)
