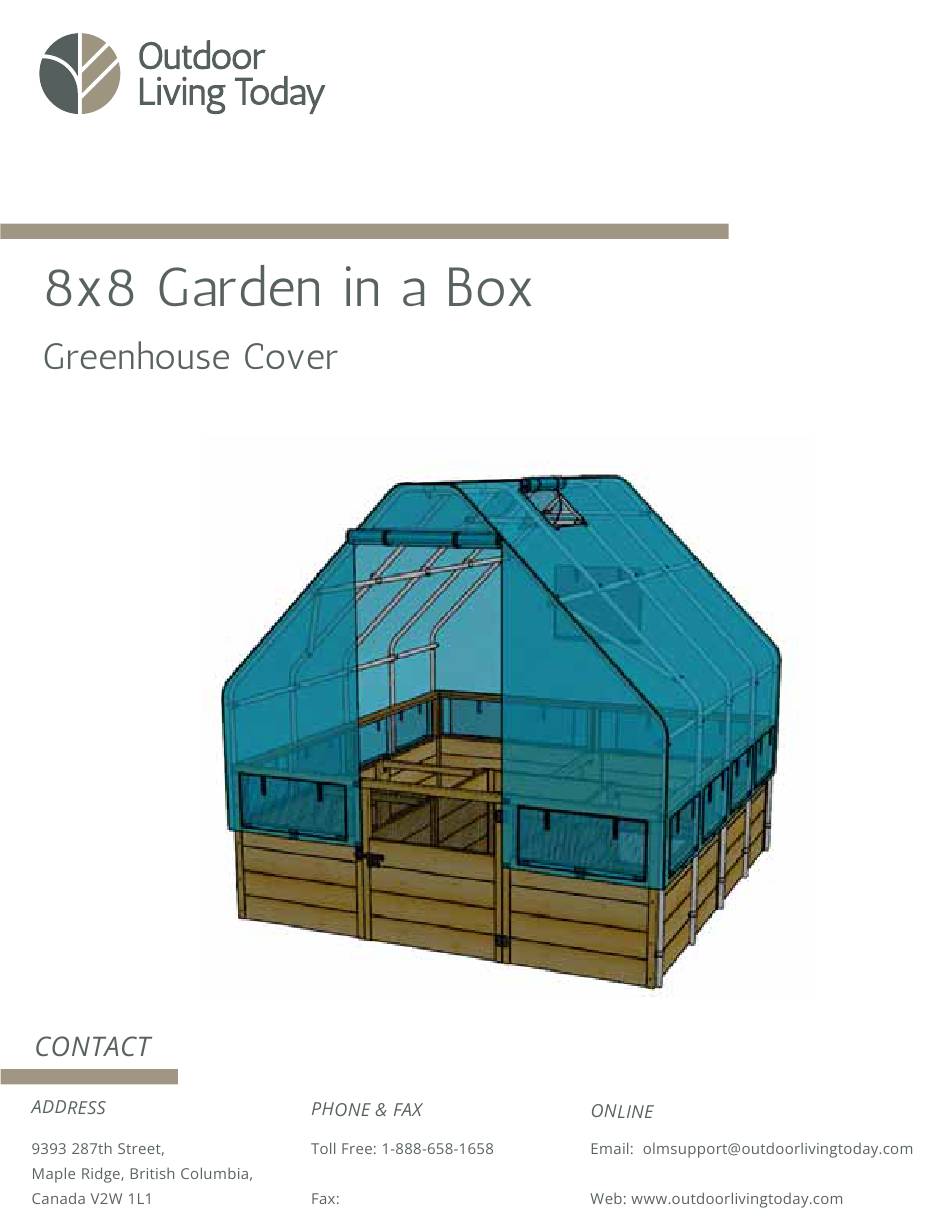

- Page 1 ASSEMBLY MANUAL Stock Code: RB88GHO Version #2.7 April 14, 2025...
-
Page 2: What You Need To Know
Have a regular maintenance plan to ensure screws, doors, parts are tightly affixed. All structures purchased from Outdoor Living Today are covered for a period of one year for defects in manufacturing and workmanship. Costs incurred for customer installations are not included. - Page 3 Thank you for purchasing our 8x8 Garden in a Box with Greenhouse Cover. Please take the time to identify all the parts prior to assembly. Part 1 x 10 Part 2 x 10 Part 3 Part 4 Part 5 Part 6 Part 7 Part 8 Part 9...
-
Page 4: Exploded View
Exploded View Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 3... - Page 5 Parts & Hardware Step 1 x Part 4 1 x Part 11 1 x Part 9 1 x M6x55 M6x55 Start with top rear connection. Tighten until snug. Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 4...
- Page 6 Parts & Hardware Step 2 x M6x35 1 x Part 5 M6x35 M6x35 Tighten until snug. Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 5...
- Page 7 Parts & Hardware Step 1 x Part 3 1 x Part 10 1 x Part 8 1 x M6x55 M6x55 Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 6...
- Page 8 Parts & Hardware Step 1 x Part 8 1 x Part 10 1 x Part 2 1 x Part 3 2 x Part 11 2 x Part 9 3 x M6x55 2 x Part 5 4 x M6x35 M6x55 M6x55 M6x55 M6x35 M6x35...
- Page 9 Parts & Hardware Step 4 x Part 6 1 x Part 7 1 x Part 4 1 x Part 3 2 x Part 5 1 x Part 2 1 x M6x35 4 x M6x55 1 x M6x60 Start with rear connection and work towards front.
- Page 10 Parts & Hardware Step 4 x Part 6 1 x Part 7 1 x Part 3 1 x Part 4 1 x Part 2 2 x Part 5 4 x M6x55 1 x M6x35 1 x M6x60 M6x55 M6x55 M6x55 Part 4 M6x55 M6x60...
- Page 11 Parts & Hardware Step 2 x Part 2 2 x Part 4 4 x Part 1 4 x M6x55 M6x55 Part 4 M6x55 Part 2 Part 4 M6x55 Part 1 Part 2 Part 1 Part 1 M6x55 Note: You may find it easier to complete Step 11 before beginning Step 7 since the top of the frame will be difficult to Part 1...
- Page 12 Parts & Hardware Step 6 x M6x55 4 x Part 3 6 x Part 1 M6x55 M6x55 M6x55 M6x55 M6x55 M6x55 Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 11...
- Page 13 Step Rear Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 12...
- Page 14 Parts & Hardware Step 20 x Pipe Clamps 40 x S2 - 1 1/4” Screws Attach clamps on left and right side of garden bed. Note: Pre-drill pilot holes to prevent splitting. Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 13...
- Page 15 Parts & Hardware Step 2x Protective Stripping Rolls Peel off film to reveal adhesive side of protective stripping. Cover top of Greenhouse Frame with protective stripping as shown below. Start at the bottom of Part 6 as shown. Protective stripping will prevent your frame from damaging the cover.
- Page 16 Note: To fit the Greenhouse Cover Step on the frame, you will need to open the doorway of the cover. *Greenhouse Cover is not actually rigid. Unzip inner flap and reach through to roll up roof vent. You may need a step ladder to reach the roof vents.
- Page 17 Parts & Hardware Step 2 x Clips 2 x 1 1/4” Pan Head Screws 2 x Washers Front of Unit Note: Do not pull the Greenhouse Cover down too tight when attaching the clips. Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 16...
- Page 18 Parts & Hardware Step 10 x Clips 10 x 1 1/4” Pan Head Screws 10 x Washers Right Side of Unit Left Side of Unit Rear of Unit Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 17...
- Page 19 Congratulations on assembling your 8x8 Garden in a Box Greenhouse Cover! We hope your experience constructing our 8x8 Garden in a Box Greenhouse Cover has been both positive and rewarding. We value your feedback and would like to hear back from you on how well we are doing in the following areas: 1.
