SYNERGEE SF2300 Series Manual

Power rack extension
Hide thumbs Also See for SF2300 Series:

Advertisement

Quick Links

Download this manual
POWER RACK EXTENSION
SF2300 SERIES

Advertisement

loading
Need help?

Need help?

Do you have a question about the SF2300 Series and is the answer not in the manual?

Questions and answers

Related Manuals for SYNERGEE SF2300 Series

Summary of Contents for SYNERGEE SF2300 Series

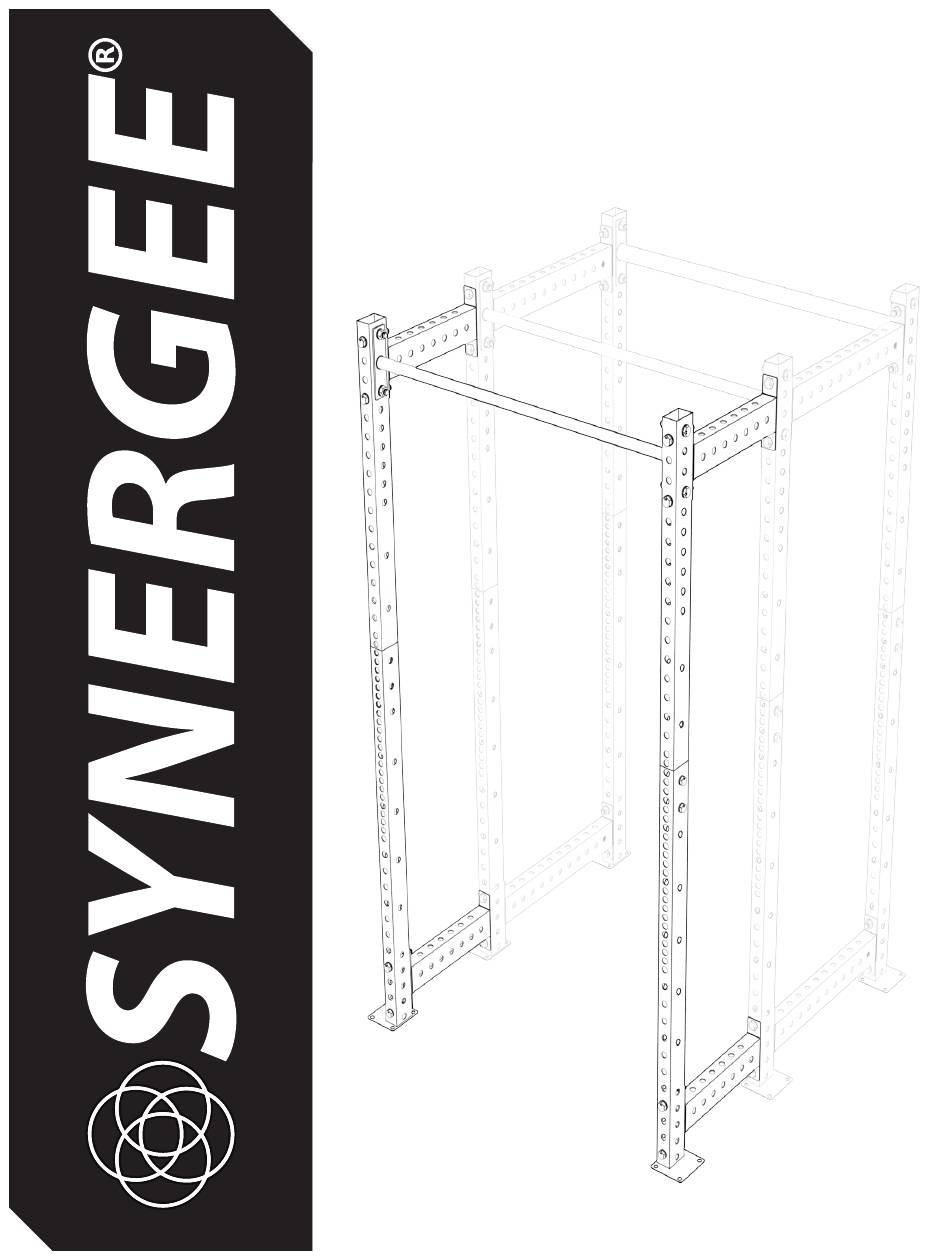

  • Page 1 POWER RACK EXTENSION SF2300 SERIES...
  • Page 2 PARTS LIST IF ANY PIECES ARE MISSING, PLEASE CONTACT US IMMEDIATELY: HELLO@SYNERGEEFITNESS.COM OR 1.855.217.7136 2300-01-1 2300-01-2 2300-01-3 2300-05 M14 WASHER M16 WASHER M16x110mm HEX M16x80mm HEX M14x30mm HEX M14x16mm HEX SCREW SCREW SCREW SCREW M16 NUT M6 EXPANSION SCREW PARTS DETERMINED BY PURCHASE: 16”...
  • Page 3 HARDWARE SIZING CHART STEPS M16x110 2A-2C HEX SCREW STEPS M16x80 4A-4C HEX SCREW STEPS M14x30 HEX SCREW STEPS M14x16 HEX SCREW WASHERS M14 WASHERS M16 WASHERS SF2300 POWER RACK...
  • Page 4 ASSEMBLY STEP PART GUIDE STEP: 1 PART NAME 2300-01-1 2300-01-2 M14 Washer M14x16mm Hex Screw SF2300 POWER RACK...
  • Page 5 ASSEMBLY STEP PART GUIDE STEP: 2A PART NAME 16” 2300-02 M16 Washer M16x110mm Hex Screw M16 Nut BOTTOM SF2300 POWER RACK...
  • Page 6 ASSEMBLY STEP PART GUIDE STEP: 2B PART NAME 24” 2300-03 M16 Washer M16x110mm Hex Screw M16 Nut BOTTOM SF2300 POWER RACK...
  • Page 7 ASSEMBLY STEP PART GUIDE STEP: 2C PART NAME 36” 2300-04 M16 Washer M16x110mm Hex Screw M16 Nut BOTTOM SF2300 POWER RACK...
  • Page 8 ASSEMBLY STEP PART GUIDE STEP: 3 PART NAME 2300-01-3 M14 Washer M14x30mm Hex Screw STEP 3A STEP 3B 10. 5. SF2300 POWER RACK...
  • Page 9 ASSEMBLY STEP PART GUIDE STEP: 4A PART NAME 16” 2300-05 M16 Washer M16x80mm Hex Screw M16 Nut SECURE FEET POINTING OUTWARDS 6. 11. SF2300 POWER RACK...
  • Page 10 ASSEMBLY STEP PART GUIDE STEP: 4B PART NAME 24” 2300-05 M16 Washer M16x80mm Hex Screw M16 Nut SECURE FEET POINTING OUTWARDS SF2300 POWER RACK...
  • Page 11 ASSEMBLY STEP PART GUIDE STEP: 4C PART NAME 36” 2300-05 M16 Washer M16x80mm Hex Screw M16 Nut SECURE FEET POINTING OUTWARDS 6. 11. SF2300 POWER RACK...
  • Page 12 ASSEMBLY STEP: 5 NOTICE SCREWS PROVIDED BY POWER RACK ARE USED TO ATTACH EXTENSION SF2300 POWER RACK...
  • Page 13 ASSEMBLY STEP PART GUIDE STEP: 6 PART NAME M6 Expansion Screw IMPORTANT ENSURE RACK IS LEVEL TO THE FLOOR BY MEASURING TOP AND BOTTOM SPACING IS EQUAL. SF2300 POWER RACK...
