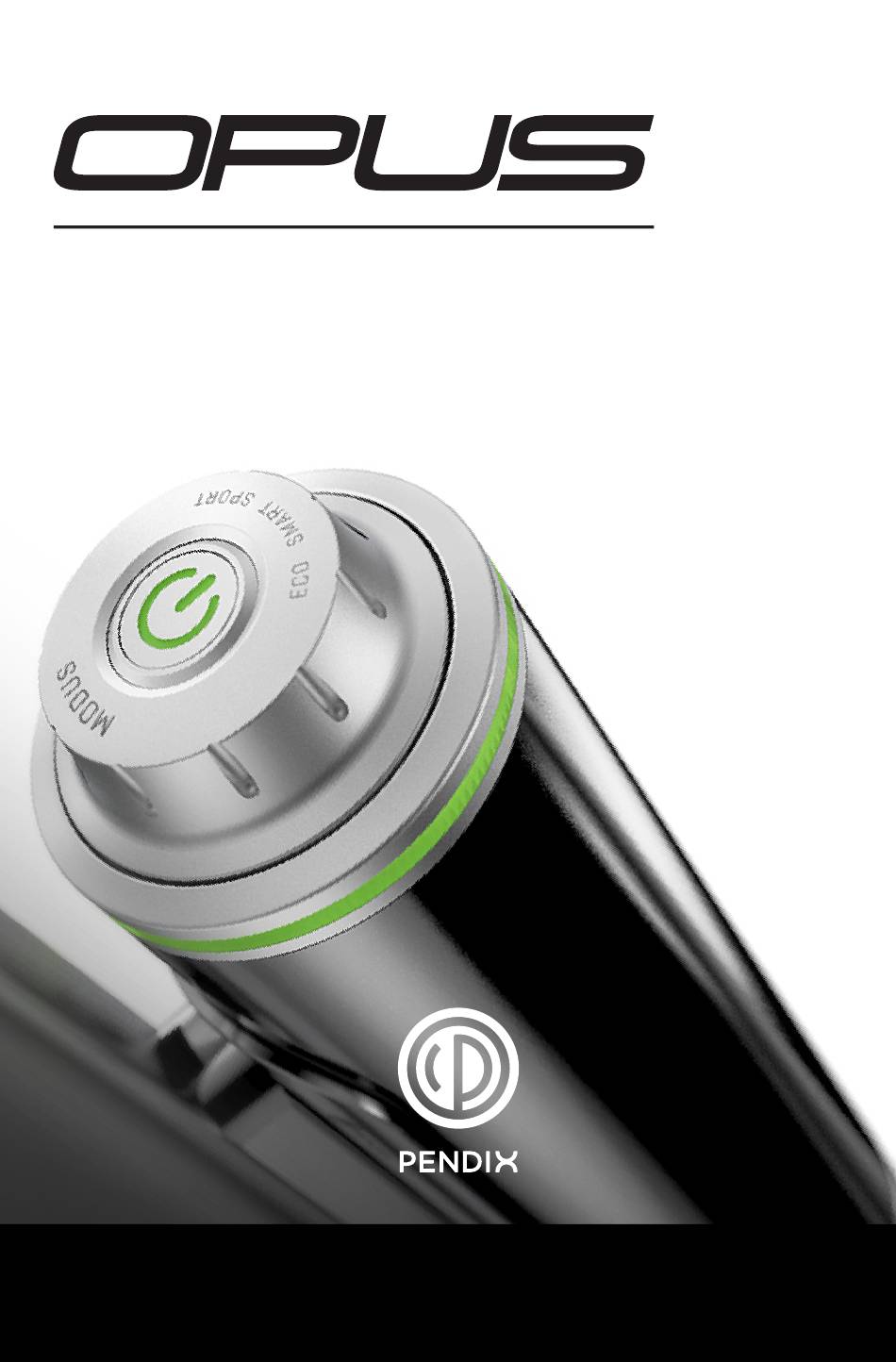

- Page 1 ELECTRIC QUICK START GUIDE...
- Page 2 It’s an electric bike with the most natural pedaling feeling in the world. It is simple and intuitive to use. The PENDIX motor is a com- pletely new experience; you’ll see, you will want to ride with it as much as possible.
- Page 3 CONNECTING / REMOVING THE BATTERY MAKE SURE THE BATTERY IS REMOVE BATTERY PRIOR TO FIRMLY ATTACHED BEFORE TRANSPORT AND STORE RIDING. SEPARATELY. CLIC! CONNECTING To position in the holder, align the battery with the 3 mounting lugs. Push the battery down and turn clockwise. There should be a clicking sound and the LED display should light up.
- Page 4 POWERING THE MOTOR ON /OFF The motor is activated by pushing the ON/OFF button. The LED display will show a continuous light with the color of the current charge level. Push the ON /OFF button twice if the battery is in its deep sleep state.
- Page 5 SETTING THE SUPPORT MODE Set the support mode by rotating the switch on the top of the battery. Choose one of the three modes by aligning it with the straight bar of the “POWER” icon. Maximum range cycling // 75% support level. SMART All around cycling // 150% support level.
-
Page 6: Battery Status Indicator
BATTERY STATUS INDICATOR RANGE Based on field testing, the confirmed ranges are as follows*: MAKE SURE TO HAVE A SUFFICIENT CHARGE BEFORE USING THE SYSTEM. 100 km 80 km 60 km 40 km 20 km 10 km 0 km SMART SPORT Approximate Maximum Distance (km) * Ranges may vary due to load, road and weather conditions. - Page 7 CONNECTING / REMOVING FROM CHARGING DOCK PRESCRIBED OPERATING TEMPS ARE BETWEEN -10°C / +50°C (14°F / 122°F). DO NOT CHARGE A COLD BATTERY; ALLOW IT TO HEAT BACK UP FIRST. CONNECTING To install the battery on the dock, align the dots from both of the items and the magnetic plug will attract it to the charging station.
-
Page 8: Additional Features
ADDITIONAL FEATURES 4 SECONDS BRIGHTNESS OF THE LED DISPLAY While not operating the bicycle, select the ECO mode. Push and hold the ON/OFF button down for 4 seconds. Release the button when the desired brightness level is shown. 4 SECONDS FLASHLIGHT MODE To use as a light source when not installed on the bicycle, select the SPORT mode. - Page 9 CONTACT US HAVE ANY QUESTIONS? Contact us at info@opusbike.com or visit our website. OPUSBIKE.COM...
