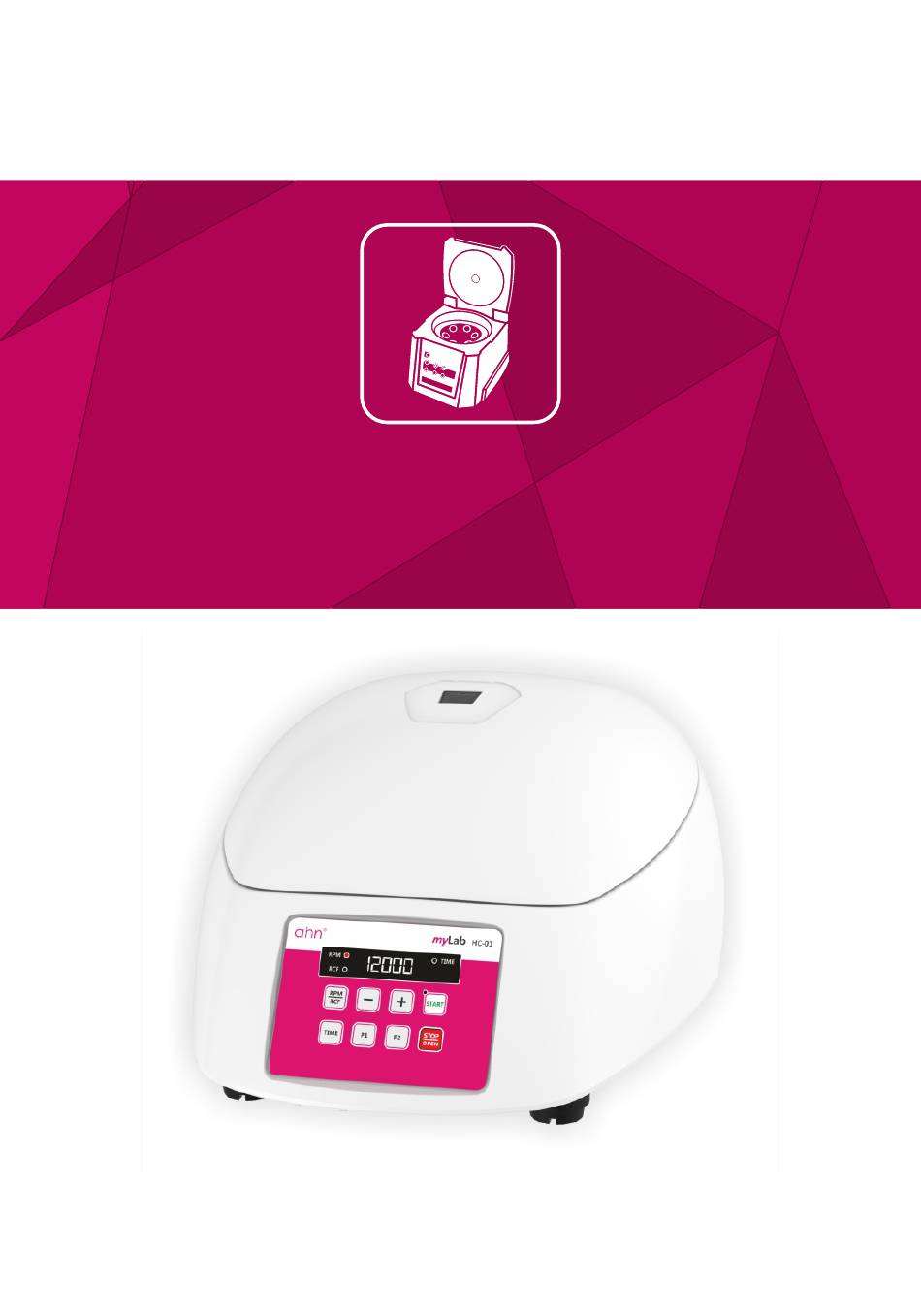

- Page 1 15000 rpm 12-place microcentrifuge AHN myLab MC-02 Instruction Manual...
-
Page 3: Table Of Contents
CONTENTS 1. INTRODUCTION 2. INTENDED USE 3. SYMBOL 4. FEATURES 5. TECHNICAL SPECIFICATIONS 6. STANDARD ACCESSORIES 7. ROTOR AND REDUCED ADAPTORS 8. SAFETY PRECAUTIONS 9. INSTALLATION 10. ROTOR INSTALLATION 11. BALANCING THE ROTOR 12. OPERATION 13. TROUBLESHOOTING 14. MAINTENANCE AND CLEANING 15. -
Page 5: Introduction
1. INTRODUCTION This manual provides important safety information for this centrifuge. It should be kept near the centrifuge for quick & easy reference. This centrifuge is equipped with maintenance free brushless DC motor drive with microprocessor controlled and a safety feature of imbalance detection. The centrifuge is designed for high speed spin downs applications. -
Page 6: Standard Accessories
5. TECHNICAL SPECIFICATION Speed Steps ± 100 RPM Noise Level <60 dB (A) Ambient Temperature 5-40°C Permissible Relative Humidity ≤80% Run Time 1 to 99 minutes & infinite mode Acceleration time ≤ 65 Seconds Deceleration time ≤ 55 Seconds Size (L x W x H) 190 x 120 x 270 mm Weight 2.450 kg approx (with rotor) -
Page 7: Safety Precautions
7. ROTOR AND REDUCED ADAPTORS PCR strip rotor 0.1/0.2ml PCR strip (Optional) Max. Speed 15000 Max. RCF 13080 NOTE: Always use recommended accessories for best result & product safety. 8. SAFETY PRECAUTIONS Read all safety & usage information provided in this manual carefully before using the device. •... -
Page 8: Installation
8. SAFETY PRECAUTIONS capacity. Do not use liquid with density higher than 1.2g/ml for full load operation. • Do not lean on the equipment. It may damage the equipment or the harm the operator. • When moving the centrifuge from a cold room to a normal room, run the centrifuge for 30 minutes beforehand in the cold room to avoid condensation. -
Page 9: Connecting Power Adaptor
9. INSTALLATION Must be used on Flat Must have Clearance of & Non - Slippery Surface 20 cm from all 4 sides 9.1 CONNECTING POWER ADAPTOR 1. Connect one side of power adaptor to rear side of centrifuge and other to supply as shown in the figure below. -
Page 10: Rotor Installation
10. ROTOR INSTALLATION T - Allen Key To Loosen Rotor Motor Shaft Display & keypad The rotor of the centrifuge is pre-installed. In case of any spillage, remove the rotor as shown in the above figure to clean the rotor and its chamber thoroughly. 10.1 REMOVING ROTOR 1. -
Page 11: Operation
11. BALANCING THE ROTOR PROPER BALANCED ROTOR IMBALANCED ROTOR 12. OPERATION After properly installing the centrifuge, switch ON the centrifuge from the rear side by pressing the power switch. The lid status will be seen in the display. If the lid is open, the display will show “Lid” and if it is closed, the set RPM will be displayed. Please ensure that the Tube Holders are inside the rotor. - Page 12 12. OPERATION 12.1 START After setting parameters such as speed & timer as instructed below press START button to run the machine. 12.2 STOP/OPEN LID To stop the machine at any point of time press “STOP” button. The lid will open automatically.
-
Page 13: Imbalance Detection
12. OPERATION 12.8 OPENING THE CENTRIFUGE LID IN CASE OF POWER FAILURE Disconnect the centrifuge from the main supply. Wait until the rotor comes to a standstill (this may take some time). Once the rotor has stopped, use the T-allene key from bottom side of the unit, rotate the T-allen key in counterclockwise direction as indicated in above figure this will open the centrifuge lid in case of emergency lid opening. - Page 14 13. TROUBLESHOOTING ERROR PROBLEM SOLUTION Check power & properly plugin No main power power adaptor at both ends connection No display Check the main fuse of Power failure the lab. Improper connection Connect adaptor properly Lid is closed correctly Close lid correctly Lid open Error with lid closing Contact service representative...
-
Page 15: Maintenance And Cleaning
13. TROUBLESHOOTING Turn OFF the centrifuge, Check & fit the rotor properly & turn Err 52 Rotor is Stuck ON the centrifuge Remove cable and connect Power tripping Cable not fit properly properly Turing ON centrifuge Maintain 3 seconds gap Between Last run memory immediately after switch OFF and switching ON... -
Page 16: Warranty Statement
15. WARRANTY STATEMENT This product is warranted to be free from defects in material and workmanship for a period of two (2) years from date of purchase. Your product will be duly repaired upon prompt notification in compliance with the following conditions : This warranty is valid only if the product is used for its intended purpose and within the guidelines specified in this instruction manual. -
Page 17: Product Disposal
16. PRODUCT DISPOSAL In case the product is to be disposed of, the relevant legal regulations are to be observed. Information on the disposal of electrical and electronic devices in the European Community. The disposal of electrical devices is regulated within the European Community by national regulations based on EU Directive 2012/19/EU on waste electrical and electronic equipment (WEEE). - Page 20 ® AHN Biotechnologie GmbH Uthleber Weg 14 D-99734 Nordhausen Germany Phone: +49(0)3631/65242-0 Fax: +49(0)3631/65242-90 E-Mail: info@ahn-bio.com www.ahn-bio.com © 2020 AHN Biotechnologie GmbH...
