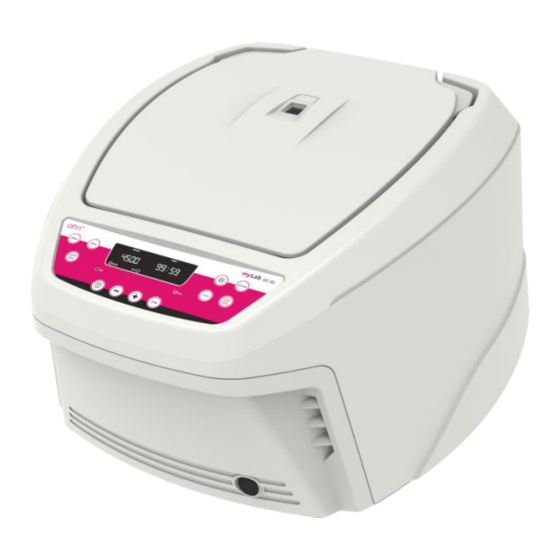

- Page 1 Universal Centrifuge 4500 rpm AHN myLab UC-01 Instruction Manual...
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION INTENDED USE SALIENT FEATURES STANDARD ACCESSORIES TECHNICAL SPECIFICATIONS SAFETY PRECAUTIONS INSTALLATION Loca on and Moun ng Ÿ USER INTERFACE AND DISPLAY OPERATING THE CENTRIFUGE Switch on the Centrifuge Ÿ Speed Se ng Ÿ Time Se ng Ÿ Acc/Dcc Ÿ... -
Page 5: Introduction
1. INTRODUCTION This centrifuge is equipped with a maintenance free drive, a large display & simple interface for efficient opera on for daily lab usage. The programmable centrifuge can deliver up to 4500 RPM and can accommodates different types of rotors. It features various programmable mode to save me &... -
Page 6: Safety Precautions
Speed Accuracy ± 100 rpm Run Time 1 min to 99 mins & infinite mode 30 seconds Min. Acceleration Time Min. Deceleration Time 30 seconds Noise Level <65 dB Ambient Temperature 5 - 40°C Permissible Relative Moisture <80% Size (L x B x H) 475 x 585 x 325 mm Weight 23 Kg (without rotor) -
Page 7: Installation
poten al hazardous material within the clearance area/envelope. Equipment if used in any manner not specified in this manual or by the Ÿ manufacturer can result in the lapse of the product warranty. Repairs must only be performed by authorized service technician. Ÿ... -
Page 8: User Interface And Display
8. USER INTERFACE & DISPLAY SPEED TIME PROG PEdit ROTOR STOP QUICK START SPIN OPEN TIME Item Button Name Function Single press, motor will start as per selected rpm and time if lid closed. Start button works only if lid closed. Start Motor start or stop, indicates with LED Single press stop/open button, will stop motor as per... -
Page 9: Operating The Centrifuge
Press PRG button to select the program from 1-99. The different parameters can be set in each program for quick selection. Press hold for immediate centrifugation up to last set Quick Spin 9. OPERATING THE CENTRIFUGE SWITCH ON THE CENTRIFUGE A er connec ng the power cord. -
Page 10: Rotor
PRG: Press PRG bu on to select the program from 1-99. The different parameters can be set in each programm for quick selec on. To set parameters in each program follow the parameters (Speed, me & Acc/Dcc) as described above. To select from programs press using +/- bu on for increment or decrement. -
Page 11: Start & Stop
LC01-L30-134 Rotor 9 6 x 50 ml 4500 2644 LC01-L30-137 Rotor 10 4500 2852 24 x 15 ml LC01-L30-131 Rotor 11 16 x 15 ml 4500 3144 LC01-L30-132 Rotor 12 4500 3144 12 x 15 ml LC01-L30-133 Rotor 13 8 x 15 ml 4500 2644 START &... - Page 12 ERROR PROBLEM SOLUTION No main power Power check & proper plug-in of connection. mains cable at both ends. No display Power failure Check the mains fuse of the lab. Improper connection. Connect adaptor properly. Lid not closed correctly. Close lid correctly. Error with lid closing and Contact service.
-
Page 13: Warranty Statement
• Maintain 3 seconds gap between switch OFF and switch ON. Instant ON-OFF can lead to a reset, erasing last run memory. • If motor gets hot due to which there will be fluctua on in speed value then allow centrifuge to get cool for atleast 30 minutes. Do not do any opera on for 30 minutes. -
Page 14: Product Disposal
observed. 13. PRODUCT DISPOSAL Informa on on the disposal of electrical and electronic devices in the European Community The disposal of electrical devices is regulated within the European Community by na onal regula ons based on EU Direc ve 2012/19/EU on waste electrical and electronic equipment (WEEE). - Page 16 ® AHN Biotechnologie GmbH Uthleber Weg 14 D-99734 Nordhausen Germany Phone: +49(0)3631/65242-0 Fax: +49(0)3631/65242-90 E-Mail: info@cappahn.com www.ahn-bio.de © 2020 AHN Biotechnologie GmbH...
